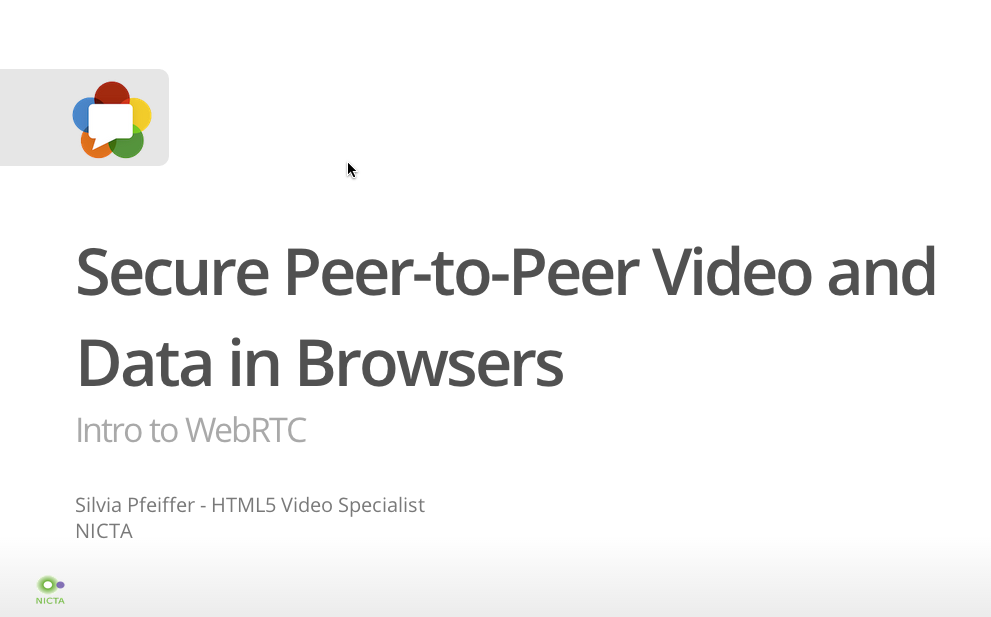

At the end of July, I gave a presentation about WebRTC and rtc.io at the WDCNZ Web Dev Conference in beautiful Wellington, NZ.

Putting that talk together reminded me about how far we have come in the last year both with the progress of WebRTC, its standards and browser implementations, as well as with our own small team at NICTA and our rtc.io WebRTC toolbox.

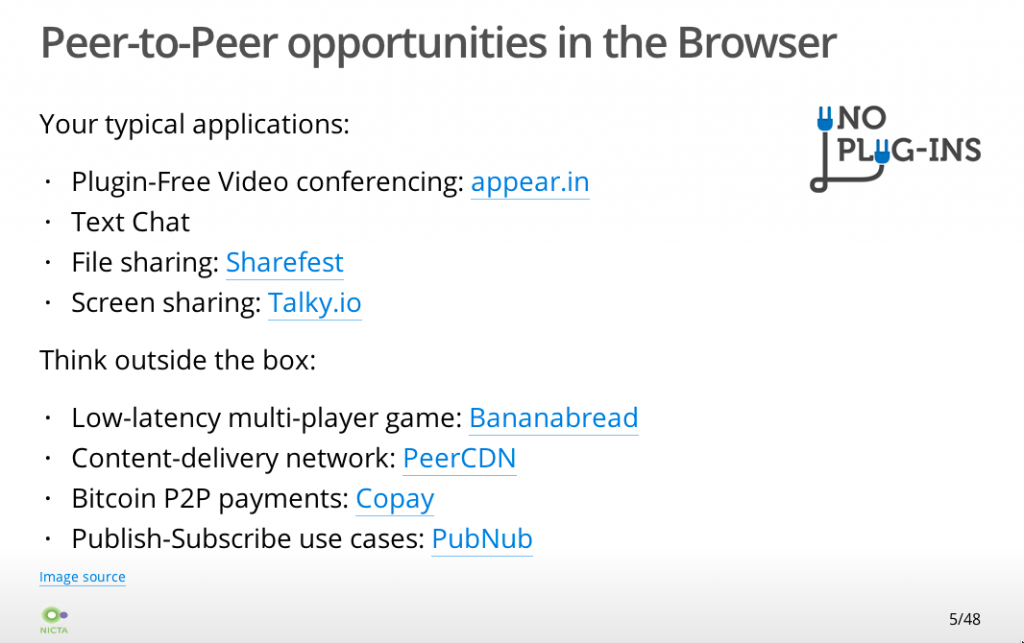

One of the most exciting opportunities is still under-exploited: the data channel. When I talked about the above slide and pointed out Bananabread, PeerCDN, Copay, PubNub and also later WebTorrent, that’s where I really started to get Web Developers excited about WebRTC. They can totally see the shift in paradigm to peer-to-peer applications away from the Server-based architecture of the current Web.

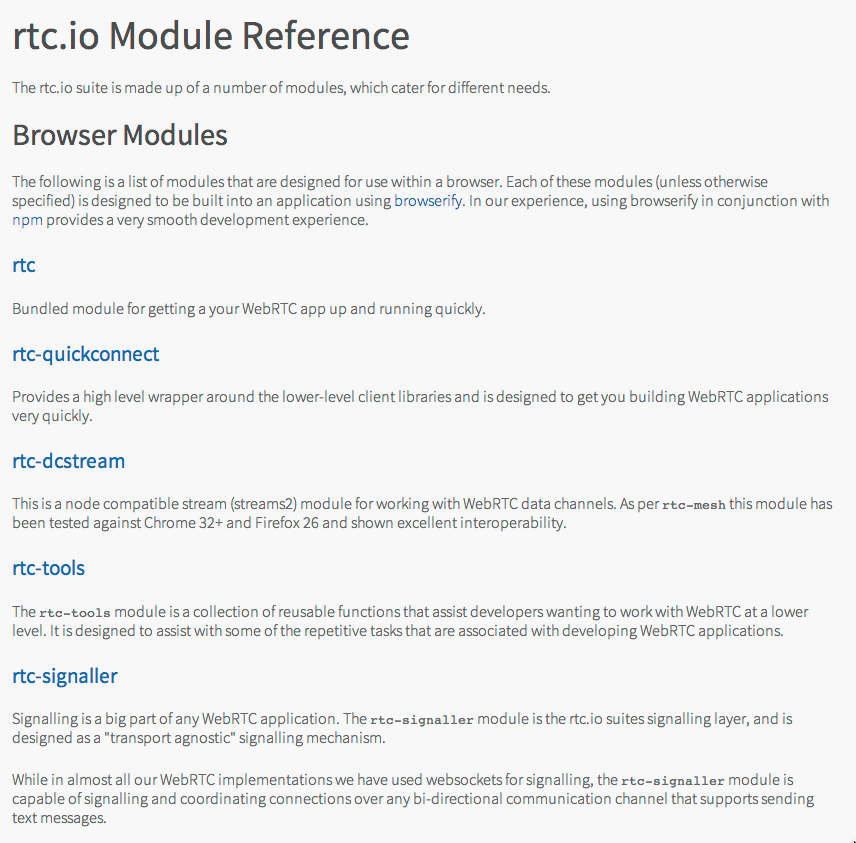

Many were also excited to learn more about rtc.io, our own npm nodules based approach to a JavaScript API for WebRTC.

We believe that the World of JavaScript has reached a critical stage where we can no longer code by copy-and-paste of JavaScript snippets from all over the Web universe. We need a more structured module reuse approach to JavaScript. Node with JavaScript on the back end really only motivated this development. However, we’ve needed it for a long time on the front end, too. One big library (jquery anyone?) that does everything that anyone could ever need on the front-end isn’t going to work any longer with the amount of functionality that we now expect Web applications to support. Just look at the insane growth of npm compared to other module collections:

Packages per day across popular platforms (Shamelessly copied from: nodejitsu.com)

For those that - like myself - found it difficult to understand how to tap into the sheer power of npm modules as a font end developer, simply use browserify. npm modules are prepared following the CommonJS module definition spec. Browserify works natively with that and “compiles” all the dependencies of a npm modules into a single bundle.js file that you can use on the front end through a script tag as you would in plain HTML. You can learn more about browserify and module definitions and how to use browserify.

For those of you not quite ready to dive in with browserify we have prepared prepared the rtc module, which exposes the most commonly used packages of rtc.io through an “RTC” object from a browserified JavaScript file. You can also directly download the JavaScript file from GitHub.

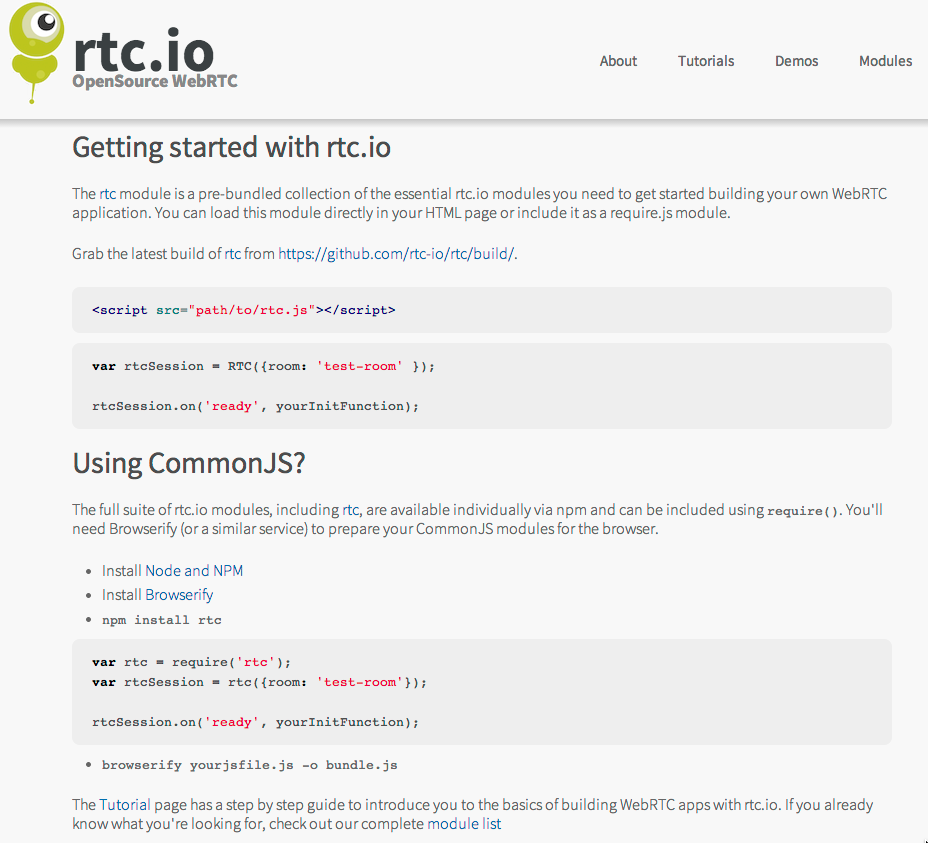

Using rtc.io rtc JS library

So, I hope you enjoy rtc.io and I hope you enjoy my slides and large collection of interesting links inside the deck, and of course: enjoy WebRTC! Thanks to Damon, JEeff, Cathy, Pete and Nathan - you’re an awesome team!

On a side note, I was really excited to meet the author of browserify, James Halliday (@substack) at WDCNZ, whose talk on “building your own tools” seemed to take me back to the times where everything was done on the command-line. I think James is using Node and the Web in a way that would appeal to a Linux Kernel developer. Fascinating!!

deck.js is one of the new HTML5-based presentation tools. It’s simple to use, in particular for your basic, every-day presentation needs. You can also create more complex slides with animations etc. if you know your HTML and CSS.

Yesterday at linux.conf.au (LCA), I gave a presentation using deck.js. But I didn’t give it from the lectern in the room in Perth where LCA is being held - instead I gave it from the comfort of my home office at the other end of the country.

I used my laptop with in-built webcam and my Chrome browser to give this presentation. Beforehand, I had uploaded the presentation to a Web server and shared the link with the organiser of my speaker track, who was on site in Perth and had set up his laptop in the same fashion as myself. His screen was projecting the Chrome tab in which my slides were loaded and he had hooked up the audio output of his laptop to the room speaker system. His camera was pointed at the audience so I could see their reaction.

I loaded a slide master URL:
http://html5videoguide.net/presentations/lca_2014_webrtc/?master
and the room loaded the URL without query string:
http://html5videoguide.net/presentations/lca_2014_webrtc/.

Then I gave my talk exactly as I would if I was in the same room. Yes, it felt exactly as though I was there, including nervousness and audience feedback.

How did we do that? WebRTC (Web Real-time Communication) to the rescue, of course!

We used one of the modules of the rtc.io project called rtc-glue to add the video conferencing functionality and the slide navigation to deck.js. It was actually really really simple!

Here are the few things we added to deck.js to make it work:

• Code added to index.html to make the video connection work:

  <meta name="rtc-signalhost" content="http://rtc.io/switchboard/">
  <meta name="rtc-room" content="lca2014">
  ...
  <video id="localV" rtc-capture="camera" muted></video>
  <video id="peerV" rtc-peer rtc-stream="localV"></video>
  ...
  <script src="glue.js"></script>
  <script>
  glue.config.iceServers = [{ url: 'stun:stun.l.google.com:19302' }];
  </script>

  The iceServers config is required to punch through firewalls - you may also need a TURN server. Note that you need a signalling server - in our case we used http://rtc.io/switchboard/, which runs the code from rtc-switchboard.

• Added glue.js library to deck.js:

  Downloaded from https://raw.github.com/rtc-io/rtc-glue/master/dist/glue.js into the source directory of deck.js.

• Code added to index.html to synchronize slide navigation:

  glue.events.once('connected', function(signaller) {
    if (location.search.slice(1) !== '') {
      $(document).bind('deck.change', function(evt, from, to) {
        signaller.send('/slide', {
          idx: to,
          sender: signaller.id
        });
      });
    }
    signaller.on('slide', function(data) {
      console.log('received notification to change to slide: ', data.idx);
      $.deck('go', data.idx);
    });
  });

  This simply registers a callback on the slide master end to send a slide position message to the room end, and a callback on the room end that initiates the slide navigation.

And that’s it!

You can find my slide deck on GitHub.

Feel free to write your own slides in this manner - I would love to have more users of this approach. It should also be fairly simple to extend this to share pointer positions, so you can actually use the mouse pointer to point to things on your slides remotely. Would love to hear your experiences!

Note that the slides are actually a talk about the rtc.io project, so if you want to find out more about these modules and what other things you can do, read the slide deck or watch the talk when it has been published by LCA.

Many thanks to Damon Oehlman for his help in getting this working.

BTW: somebody should really fix that print style sheet for deck.js - I’m only ever getting the one slide that is currently showing. ;-)

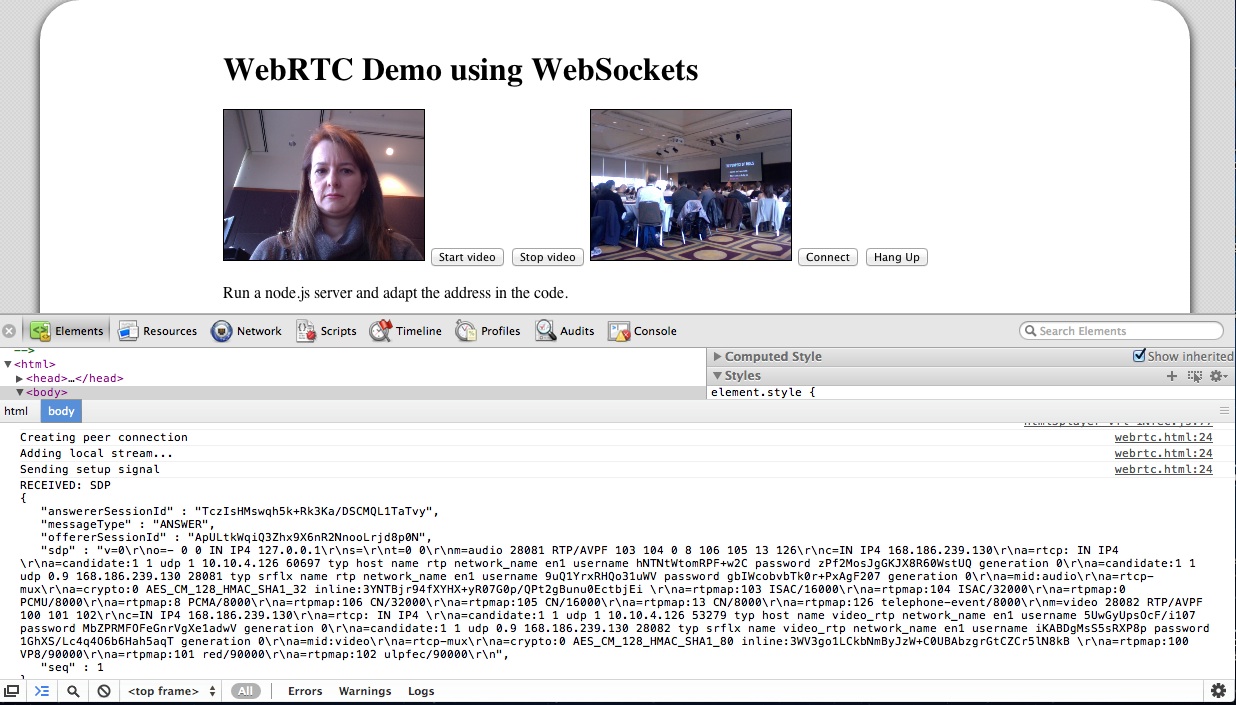

Six months ago I experimented with Web sockets for WebRTC and the early implementations of PeerConnection in Chrome. Last week I gave a presentation about WebRTC at Linux.conf.au, so it was time to update that codebase.

I decided to use socket.io for the signalling following the idea of Luc, which made the server code even smaller and reduced it to a mere reflector:

 var app = require('http').createServer().listen(1337);
 var io = require('socket.io').listen(app);

 io.sockets.on('connection', function(socket) {
         socket.on('message', function(message) {
         socket.broadcast.emit('message', message);
     });
 });

Then I turned to the client code. I was surprised to see the massive changes that PeerConnection has gone through. Check out my slide deck to see the different components that are now necessary to create a PeerConnection.

I was particularly surprised to see the SDP object now fully exposed to JavaScript and thus the ability to manipulate it directly rather than through some API. This allows Web developers to manipulate the type of session that they are asking the browsers to set up. I can imaging e.g. if they have support for a video codec in JavaScript that the browser does not provide built-in, they can add that codec to the set of choices to be offered to the peer. While it is flexible, I am concerned if this might create more problems than it solves. I guess we’ll have to wait and see.

I was also surprised by the need to use ICE, even though in my experiment I got away with an empty list of ICE servers - the ICE messages just got exchanged through the socket.io server. I am not sure whether this is a bug, but I was very happy about it because it meant I could run the whole demo on a completely separate network from the Internet.

The most exciting news since my talk is that Mozilla and Google have managed to get a PeerConnection working between Firefox and Chrome - this is the first cross-browser video conference call without a plugin! The code differences are minor.

Since the specification of the WebRTC API and of the MediaStream API are now official Working Drafts at the W3C, I expect other browsers will follow. I am also looking forward to the possibilities of:

• multi-peer video conferencing like the efforts around webrtc.io,
• the media stream recording API,
• and the peer-to-peer data API.

The best places to learn about the latest possibilities of WebRTC are webrtc.org and the W3C WebRTC WG. code.google.com has open source code that continues to be updated to the latest released and interoperable features in browsers.

The video of my talk is in the process of being published. There is a MP4 version on the Linux Australia mirror server, but I expect it will be published properly soon. I will update the blog post when that happens.

A bit over a week ago I gave a presentation at Web Directions Code 2012 in Melbourne. Maxine and John asked me to speak about something related to HTML5 video, so I went for the new shiny: WebRTC - real-time communication in the browser.

Presentation slides

I only had 20 min, so I had to make it tight. I wanted to show off video conferencing without special plugins in Google Chrome in just a few lines of code, as is the promise of WebRTC. To a large extent, I achieved this. But I made some interesting discoveries along the way. Demos are in the slide deck.

UPDATE: Opera 12 has been released with WebRTC support.

Housekeeping: if you want to replicate what I have done, you need to install a Google Chrome Web Browser 19+. Then make sure you go to chrome://flags and activate the MediaStream and PeerConnection experiment(s). Restart your browser and now you can experiment with this feature. Big warning up-front: it’s not production-ready, since there are still changes happening to the spec and there is no compatible implementation by another browser yet.

Here is a brief summary of the steps involved to set up video conferencing in your browser:

1. Set up a video element each for the local and the remote video stream.
2. Grab the local camera and stream it to the first video element.
3. (*) Establish a connection to another person running the same Web page.
4. Send the local camera stream on that peer connection.
5. Accept the remote camera stream into the second video element.

Now, the most difficult part of all of this - believe it or not - is the signalling part that is required to build the peer connection (marked with (*)). Initially I wanted to run completely without a server and just enter the remote’s IP address to establish the connection. This is, however, not a functionality that the PeerConnection object provides [might this be something to add to the spec?].

So, you need a server known to both parties that can provide for the handshake to set up the connection. All the examples that I have seen, such as https://apprtc.appspot.com/, use a channel management server on Google’s appengine. I wanted it all working with HTML5 technology, so I decided to use a Web Socket server instead.

I implemented my Web Socket server using node.js (code of websocket server). The video conferencing demo is in the slide deck in an iframe - you can also use the stand-alone html page. Works like a treat.

While it is still using Google’s STUN server to get through NAT, the messaging for setting up the connection is running completely through the Web Socket server. The messages that get exchanged are plain SDP message packets with a session ID. There are OFFER, ANSWER, and OK packets exchanged for each streaming direction. You can see some of it in the below image:

I’m not running a public WebSocket server, so you won’t be able to see this part of the presentation working. But the local loopback video should work.

At the conference, it all went without a hitch (while the wireless played along). I believe you have to host the WebSocket server on the same machine as the Web page, otherwise it won’t work for security reasons.

A whole new world of opportunities lies out there when we get the ability to set up video conferencing on every Web page - scary and exciting at the same time!

In January I attended the annual Australian Linux and Open Source conference (LCA). But since I was sick all of January and had a lot to catch up on, I never got around to sharing all the talks that I gave during that time.

Drupal Down Under

It started with a talk at Drupal Down Under, which happened the weekend before LCA. I gave a talk titled “HTML5 video specifications” (video, slides).

I spoke about the video and audio element in HTML5, how to provide fallback content, how to encode content, how to control them from JavaScript, and briefly about Drupal video modules, though the next presentation provided much more insight into those. I explained how to make the HTML5 media elements accessible, including accessible controls, captions, audio descriptions, and the new WebVTT file format. I ran out of time to introduce the last section of my slides which are on WebRTC.

Linux.conf.au

On the first day of LCA I gave a talk both in the Multimedia Miniconf and the Browser Miniconf.

Browser Miniconf

In the Browser Miniconf I talked about “Web Standardisation – how browser vendors collaborate, or not” (slides). Maybe the most interesting part about this was that I tried out a new slide “deck” tool called impress.js. I’m not yet sure if I like it but it worked well for this talk, in which I explained how the HTML5 spec is authored and who has input.

I also sat on a panel of browser developers in the Browser Miniconf (more as a standards than as a browser developer, but that’s close enough). We were asked about all kinds of latest developments in HTML5, CSS3, and media standards in the browser.

Multimedia Miniconf

In the Multimedia Miniconf I gave a “HTML5 media accessibility update” (slides). I talked about the accessibility problems of Flash, how native HTML5 video players will be better, about accessible video controls, captions, navigation chapters, audio descriptions, and WebVTT. I also provided a demo of how to synchronize multiple video elements using a polyfill for the multitrack API.

I also provided an update on HTTP adaptive streaming APIs as a lightning talk in the Multimedia Miniconf. I used an extract of the Drupal conference slides for it.

Main conference

Finally, and most importantly, Alice Boxhall and myself gave a talk in the main linux.conf.au titled “Developing Accessible Web Apps - how hard can it be?” (video, slides). I spoke about a process that you can follow to make your Web applications accessible. I’m writing a separate blog post to explain this in more detail. In her part, Alice dug below the surface of browsers to explain how the accessibility markup that Web developers provide is transformed into data structures that are handed to accessibility technologies.

The Open Video Conference that took place on 10-12 September was so overwhelming, I’ve still not been able to catch my breath! It was a dense three days for me, even though I only focused on the technology sessions of the conference and utterly missed out on all the policy and content discussions.

Roughly 60 people participated in the Open Media Software (OMS) developers track. This was an amazing group of people capable and willing to shape the future of video technology on the Web:

• HTML5 video developers from Apple, Google, Opera, and Mozilla (though we missed the NZ folks),
• codec developers from WebM, Xiph, and MPEG,
• Web video developers from YouTube, JWPlayer, Kaltura, VideoJS, PopcornJS, etc.,
• content publishers from Wikipedia, Internet Archive, YouTube, Netflix, etc.,
• open source tool developers from FFmpeg, gstreamer, flumotion, VideoLAN, PiTiVi, etc,
• and many more.

To provide a summary of all the discussions would be impossible, so I just want to share the key take-aways that I had from the main sessions.

WebRTC: Realtime Communications and HTML5

Tim Terriberry (Mozilla), Serge Lachapelle (Google) and Ethan Hugg (CISCO) moderated this session together (slides). There are activities both at the W3C and at IETF - the ones at IETF are supposed to focus on protocols, while the W3C ones on HTML5 extensions.

The current proposal of a PeerConnection API has been implemented in WebKit/Chrome as open source. It is expected that Firefox will have an add-on by Q1 next year. It enables video conferencing, including media capture, media encoding, signal processing (echo cancellation etc), secure transmission, and a data stream exchange.

Current discussions are around the signalling protocol and whether SIP needs to be required by the standard. Further, the codec question is under discussion with a question whether to mandate VP8 and Opus, since transcoding gateways are not desirable. Another question is how to measure the quality of the connection and how to report errors so as to allow adaptation.

What always amazes me around RTC is the sheer number of specialised protocols that seem to be required to implement this. WebRTC does not disappoint: in fact, the question was asked whether there could be a lighter alternative than to re-use dozens of years of protocol development - is it over-engineered? Can desktop players connect to a WebRTC session?

We are already in a second or third revision of this part of the HTML5 specification and yet it seems the requirements are still being collected. I’m quietly confident that everything is done to make the lives of the Web developer easier, but it sure looks like a huge task.

The Missing Link: Flash to HTML5

Zohar Babin (Kaltura) and myself moderated this session and I must admit that this session was the biggest eye-opener for me amongst all the sessions. There was a large number of Flash developers present in the room and that was great, because sometimes we just don’t listen enough to lessons learnt in the past.

This session gave me one of those aha-moments: it the form of the Flash appendBytes() API function.

The appendBytes() function allows a Flash developer to take a byteArray out of a connected video resource and do something with it - such as feed it to a video for display. When I heard that Web developers want that functionality for JavaScript and the video element, too, I instinctively rejected the idea wondering why on earth would a Web developer want to touch encoded video bytes - why not leave that to the browser.

But as it turns out, this is actually a really powerful enabler of functionality. For example, you can use it to:

• display mid-roll video ads as part of the same video element,
• sequence playlists of videos into the same video element,
• implement DVR functionality (high-speed seeking),
• do mash-ups,
• do video editing,
• adaptive streaming.

This totally blew my mind and I am now completely supportive of having such a function in HTML5. Together with media fragment URIs you could even leave all the header download management for resources to the Web browser and just request time ranges from a video through an appendBytes() function. This would be easier on the Web developer than having to deal with byte ranges and making sure that appropriate decoding pipelines are set up.

Standards for Video Accessibility

Philip Jagenstedt (Opera) and myself moderated this session. We focused on the HTML5 track element and the WebVTT file format. Many issues were identified that will still require work.

One particular topic was to find a standard means of rendering the UI for caption, subtitle, und description selection. For example, what icons should be used to indicate that subtitles or captions are available. While this is not part of the HTML5 specification, it’s still important to get this right across browsers since otherwise users will get confused with diverging interfaces.

Chaptering was discussed and a particular need to allow URLs to directly point at chapters was expressed. I suggested the use of named Media Fragment URLs.

The use of WebVTT for descriptions for the blind was also discussed. A suggestion was made to use the voice tag to allow for “styling” (i.e. selection) of the screen reader voice.

Finally, multitrack audio or video resources were also discussed and the @mediagroup attribute was explained. A question about how to identify the language used in different alternative dubs was asked. This is an issue because @srclang is not on audio or video, only on text, so it’s a missing feature for the multitrack API.

Beyond this session, there was also a breakout session on WebVTT and the track element. As a consequence, a number of bugs were registered in the W3C bug tracker.

WebM: Testing, Metrics and New features

This session was moderated by John Luther and John Koleszar, both of the WebM Project. They started off with a presentation on current work on WebM, which includes quality testing and improvements, and encoder speed improvement. Then they moved on to questions about how to involve the community more.

The community criticised that communication of what is happening around WebM is very scarce. More sharing of information was requested, including a move to using open Google+ hangouts instead of Google internal video conferences. More use of the public bug tracker can also help include the community better.

Another pain point of the community was that code is introduced and removed without much feedback. It was requested to introduce a peer review process. Also it was requested that example code snippets are published when new features are announced so others can replicate the claims.

This all indicates to me that the WebM project is increasingly more open, but that there is still a lot to learn.

Standards for HTTP Adaptive Streaming

This session was moderated by Frank Galligan and Aaron Colwell (Google), and Mark Watson (Netflix).

Mark started off by giving us an introduction to MPEG DASH, the MPEG file format for HTTP adaptive streaming. MPEG has just finalized the format and he was able to show us some examples. DASH is XML-based and thus rather verbose. It is covering all eventualities of what parameters could be switched during transmissions, which makes it very broad. These include trick modes e.g. for fast forwarding, 3D, multi-view and multitrack content.

MPEG have defined profiles - one for live streaming which requires chunking of the files on the server, and one for on-demand which requires keyframe alignment of the files. There are clear specifications for how to do these with MPEG. Such profiles would need to be created for WebM and Ogg Theora, too, to make DASH universally applicable.

Further, the Web case needs a more restrictive adaptation approach, since the video element’s API is already accounting for some of the features that DASH provides for desktop applications. So, a Web-specific profile of DASH would be required.

Then Aaron introduced us to the MediaSource API and in particular the webkitSourceAppend() extension that he has been experimenting with. It is essentially an implementation of the appendBytes() function of Flash, which the Web developers had been asking for just a few sessions earlier. This was likely the biggest announcement of OVC, alas a quiet and technically-focused one.

Aaron explained that he had been trying to find a way to implement HTTP adaptive streaming into WebKit in a way in which it could be standardised. While doing so, he also came across other requirements around such chunked video handling, in particular around dynamic ad insertion, live streaming, DVR functionality (fast forward), constraint video editing, and mashups. While trying to sort out all these requirements, it became clear that it would be very difficult to implement strategies for stream switching, buffering and delivery of video chunks into the browser when so many different and likely contradictory requirements exist. Also, once an approach is implemented and specified for the browser, it becomes very difficult to innovate on it.

Instead, the easiest way to solve it right now and learn about what would be necessary to implement into the browser would be to actually allow Web developers to queue up a chunk of encoded video into a video element for decoding and display. Thus, the webkitSourceAppend() function was born (specification).

The proposed extension to the HTMLMediaElement is as follows:

partial interface HTMLMediaElement {
  // URL passed to src attribute to enable the media source logic.
  readonly attribute [URL] DOMString webkitMediaSourceURL;

  bool webkitSourceAppend(in Uint8Array data);

  // end of stream status codes.
  const unsigned short EOS_NO_ERROR = 0;
  const unsigned short EOS_NETWORK_ERR = 1;
  const unsigned short EOS_DECODE_ERR = 2;

  void webkitSourceEndOfStream(in unsigned short status);

  // states
  const unsigned short SOURCE_CLOSED = 0;
  const unsigned short SOURCE_OPEN = 1;
  const unsigned short SOURCE_ENDED = 2;

  readonly attribute unsigned short webkitSourceState;
};

The code is already checked into WebKit, but commented out behind a command-line compiler flag.

Frank then stepped forward to show how webkitSourceAppend() can be used to implement HTTP adaptive streaming. His example uses WebM - there are no examples with MPEG or Ogg yet.

The chunks that Frank’s demo used were 150 video frames long (6.25s) and 5s long audio. Stream switching only switched video, since audio data is much lower bandwidth and more important to retain at high quality. Switching was done on multiplexed files.

Every chunk requires an XHR range request - this could be optimised if the connections were kept open per adaptation. Seeking works, too, but since decoding requires download of a whole chunk, seeking latency is determined by the time it takes to download and decode that chunk.

Similar to DASH, when using this approach for live streaming, the server has to produce one file per chunk, since byte range requests are not possible on a continuously growing file.

Frank did not use DASH as the manifest format for his HTTP adaptive streaming demo, but instead used a hacked-up custom XML format. It would be possible to use JSON or any other format, too.

After this session, I was actually completely blown away by the possibilities that such a simple API extension allows. If I wasn’t sold on the idea of a appendBytes() function in the earlier session, this one completely changed my mind. While I still believe we need to standardise a HTTP adaptive streaming file format that all browsers will support for all codecs, and I still believe that a native implementation for support of such a file format is necessary, I also believe that this approach of webkitSourceAppend() is what HTML needs - and maybe it needs it faster than native HTTP adaptive streaming support.

Standards for Browser Video Playback Metrics

This session was moderated by Zachary Ozer and Pablo Schklowsky (JWPlayer). Their motivation for the topic was, in fact, also HTTP adaptive streaming. Once you leave the decisions about when to do stream switching to JavaScript (through a function such a wekitSourceAppend()), you have to expose stream metrics to the JS developer so they can make informed decisions. The other use cases is, of course, monitoring of the quality of video delivery for reporting to the provider, who may then decide to change their delivery environment.

The discussion found that we really care about metrics on three different levels:

• measuring the network performance (bandwidth)
• measuring the decoding pipeline performance
• measuring the display quality

In the end, it seemed that work previously done by Steve Lacey on a proposal for video metrics was generally acceptable, except for the playbackJitter metric, which may be too aggregate to mean much.

Device Inputs / A/V in the Browser

I didn’t actually attend this session held by Anant Narayanan (Mozilla), but from what I heard, the discussion focused on how to manage permission of access to video camera, microphone and screen, e.g. when multiple applications (tabs) want access or when the same site wants access in a different session. This may apply to real-time communication with screen sharing, but also to photo sharing, video upload, or canvas access to devices e.g. for time lapse photography.

Open Video Editors

This was another session that I wasn’t able to attend, but I believe the creation of good open source video editing software and similar video creation software is really crucial to giving video a broader user appeal.

Jeff Fortin (PiTiVi) moderated this session and I was fascinated to later see his analysis of the lifecycle of open source video editors. It is shocking to see how many people/projects have tried to create an open source video editor and how many have stopped their project. It is likely that the creation of a video editor is such a complex challenge that it requires a larger and more committed open source project - single people will just run out of steam too quickly. This may be comparable to the creation of a Web browser (see the size of the Mozilla project) or a text processing system (see the size of the OpenOffice project).

Jeff also mentioned the need to create open video editor standards around playlist file formats etc. Possibly the Open Video Alliance could help. In any case, something has to be done in this space - maybe this would be a good topic to focus next year’s OVC on?

Monday’s Breakout Groups

The conference ended officially on Sunday night, but we had a third day of discussions / hackday at the wonderful New York Lawschool venue. We had collected issues of interest during the two previous days and organised the breakout groups on the morning (Schedule).

In the Content Protection/DRM session, Mark Watson from Netflix explained how their API works and that they believe that all we need in browsers is a secure way to exchange keys and an indicator of protection scheme is used - the actual protection scheme would not be implemented by the browser, but be provided by the underlying system (media framework/operating system). I think that until somebody actually implements something in a browser fork and shows how this can be done, we won’t have much progress. In my understanding, we may also need to disable part of the video API for encrypted content, because otherwise you can always e.g. grab frames from the video element into canvas and save them from there.

In the Playlists and Gapless Playback session, there was massive brainstorming about what new cool things can be done with the video element in browsers if playback between snippets can be made seamless. Further discussions were about a standard playlist file formats (such as XSPF, MRSS or M3U), media fragment URIs in playlists for mashups, and the need to expose track metadata for HTML5 media elements.

What more can I say? It was an amazing three days and the complexity of problems that we’re dealing with is a tribute to how far HTML5 and open video has already come and exciting news for the kind of applications that will be possible (both professional and community) once we’ve solved the problems of today. It will be exciting to see what progress we will have made by next year’s conference.

Thanks go to Google for sponsoring my trip to OVC.

UPDATE: We actually have a mailing list for open media developers who are interested in these and similar topics - do join at http://lists.annodex.net/cgi-bin/mailman/listinfo/foms.

Since 2007 I have organised the annual Foundations of Open Media Software (FOMS) developers workshop. Last year it was held for the first time in the northern hemisphere, in fact on the two days straight after the Open Video Conference (OVC).

This year I’m really excited to announce that the workshop will be an integral part of the Open Video Conference on 10-12 September 2011.

FOMS 2011 will take place as the Open Media Developers track at OVC and I would like to see as many if not more open media software developers attend as we had in last year’s FOMS.

Why should you go?

Well, firstly of course the people. As in previous years, we will have some of the key developers in open media software attend - not as celebrities, but to work with other key developers on hard problems and to make progress.

Then, secondly we believe we have some awesome sessions in preparation:

• WebRTC: Realtime Communications and HTML5
• Standards for Video Accessibility
• WebM: Testing, Metrics and New features
• HTML5 video players: Shortcomings of the HTML5 video API for cross-platform player libraries
• Standards for HTTP Adaptive Streaming
• Standards for Browser Video Statistics
• Device Inputs for A/V in the Browser

How we run it

I’m actually not quite satisfied with just these sessions. I’d like to be more flexible on how we make the three days a success for everyone. And this implies that there will continue to be room to add more sessions, even while at the conference, and create breakout groups to address really hard issues all the way through the conference.

I insist on this flexibility because I have seen in past years that the most productive outcomes are created by two or three people breaking away from the group, going into a corner and hacking up some demos or solutions to hard problems and taking that momentum away after the workshop.

To allow this to happen, we will have a plenary on the first day during which we will identify who is actually present at the workshop, what they are working on, what sessions they are planning on a attending, and what other topics they are keen to learn about during the conference that may not yet be addressed by existing sessions.

We’ll repeat this exercise on the Monday after all the rest of the conference is finished and we get a quieter day to just focus on being productive.

But is it worth the effort?

As in the past years, whether the workshop is a success for you depends on you and you alone. You have the power to direct what sessions and breakout groups are being created, and you have the possibility to find others at the workshop that share an interest and drag them away for some productive brainstorming or coding.

I’m going to make sure we have an adequate number of rooms available to actually achieve such an environment. I am very happy to have the support of OVC for this and I am assured we have the best location with plenty of space.

Trip sponsorships

As in previous FOMSes, we have again made sure that travel and conference sponsorship is available to community software developers that would otherwise not be able to attend FOMS. We have several such sponsorships and I encourage you to email the FOMS committee or OVC about it. Mention what you’re working on and what you’re interested to take away from OVC and we can give you free entry, hotel and flight sponsorship.

Oh, and don’t forget to Register for OVC!

Over the last weeks I’ve updated my “external videos” wordpress plugin. I’ve fixed bugs and added some new functionality.

List of changes:

• fixed a bug in attaching blog posts to videos for link-through from gallery overlays
• allow re-attaching a different blog post to a video
• added a shortcode that allows to link straight through to video pages instead of the overlay
• fixed a bug on retrieval of keyframe for dotsub
• added option to add the video posts to the site’s RSS feed
• fixed a bug on image paths for the thickbox
• made sure whenever a user goes to the admin page that the cron hook is active
• changed some class names to avoid clashes with other plugins that people reported
• turned simple_html_dom code into a class of its own to avoid clashes with other plugins that use this code, too
• cleaning up entered data from surplus white space
• styling fixes to the overlay on gallery
• shielding against a bug with no videos on channels to retrieve yet

Download the new plugin version 0.13

Note: there is something weird going on with the wordpress plugins site, which still shows version 0.7 as the current one, but when you download it, it gets the latest version 0.12. If somebody knows how to fix this, that would be awesome. I think it also stops people from auto-updating this plugin, which is sad with this many improvements. (I think I fixed it by actually changing the version number in the external-videos.php file - how silly of me - and thanks to the Wordpress Forum person who pointed it out to me! Download 0.13 now.)

Working in the WHAT WG and the W3C HTML WG, you sometimes forget that all the things that are being discussed so heatedly for standardization are actually leading to some really exciting new technologies that not many outside have really taken note of yet.

This week, during the Australian Linux Conference in Brisbane, I’ve been extremely lucky to be able to show off some awesome new features that browser vendors have implemented for the audio and video elements. The feedback that I got from people was uniformly plain surprise - nobody expected browser to have all these capabilities.

The examples that I showed off have mostly been the result of working on a book for almost 9 months of the past year and writing lots of examples of what can be achieved with existing implementations and specifications. They have been inspired by diverse demos that people made in the last years, so the book is linking to many more and many more amazing demos.

Incidentally, I promised to give a copy of the book away to the person with the best idea for a new Web application using HTML5 media. Since we ran out of time, please shoot me an email or a tweet (@silviapfeiffer) within the next 4 weeks and I will send another copy to the person with the best idea. The copy that I brought along was given to a student who wanted to use HTML5 video to display on surfaces of 3D moving objects.

So, let’s get to the talks.

On Monday, I gave a presentation on “Audio and Video processing in HTML5”, which had a strong focus on the Mozilla Audio API.

I further gave a brief lightning talk about “HTML5 Media Accessibility Update”. I am expecting lots to happen on this topic during this year.

Finally, I gave a presentation today on “The Latest and Coolest in HTML5 Media” with a strong focus on video, but also touching on audio and media accessibility.

The talks were streamed live - congrats to Ryan Verner for getting this working with support from Ben Hutchings from DebConf and the rest of the video team. The videos will apparently be available from http://linuxconfau.blip.tv/ in the near future.

UPDATE 4th Feb 2011: And here is my LCA talk …

with subtitles on YouTube:

Over the last two days we had the Open Subtitles Summit here in New York. It was very exciting to feel the energy in the room to make a change to media accessibility - I am sure we will see much development over the next 12 months. We spoke much about HTML5 video and standards and had many discussions about subtitles, captions, and other accessibility information.

On Wednesday we had a discussion about metadata and I quickly realized that “your metadata is not my metadata”: everyone used the word for something different. So, I suggested to have a metadata discussion on Thursday where we would put a structure onto all of this, identify what kinds of metadata we have and whether and how it should be supported in HTML5 standards.

Our basic findings are very simple and widely accepted. There are three fundamentally different types of metadata:

• Technical metadata about video: information about the format of the resource - things that can be determined automatically and are non-controversial, such as the width, height, framerate, audio sample rate etc. This information can be used to, e.g. decide if a video is appropriate for a certain device.
• Semantic metadata about video: semantic information about the video resource - e.g. license, author, publication date, version, attribution, title, description. This information is good for search and identification.
• Timed semantic metadata: semantic information that is associated with time intervals of the video, not with the full video - e.g. active speaker, location, date-time, objects.

As we talked about this further, however, we identified subclasses of these generic types that are very important to identify because they will be handled differently.

We found that semantic metadata can be separated into universal metadata and domain-specific metadata. Universal metadata is semantic metadata that can basically be applied to any content. There is very little of that and the W3C Media Annotations WG has done a pretty good job in identifying it. Domain-specific metadata is such metadata that only applies to some content, e.g. all the videos about sports have metadata such as game scores, players, or type of sport.

As for adding such metadata into media resources, we discussed that it makes sense to have the universal metadata explicitly spelled out and to have a generic means to associate name-value pairs with resource. Of course it will all be stored in databases, but there was also a requirement to have it encoded into the media resource - and in our discussion case: into external captions or subtitle files.

As for timed metadata - it is possible to separate this into metadata that is only relevant as part of a subtitle or caption file, because the metadata relates to a certain word or a word sequence, and into independent timed metadata that can be stored in, e.g. JSON or some similar format.

Since we are particularly interested in subtitles and captions, the timed metadata that is associated with words or word sequences is particularly important. The most natural metadata that is useful as part of subtitles is of course speaker segmentation. We also identified that hyperlinks to related content are just as important, since it can enable applications such as popcorn.js.

Potentially there is a use for metadata association with any sequence of words in a caption or subtitle, which could be satisfied with the use of a generic markup element for a sequence of words, such that microdata or RDFa may get associated. A request for such a generic means of associating metadata was made. However, the need for it still has to be confirmed with good use cases - the breakout group was out of time as we came to this point. So, leave your ideas for use cases in the requirements - they will help shape standards.

Lots is happening in open source multimedia land in the next few months.

Check out these cool upcoming conferences / workshops / miniconfs…

September 29th and 30th, New York Open Subtitles Design Summit October 1st and 2nd, New York Open Video Conference

October 3rd and 4th, New York Foundations of Open Media Software Developer Workshop

January 24/25th, Brisbane, Australia LCA Multimedia Miniconf

After two years of effort, the W3C Media Fragment WG has now created a Last Call Working Draft document. This means that the working group is fairly confident that they have addressed all the required issues for media fragment URIs and their implementation on HTTP and is asking for outside experts and groups for input. This is the time for you to get active and proof-read the specification thoroughly and feed back all the concerns that you have and all the things you do not understand!

The media fragment (MF) URI specification specifies two types of MF URIs: those created with a URI fragment (”#”), e.g. video.ogv#t=10,20 and those with a URI query (”?”), e.g. video.ogv?t=10,20. There is a fundamental difference between the two that needs to be appreciated: with a URI fragment you can specify a subpart of a resource, e.g. a subpart of a video, while with a URI query you will refer to a different resource, i.e. a “new” video. This is an important difference to understand for media fragments, because only some things that we want to achieve with media fragments can be achieved with ”#”, while others can only be achieved by transforming the resource into a different new bitstream.

This all sounds very abstract, so let me give you an example. Say you want to retrieve a video without its audio track. Say you’d rather not download the audio track data, since you want to save on bandwidth. So, you are only interested to get the video data. The URI that you may want to use is video.ogv#track=video. This means that you don’t want to change the video resource, but you only want to see the video. The user agent (UA) has two options to resolve such a URI: it can either map that request to byte ranges and just retrieve those - or it can download the full resource and ignore the data it has not been requested to display.

Since we do not want the extra bytes of the audio track to be retrieved, we would hope the UA can do the byte range requests. However, most Web video formats will interleave the different tracks of a media resource in time such that a video track will results in a gazillion of smaller byte ranges. This makes it impractical to retrieve just the video through a ”#” media fragment. Thus, if we really want this functionality, we have to make the server more intelligent and allow creation of a new resource from the existing one which doesn’t contain the audio. Then, the server, upon receiving a request such as video.ogv#track=video can redirect that to video.ogv?track=video and actually serve a new resource that satisfies the needs.

This is in fact exactly what was implemented in a recently published Firefox Plugin written by Jakub Sendor - also described in his presentation “Media Fragment Firefox plugin”.

Media Fragment URIs are defined for four dimensions:

• temporal fragments
• spatial fragments
• track fragments
• named fragments

The temporal dimension, while not accompanied with another dimension, can be easily mapped to byte ranges, since all Web media formats interleave their tracks in time and thus create the simple relationship between time and bytes.

The spatial dimension is a very complicated beast. If you address a rectangular image region out of a video, you might want just the bytes related to that image region. That’s almost impossible since pixels are encoded both aggregated across the frame and across time. Also, actually removing the context, i.e. the image data outside the region of interest may not be what you want - you may only want to focus in on the region of interest. Thus, the proposal for what to do in the spatial dimension is to simply retrieve all the data and have the UA deal with the display of the focused region, e.g. putting a dark overlay over the regions outside the region of interest.

The track dimension is similarly complicated and here it was decided that a redirect to a URI query would be in order in the demo Firefox plugin. Since this requires an intelligent server - which is available through the Ninsuna demo server that was implemented by Davy Van Deursen, another member of the MF WG - the Firefox plugin makes use of that. If the UA doesn’t have such an intelligent server available, it may again be most useful to only blend out the non-requested data on the UA similar to the spatial dimension.

The named dimension is still a largely undefined beast. It is clear that addressing a named dimension cannot be done together with the other dimensions, since a named dimension can represent any of the other dimensions above, and even a combination of them. Thus, resolving a named dimension requires an understanding of either the UA or the server what the name maps to. If, for example, a track has a name in a media resource and that name is stored in the media header and the UA already has a copy of all the media headers, it can resolve the name to the track that is being requested and take adequate action.

But enough explaining - I have made a screencast of the Firefox plugin in action for all these dimensions, which explains things a lot more concisely than word will ever be able to - enjoy:

And do not forget to proofread the specification and send feedback to public-media-fragment@w3.org.

Google have today announced the open sourcing of VP8 and the creation of a new media format WebM.

Technical Challenges

As I predicted earlier, Google had to match VP8 with an audio codec and a container format - their choice was a subpart of the Matroska format and the Vorbis codec. To complete the technical toolset, Google have:

• developed ffmpeg patches, so an open source encoding tool for WebM will be available
• developed GStreamer and DirectShow plugins, so players that build on these frameworks will be able to decode WebM,
• and developed an SDK such that commercial partners can implement support for WebM in their products.

This has already been successful and several commercial software products are already providing support for WebM.

Google haven’t forgotten the mobile space either - a bunch of Hardware providers are listed as supporters on the WebM site and it can be expected that developments have started.

The speed of development of software and hardware around WebM is amazing. Google have done an amazing job at making sure the technology matures quickly - both through their own developments and by getting a substantial number of partners included. That’s just the advantage of being Google rather than a Xiph, but still an amazing achievement.

Browsers

As was to be expected, Google managed to get all the browser vendors that are keen to support open video to also support WebM: Chrome, Firefox and Opera all have come out with special builds today that support WebM. Nice work!

What is more interesting, though, is that Microsoft actually announced that they will support WebM in future builds of IE9 - not out of the box, but on systems where the codec is already installed. Technically, that is be the same situation as it will be for Theora, but the difference in tone is amazing: in this blog post, any codec apart from H.264 was condemned and rejected, but the blog post about WebM is rather positive. It signals that Microsoft recognize the patent risk, but don’t want to be perceived of standing in the way of WebM’s uptake.

Apple have not yet made an announcement, but since it is not on the list of supporters and since all their devices exclusively support H.264 it stands to expect that they will not be keen to pick up WebM.

Publishers

What is also amazing is that Google have already achieved support for WebM by several content providers. The first of these is, naturally, YouTube, which is offering a subset of its collection also in the WebM format and they are continuing to transcode their whole collection. Google also has Brightcov, Ooyala, and Kaltura on their list of supporters, so content will emerge rapidly.

Uptake

So, where do we stand with respect to a open video format on the Web that could even become the baseline codec format for HTML5? It’s all about uptake - if a substantial enough ecosystem supports WebM, it has all chances of becoming a baseline codec format - and that would be a good thing for the Web.

And this is exactly where I have the most respect for Google. The main challenge in getting uptake is in getting the codec into the hands of all people on the Internet. This, in particular, includes people working on Windows with IE, which is still the largest browser from a market share point of view. Since Google could not realistically expect Microsoft to implement WebM support into IE9 natively, they have found a much better partner that will be able to make it happen - and not just on Windows, but on many platforms.

Yes, I believe Adobe is the key to creating uptake for WebM - and this is admittedly something I have completely overlooked previously. Adobe has its Flash plugin installed on more than 90% of all browsers. Most of their users will upgrade to a new version very soon after it is released. And since Adobe Flash is still the de-facto standard in the market, it can roll out a new Flash plugin version that will bring WebM codec support to many many machines - in particular to Windows machines, which will in turn enable all IE9 users to use WebM.

Why would Adobe do this and thus cement its Flash plugin’s replacement for video use by HTML5 video? It does indeed sound ironic that the current market leader in online video technology will be the key to creating an open alternative. But it makes a lot of sense to Adobe if you think about it.

Adobe has itself no substantial standing in codec technology and has traditionally always had to license codecs. Adobe will be keen to move to a free codec of sufficient quality to replace H.264. Also, Adobe doesn’t earn anything from the Flash plugins themselves - their source of income are their authoring tools. All they will need to do to succeed in a HTML5 WebM video world is implement support for WebM and HTML5 video publishing in their tools. They will continue to be the best tools for authoring rich internet applications, even if these applications are now published in a different format.

Finally, in the current hostile space between Apple and Adobe related to the refusal of Apple to allow Flash onto its devices, this may be the most genius means of Adobe at getting back at them. Right now, it looks as though the only company that will be left standing on the H.264-only front and outside the open WebM community will be Apple. Maybe implementing support for Theora wouldn’t have been such a bad alternative for Apple. But now we are getting a new open video format and it will be of better quality and supported on hardware. This is exciting.

IP situation

I cannot, however, finish this blog post on a positive note alone. After reading the review of VP8 by a x.264 developer, it seems possible that VP8 is infringing on patents that are outside the patent collection that Google has built up in codecs. Maybe Google have calculated with the possibility of a patent suit and put money away for it, but Google certainly haven’t provided indemnification to everyone else out there. It is a tribute to Google’s achievement that given a perceived patent threat - which has been the main inhibitor of uptake of Theora - they have achieved such an uptake and industry support around VP8. Hopefully their patent analysis is sound and VP8 is indeed a safe choice.

UPDATE (22nd May): After having thought about patents and the situation for VP8 a bit more, I believe the threat is really minimal. You should also read these thoughts of a Gnome developer, these of a Debian developer and the emails on the Theora mailing list.

Recently, I was asked to review the W3C Media Annotations specifications as they are about to go into Last Call (a state that comes before the request for implementations at the W3C).

The W3C Media Annotations group has defined a set of metadata that they believe is representative and common for media resources. The ontology consist of the following fields:

• ma:identifier: a URI or string to identify a resource
• ma:title: a string providing the title of the resource
• ma:language: a language code describing the language used in the resource
• ma:locator: the URI at which the resource can be accessed
• ma:contributor: a URI or string identifying the contributor and the nature of the contribution
• ma:creator: a URI or string identifying an author
• ma:createDate: a date of creation or publication of the resource
• ma:location: a string or geo code identifying where the resource has been shot/recorded
• ma:description: a string describing the content of the resource
• ma:keyword: a word or word combination providing a topic, keyword or tag representing the resource
• ma:genre: a string providing the genre of the resource
• ma:rating: rating value, including the rating scale
• ma:relation: a URI and string identifying a related resource and the relationship
• ma:collection: a URI or string providing the name of a collection to which the resource belongs
• ma:copyright: a URI or string with the copyright statement.
• ma:license: a string or URI with the usage license
• ma:publisher: a string or URI with the publisher of the resource
• ma:targetAudience: a URI and classification string providing the issuer of the classification and the classification value
• ma:fragments: a list of string and URI values that identify media fragments and their type
• ma:namedFragments: a list of string and URI values the provide names to media fragments
• ma:frameSize: a width - height pair in pixels
• ma:compression: a string providing the compression algorithm
• ma:duration: a float to provide the resource duration in seconds
• ma:format String: the mime type of the resource
• ma:samplingrate: a float with the audio sampling rate
• ma:framerate: a float with the video frame rate
• ma:bitrate: a float providing the average bit rate in kbps
• ma:numTracks: an int of the number of tracks

Note that some of these fields are not single values, but simple constructs of multiple values. Thus, they are actually more complex than name-value pairs that, e.g. are typically used in HTML meta headers or in Dublin Core. I regard this as an issue for implementations.

The fields were chosen as typical metadata being available about media resources. The media fragments fields are a bit dubious in this respect, but could be useful in future.

The metadata is determined either from within the resource itself or from a metadata collection about the resource. As such, the document maps several existing metadata and media resource formats to this interface, amongst them:

• XMP
• ID3
• iTunes
• QT
• SearchMonkey
• MediaRDF
• LOM
• METS
• EXIF
• CableLabs 1.1
• CableLabs 2.0
• DIG35
• MIX
• FRBR
• MediaRSS
• TXFeed
• YouTube
• VRA
• IPTC
• TVA
• EBUCore
• EBUP
• MPEG7
• SMTPD

As they didn’t have a mapping table for Ogg content, I offered the following:

MAWG	Relation	Ogg properties	How to do the mapping	Datatype
Descriptive Properties (Core Set)
Identification
ma:identifier	exact	Name	Name field in skeleton header (new)	String
ma:title	exact	Title	TITLE field in vorbiscomment header	String
	exact	Title	Title field in skeleton header (new)	String
	related	Album	ALBUM title in vorbiscomment header	String
ma:language	exact	Language	Language field in skeleton header (new)	language code
ma:locator	exact		file URI from system	URI
Creation
ma:contributor	exact	Artist, Performer	ARTIST and PERFORMER vorbiscomment headers	Strings
ma:creator	related	Organization	ORGANIZATION field in vorbiscomment header
ma:createDate	exact	Date	DATE field in vorbiscomment header	ISO date format
ma:location	exact	Location	LOCATION field in vorbiscomment header	String
Content description
ma:description	exact	Description	DESCRIPTION field in vorbiscomment header	String
ma:keyword	N/A
ma:genre	exact	Genre	GENRE field in vorbiscomment header	String
ma:rating	N/A
Relational
ma:relation	related	Version, Tracknumber	VERSION (version of a title), TRACKNUMBER (CD track) fields in vorbiscomment header	Strings
ma:collection	related	Album	ALBUM field of vorbiscomment header	String
Rights
ma:copyright	exact	Copyright	COPYRIGHT field of vorbiscomment header	String
ma:license	exact	License	LICENSE field of vorbiscomment header	String
Distribution
ma:publisher	related	Organization	ORGNIZATION field of vorbiscomment header	String
ma:targetAudience	more specific	Role	Role field of Skeleton header (new)	String
Fragments
ma:fragments	N/A
ma:namedFragments	N/A
Technical Properties
ma:frameSize	exact		extract from binary header of video track	int, int (width x height)
ma:compression	exact	Content-type	Content-type field of Skeleton header	MIME type
ma:duration	exact		calculate as duration = last_sample_time - first_sample_time of OggIndex header of skeleton	Float (or rather: rational - rational)
ma:format	exact	Content-type	Content-type field of Skeleton header	MIME type
ma:samplingrate	exact		calculate as granulerate = granulerate_numerator / granulerate_denominator of Skeleton header	Rational (or rather int / int)
ma:framerate	exact		calculate as granulerate = granulerate_numerator / granulerate_denominator of Skeleton header	Rational (or rather int / int)
ma:bitrate	exact		calculate as bitrate = length_of_segment / duration from OggIndex headers of skeleton	Float
ma:numTracks	exact	Tracknumber	TRACKNUMBER field of vorbiscomment header (track number on album)	Int

You will notice that the table mentions 4 fields in skeleton with a “new” marker - they are actually proposed fields in skeleton - a bit of coding will be necessary to introduce them into software. The space for these fields already exists in message header fields, so it won’t require a change of the skeleton format.

In the second specification of the Media Annotations WG, the group offers a standard API to access (i.e. read) the defined fields. They also intend to create an API to write the fields, but I doubt that will be easy because of the vast amount of file types they intend to support.

There is basically a single function that allows the extraction of metadata: MAObject[] getProperty(in DOMString propertyName, in optional DOMString sourceFormat, in optional DOMString subtype, in optional DOMString language, in optional DOMString fragment );

I proposed it may be possible to include this into HTML5 as follows: interface HTMLMediaElement : HTMLElement { ... getter MAObject getProperty(in DOMString propertyName, in optional unsigned long trackIndex); ... }

This would either extract the property for a particular track in a media resource or for the complete resource if no track index is given. The only problem I see is that the returned object is different depending on the requested property - the MAObject is only a parent class for the returned object types. I am not sure it is therefore possible to specify this easily in HTML5.

Overall I thought the specification was a nice piece of work. I am not sure I agree with all the chosen fields, but that is always an issue with metadata. The most important fields are there and that’s what matters.

Today, I was invited to give a talk at my old workplace CSIRO about the HTML5 media elements and accessibility.

A lot of the things that have gone into Ogg and that are now being worked on in the W3C in different working groups - including the Media Fragments and HTML5 WGs - were also of concern in the Annodex project that I worked on while at CSIRO. So I was rather excited to be able to report back about the current status in HTML5 and where we’re at with accessibility features.

Check out the presentation here. It contains a good collection of links to exciting demos of what is possible with the new HTML5 media elements when combined with other HTML features.

I tried something now with this presentation: I wrote it in a tool called S5, which makes use only of HTML features for the presentation. It was quite a bit slower than I expected, e.g. reloading a page always included having to navigate to that page. Also, it’s not easily possible to do drawings, unless you are willing to code them all up in HTML. But otherwise I have found it very useful for, in particular, including all the used URLs and video element demos directly in the slides. I was inspired with using this tool by Chris Double’s slides from LCA about implementing HTML 5 video in Firefox.

—\n 189823\n\n17753616 bbb_youtube_h264_499kbit.mp4\n13898515 bbb_youtube_h264_499kbit.h264\n 3796188 bbb_youtube_h264_499kbit.aac\n--------\n 58913\n\nI hope you believe me now..” parent: 0

• id: 607 author: “DonDiego” authorUrl: "" date: “2010-02-25 09:31:12” content: “@Louise: FLV and MP4 are general-purpose container formats that can contain audio, video, subtitles and metadata in a variety of flavors.” parent: 0
• id: 608 author: “Monty” authorUrl: “http://xiph.org” date: “2010-02-25 10:53:24” content: “DonDiego, you troll this every chance you get. I’m getting tired of addressing it in one place, having the rebuttal entirely ignored, and then having you plaster it somewhere else, anywhere else that’s visible.\n\nOgg is different from your favorite container. We know. It does not need to be extended for every new codec. It’s a transport layer that does not include metadata (that’s for Skeleton). Mp4 and Nut make metadata part of a giant monolithic design. Whoop-de-do. The overhead depends on how it’s being used (for the high bitrate BBB above, it’s using a tiny page size tuned to low bitrate vids, an aspect of the encoder that produced it, not Ogg itself). Etc, etc. \n\nDoing something different than the way you and your group would do it is not ‘horribly flawed’ it is just… different.\n\nWe’re not dropping Ogg and breaking tens of millions of decoders to use mp4 or Nut just because a few folks are angry that their pet format came too late or because your country doesn’t have software patents. Where I live, patents exist. You’re free to do anything that you want with the codecs, of course. Go ahead and put them in MOV or Nut! As you loudly proclaim, you’re in a country that doesn’t have software patents, so you don’t have to care.\n\nOr, “for the love of all that is holy”, get over it. Last I checked you weren’t willing to use Theora either… so why exactly are you here…? Obvious troll is obvious.” parent: 0
• id: 609 author: “Chris Smart” authorUrl: “http://blog.christophersmart.com” date: “2010-02-25 11:12:47” content: “@DonDiego\nPage 93 of the ISO Base File Format standard states that Apple, Matsushita and Telefonaktiebolaget LM Ericsson assert patents in relation to this format.\n\nHere’s the standard:\nhttp://standards.iso.org/ittf/PubliclyAvailableStandards/c051533_ISO_IEC_14496-12_2008.zip\n\n-c” parent: 0
• id: 610 author: “Monty” authorUrl: “http://xiph.org” date: “2010-02-25 11:39:57” content: “Since I have to rebut this again lest it grow legs:\n\nFor the record, If I was redesigning the Ogg container today, I’d consider changing two things:\n\n1) The specific packet length encoding encoding tops out at an overhead efficiency of .5%. If you accept an efficiency hit on small packet sizes, you can improve large packet size efficiency. This is one of the things Diego is ranting about. We actually had an informal meeting about this at FOMS in 2008. We decided that breaking every Ogg decoder ever shipped was not worth a theoretical improvement of .3% (depending on usage).\n\n2) Ogg page checksums are whole-page and mandatory. Today I’d consider making them switchable, where they can either cover the whole page or just the page header. It would optionally reduce the computational overhead for streams where error detection is internal to the codec packet format, or for streams where the user encoding does not care about error detection. Again— not worth breaking the entire install base. \n\nAt FOMS we decided that if we were starting from scratch, the first was a good idea and we were split on the checksums. But we’re not starting from scratch, and compatibility/interop is paramount.\n\nThe third big thing Diego (and the mplayer community in general) hate is the intentional, conscious decision to allow a codec to define how to parse granule positions for that codec’s stream. Granpos parsing thus requires a call into the codec. \n\nThe practical consequence: When an Ogg file contains a stream for which a user doesn’t have the codec installed… they can’t decode the stream! gasp Wait… how is that different from any other system? \n\nWhat’s different is that the demuxer also can’t parse the timestamps on those pages that wouldn’t be decodable anyway. Also, see above, parsing a timestamp requires a call to the installed codec. The mplayer mux layer can’t cope with this design, and they won’t change the player. We’re supposed to change our format instead.\n\nFourth cited difference is that Ogg is transport only and stream metadata is in Skeleton (or some other layer sitting inside the low level Ogg transport stream) rather than part of a monolithic stream transport design. Practical difference? None really. Except that their mux/demux design can’t handle it, and they’re not interested in changing that either.\n\nI hope this clarifies the years of sustained anti-Ogg vitriol from the Mplayer and spin-off communities. Could Ogg be improved? Sure! Is that a reason to burn everything and start over? DonDiego seems to think so.” parent: 0
• id: 611 author: “Chris Smart” authorUrl: “http://blog.christophersmart.com” date: “2010-02-25 11:41:42” content: “@DonDiego\n\nYour assertion that FLV supports a variety of is not quite true (depends on your definition of “variety” - having “two” could be considered “variety”).\n\nAccording to the spec (“http://www.adobe.com/devnet/flv/pdf/video_file_format_spec_v10.pdf\”), FLV only supports the following Audio formats:\nPCM\nMP3\nNollymoser\nG.711\nAAC\nSpeex\n\nLikewise, only a few video formats are supported, namely:\nVP6\nH.263\nH.264\n\nMost importantly, it does not support free video and audio formats such as Theora and Vorbis.\n\n-c” parent: 0
• id: 612 author: “Multimedia Mike” authorUrl: “http://multimedia.cx/eggs/” date: “2010-02-25 12:14:31” content: “@Chris Smart: Technically, there’s nothing preventing FLV from supporting a much larger set of audio and video codecs. However, it’s generally only useful to encode codecs that the Adobe Flash Player natively supports since that’s the primary use case for FLV. Adding support for another codec is generally just a matter of deciding on a new unique ID for that codec.\n\nDeciding on a new unique ID for a codec is usually all that’s necessary for adding support for a new codec to a general-purpose container format. It’s why AVI is still such a catch-all format— just think of a new unique ID (32-bit FourCC) for your experimental codec.\n\nThe beef we have with Ogg is — as Monty eloquently describes in his comment — that Ogg increases the coupling between container and codec layers. This adds complexity that most multimedia systems don’t have to deal with.” parent: 0
• id: 613 author: “Louise” authorUrl: "" date: “2010-02-25 12:17:03” content: “@Monty\n\nVery interesting read!!\n\nIt is scary how a container that is suppose to free us from the proprietary containers, can be so bad.\n\nI found this blog from a x264 developer\nhttp://x264dev.multimedia.cx/?p=292\n\nwhich had this to say about ogg:\n\n[quote]\nMKV is not the best designed container format out there (it” parent: 0
• id: 614 author: “Multimedia Mike” authorUrl: “http://multimedia.cx/eggs/” date: “2010-02-25 12:23:01” content: “@Louise: “Do you think VP8 would be back wards compatible if it contains 3rd party patents, and they were removed?”\n\nBackwards compatible with what?” parent: 0
• id: 615 author: “Monty” authorUrl: “http://xiph.org” date: “2010-02-25 14:08:36” content: ”> It is scary how a container that is suppose to free us from the \n> proprietary containers, can be so bad.\n\nIt isn’t. It is very different from one what set of especially pretentious wonks expects and they’ve been wanking about it for coming up on a decade. None of this makes an ounce of difference to users, and somehow other software groups don’t seem to have any trouble with Ogg. For such a fatally flawed system, it seems to work pretty well in practice :-P\n\nSuggestions like ‘They should have just used MKV’ doesn’t make sense. Ogg predates MKV by many years, and interleave is a fairly recent feature in MKV. \n\nThe format designed by the mplayer folks is named Nut. Despite many differences in the details, the system it resembles most closely… is Ogg. Subjective evaluation of course, but I always considered the resemblance uncanny. \n\nLast of all, suppose just out of old fashioned spite and frustration, Xiph says ‘No more Ogg for the container! We use Nut now!’ That… pretty much ends FOSS’s practical chances of having any relevance in web video or really any net multimedia for the forseeable future. …all to get that .3% and a design change under the blankets that no user could ever possibly care about. Sign me up!” parent: 0
• id: 616 author: “silvia” authorUrl: “http://blog.gingertech.net/” date: “2010-02-25 20:39:55” content: “@DonDiego To be fair, in your file size example, you should provide the correct sums:\n\n== quote\n17307153 bbb_theora_486kbit.ogv\n15009926 bbb_theora_486kbit.theora\n2107404 bbb_theora_486kbit.vorbis\n” parent: 0
• id: 617 author: “Louise” authorUrl: "" date: “2010-02-25 21:20:28” content: “@Monty\n\nWas NUT designed before MKV was released?” parent: 0
• id: 618 author: “DonDiego” authorUrl: "" date: “2010-02-25 22:39:45” content: “@silvia: I am providing the correct sums! You are misreading my table. Let me reformat the table slightly and pad with zeroes for readability:\n\n 17307153 bbb_theora_486kbit.ogv (the complete file)\n- 15009926 bbb_theora_486kbit.theora (the video track)\n- 02107404 bbb_theora_486kbit.vorbis (the audio track)\n ========\n 00189823 (container overhead)\n\n 17753616 bbb_youtube_h264_499kbit.mp4 (the complete file)\n- 13898515 bbb_youtube_h264_499kbit.h264 (the video track)\n- 03796188 bbb_youtube_h264_499kbit.aac (the audio track)\n ========\n 00058913 (container overhead)\n\nSo in this application, Ogg has more than 300% the overhead of MP4. Ogg is known to produce large overhead, but I did not expect this order of magnitude. Now I believe Monty that it’s possible to reduce this, but the purpose of Greg’s comparison was to test this particular configuration without additional tweaks. Otherwise the H.264 and AAC encoding settings could be tweaked further as well…\n\nI wonder what you tested when you say that in your experience Ogg files come out smaller than MPEG files. The term “MPEG files” is about as broad as it gets in the multimedia world. Yes, the MPEG-TS container has very high overhead, but it is designed for streaming over lossy sattelite links. This special purpose warrants the overhead tradeoff.” parent: 0
• id: 619 author: “DonDiego” authorUrl: "" date: “2010-02-25 22:44:32” content: “@louise: NUT was designed after Matroska already existed.” parent: 0
• id: 620 author: “Monty” authorUrl: “http://www.xiph.org/” date: “2010-02-26 08:16:54” content: “Silvia: DonDiego was illustrating a broken-out subtraction. His numbers are correct, as is his claim; Ogg is introducing more overhead (1%). That’s almost certainly reduceable, but I’ve not looked at the page structure in Vorbose to be sure of that claim. .5%-.7% is the intended working range. It climbs if the muxer is splitting too many packets or the packets are just too small (not the case here).\n\n>So in this application, Ogg has more than 300% the overhead of MP4. \n>Ogg is known to produce large overhead, but I did not expect this \n>order of magnitude.\n\nYes, Ogg is using more overhead. Let’s assume that a better muxer gets me .7% overhead (yeah, even our own muxer is overly straightforward and doesn’t try anything fancy; it hasn’t been updated since 1998 or so. “Have to extend to container for every new codec” jeesh…)\n\nSo this is really a screaming fight over the difference between .7% and .3%? \n\nI don’t debate for a second that Nut’s packet length encoding is better, and that’s the lion’s share of the difference assuming the file is muxed properly. And if/when (long term view, ‘when’ is almost certainly correct) Ogg needs to be refreshed in some way that has to break spec anyway, the Nut packet encoding will be one of the first things added because at that point it’s a ‘why not?’. But until then there’s no sensible way to defend the havoc a container change would wreak and all for reducing a .7% bitstream overhead down to .3%. It would be optimising something completely insignificant at great practical cost.” parent: 0
• id: 621 author: “silvia” authorUrl: “http://blog.gingertech.net/” date: “2010-02-26 10:07:54” content: “@monty, @DonDiego thanks for the clarifications” parent: 0
• id: 622 author: “DonDiego” authorUrl: "" date: “2010-02-26 11:43:00” content: “@Monty: You are giving me far too much credit! “for the love of all that is holy and some that is not, don’t do that” is a quote from Mans in reply to somebody proposing to add ‘#define _GNU_SOURCE’ to FFmpeg. I have been looking for an opportunity to steal that phrase and take credit as being funny for a long time. SCNR ;-p\n\nSpeaking of memorable quotes I cannot help but point at the following classic out of your feather after trying and failing to get patches into MPlayer:\nhttp://lists.mplayerhq.hu/pipermail/mplayer-dev-eng/2007-November/054865.html\n\n======\nFine. I give up.\n\nThere are plenty of things about the design worth arguing about… but\nyou guys are more worried about the color of the mudflaps on this\ndumptruck. You’re rejecting considered decisions out of hand with\nvague, irrelevant dogma. I’ve seen two legitimate bugs brought up so\nfar in a mountain of “WAAAH! WE DON’T LIKE YOUR INDEEEEENT.”\n\nI have the only mplayer/mencoder on earth that can always dump WMV2\nand WMV3 without losing sync. I just needed it for me. I thought it\nwould be nice to submit it for all your users who have been asking for\nthis for years. But it just ceased being worth it.\n\nPatch retracted. You can all go fuck yourselves. Life is too short\nfor this asshattery.\n\nMonty\n=====\n\nWe remember you fondly. I and many others didn’t know what asshat meant before, but now it found a place in everybody’s active vocabulary. I’m not being ironic BTW, sometimes nothing warms the heart more than a good flame and few have generated more laughter than yours :-)\n\nThe ironic thing is that your fame brought you attention and the attention brought detailed reviews, which made patch acceptance harder.\n\nI also failed getting patches into Tremor. You rejected them for silly reasons, but, admittedly, I did not have the energy to flame it through…\n\nFor the record: I have no vested interest in NUT. Some of the comments above could be read to suggest that Ogg would be a good base when starting from a clean slate. This is wrong, Ogg is the weakest part of the Xiph stack. You know that, but there are people all around the internet proclaiming otherwise. This does not help your case, on the contrary, so I try to inject facts into the discussion. Admittedly, sometimes I do it with a little bit of flair of my own ;-)\n\nCheers, Diego” parent: 0
• id: 623 author: “Monty” authorUrl: “http://www.xiph.org/” date: “2010-02-26 12:06:52” content: “@DonDiego\n\na) I was indeed bucking up against rampant asshattery.\n\nb) Not sure how any of that is even slightly relevant to this thread.\n\nYou’re bringing it up in some sort of attempt to shame or embarrass because you’ve lost on facts? For the record, I meant it when I said it then, and I don’t feel any differently now. And asshat is indeed a fabulous word.\n\n[FTR, you’ve had two patches rejected and several more accepted if the twelve hits from Xiph.Org Trac are a complete set.]\n\nMonty” parent: 0
• id: 624 author: “silvia” authorUrl: “http://blog.gingertech.net/” date: “2010-02-26 12:12:01” content: “This blog is not for personal attacks, but only for discussing technical issues. Unfortunately, the discussion on these comments is developing in a way that I cannot support any longer. I have therefore decided to close comments.\n\nThank you everyone for your contributions.” parent: 0

---

Since On2 Technology’s stockholders have approved the merger with Google, there are now first requests to Google to open up VP8.

I am sure Google is thinking about it. But … what does “it” mean?

Freeing VP8 Simply open sourcing it and making it available under a free license doesn’t help. That just provides open source code for a codec where relevant patents are held by a commercial entity and any other entity using it would still need to be afraid of using that technology, even if it’s use is free.

So, Google has to make the patents that relate to VP8 available under an irrevocable, royalty-free license for the VP8 open source base, but also for any independent implementations of VP8. This at least guarantees to any commercial entity that Google will not pursue them over VP8 related patents.

Now, this doesn’t mean that there are no submarine or unknown patents that VP8 infringes on. So, Google needs to also undertake an intensive patent search on VP8 to be able to at least convince themselves that their technology is not infringing on anyone else’s. For others to gain that confidence, Google would then further have to indemnify anyone who is making use of VP8 for any potential patent infringement.

I believe - from what I have seen in the discussions at the W3C - it would only be that last step that will make companies such as Apple have the confidence to adopt a “free” codec.

An alternative to providing indemnification is the standardisation of VP8 through an accepted video standardisation body. That would probably need to be ISO/MPEG or SMPTE, because that’s where other video standards have emerged and there are a sufficient number of video codec patent holders involved that a royalty-free publication of the standard will hold a sufficient number of patent holders “under control”. However, such a standardisation process takes a long time. For HTML5, it may be too late.

Technology Challenges Also, let’s not forget that VP8 is just a video codec. A video codec alone does not encode a video. There is a need for an audio codec and a encapsulation format. In the interest of staying all open, Google would need to pick Vorbis as the audio codec to go with VP8. Then there would be the need to put Vorbis and VP8 in a container together - this could be Ogg or MPEG or QuickTime’s MOOV. So, apart from all the legal challenges, there are also technology challenges that need to be mastered.

It’s not simple to introduce a “free codec” and it will take time!

Google and Theora There is actually something that Google should do before they start on the path of making VP8 available “for free”: They should formulate a new license agreement with Xiph (and the world) over VP3 and Theora. Right now, the existing license that was provided by On2 Technologies to Theora (link is to an early version of On2’s open source license of VP3) was only for the codebase of VP3 and any modifications of it, but doesn’t in an obvious way apply to an independent re-implementations of VP3/Theora. The new agreement between Google and Xiph should be about the patents and not about the source code. (UPDATE: The actual agreement with Xiph apparently also covers re-implementations - see comments below.)

That would put Theora in a better position to be universally acceptable as a baseline codec for HTML5. It would allow, e.g. Apple to make their own implementation of Theora - which is probably what they would want for ipods and iphones. Since Firefox, Chrome, and Opera already support Ogg Theora in their browsers using the on2 licensed codebase, they must have decided that the risk of submarine patents is low. So, presumably, Apple can come to the same conclusion.

Free codecs roadmap I see this as the easiest path towards getting a universally acceptable free codec. Over time then, as VP8 develops into a free codec, it could become the successor of Theora on a path to higher quality video. And later still, when the Internet will handle large resolution video, we can move on to the BBC’s Dirac/VC2 codec. It’s where the future is. The present is more likely here and now in Theora.

ADDITION: Please note the comments from Monty from Xiph and from Dan, ex-On2, about the intent that VP3 was to be completely put into the hands of the community. Also, Monty notes that in order to implement VP3, you do not actually need any On2 patents. So, there is probably not a need for Google to refresh that commitment. Though it might be good to reconfirm that commitment.

ADDITION 10th April 2010: Today, it was announced that Google put their weight behind the Theorarm implementation by helping to make it BSD and thus enabling it to be merged with Theora trunk. They also confirm on their blog post that Theora is “really, honestly, genuinely, 100% free”. Even though this is not a legal statement, it is good that Google has confirmed this.

At the recent FOMS/LCA in Wellington, New Zealand, we talked a lot about how Ogg could support accessibility. Technically, this means support for multiple text tracks (subtitles/captions), multiple audio tracks (audio descriptions parallel to main audio track), and multiple video tracks (sign language video parallel to main video track).

Creating multitrack Ogg files The creation of multitrack Ogg files is already possible using one of the muxing applications, e.g. oggz-merge. For example, I have my own little collection of multitrack Ogg files at http://annodex.net/~silvia/itext/elephants_dream/multitrack/. But then you are stranded with files that no player will play back.

Multitrack Ogg in Players As Ogg is now being used in multiple Web browsers in the new HTML5 media formats, there are in particular requirements for accessibility support for the hard-of-hearing and vision-impaired. Either multitrack Ogg needs to become more of a common case, or the association of external media files that provide synchronised accessibility data (captions, audio descriptions, sign language) to the main media file needs to become a standard in HTML5.

As it turn out, both these approaches are being considered and worked on in the W3C. Accessibility data that are audio or video tracks will in the near future have to come out of the media resource itself, but captions and other text tracks will also be available from external associated elements.

The availability of internal accessibility tracks in Ogg is a new use case - something Ogg has been ready to do, but has not gone into common usage. MPEG files on the other hand have for a long time been used with internal accessibility tracks and thus frameworks and players are in place to decode such tracks and do something sensible with them. This is not so much the case for Ogg.

For example, a current VLC build installed on Windows will display captions, because Ogg Kate support is activated. A current VLC build on any other platform, however, has Ogg Kate support deactivated in the build, so captions won’t display. This will hopefully change soon, but we have to look also beyond players and into media frameworks - in particular those that are being used by the browser vendors to provide Ogg support.

Multitrack Ogg in Browsers Hopefully gstreamer (which is what Opera uses for Ogg support) and ffmpeg (which is what Chrome uses for Ogg support) will expose all available tracks to the browser so they can expose them to the user for turning on and off. Incidentally, a multitrack media JavaScript API is in development in the W3C HTML5 Accessibility Task Force for allowing such control.

The current version of Firefox uses liboggplay for Ogg support, but liboggplay’s multitrack support has been sketchy this far. So, Viktor Gal - the liboggplay maintainer - and I sat down at FOMS/LCA to discuss this and Viktor developed some patches to make the demo player in the liboggplay package, the glut-player, support the accessibility use cases.

I applied Viktor’s patch to my local copy of liboggplay and I am very excited to show you the screencast of glut-player playing back a video file with an audio description track and an English caption track all in sync:

elephants_dream_with_audiodescriptions_and_captions

Further developments There are still important questions open: for example, how will a player know that an audio description track is to be played together with the main audio track, but a dub track (e.g. a German dub for an English video) is to be played as an alternative. Such metadata for the tracks is something that Ogg is still missing, but that Ogg can be extended with fairly easily through the use of the Skeleton track. It is something the Xiph community is now working on.

Summary This is great progress towards accessibility support in Ogg and therefore in Web browsers. And there is more to come soon.

I have talked a lot about synchronising multiple tracks of audio and video content recently. The reason was mainly that I foresee a need for more than two parallel audio and video tracks, such as audio descriptions for the vision-impaired or dub tracks for internationalisation, as well as sign language tracks for the hard-of-hearing.

It is almost impossible to introduce a good scheme to deliver the right video composition to a target audience. Common people will prefer bare a/v, vision-impaired would probably prefer only audio plus audio descriptions (but will probably take the video), and the hard-of-hearing will prefer video plus captions and possibly a sign language track . While it is possible to dynamically create files that contain such tracks on a server and then deliver the right composition, implementation of such a server method has not been very successful in the last years and it would likely take many years to roll out such new infrastructure.

So, the only other option we have is to synchronise completely separate media resource together as they are selected by the audience.

It is this need that this HTML5 accessibility demo is about: Check out the demo of multiple media resource synchronisation.

I created a Ogg video with only a video track (10m53s750). Then I created an audio track that is the original English audio track (10m53s696). Then I used a Spanish dub track that I found through BlenderNation as an alternative audio track (10m58s337). Lastly, I created an audio description track in the original language (10m53s706). This creates a video track with three optional audio tracks.

I took away all native controls from these elements when using the HTML5 audio and video tag and ran my own stop/play and seeking approaches, which handled all media elements in one go.

I was mostly interested in the quality of this experience. Would the different media files stay mostly in sync? They are normally decoded in different threads, so how big would the drift be?

The resulting page is the basis for such experiments with synchronisation.

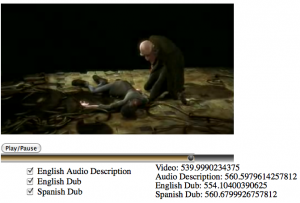

The page prints the current playback position in all of the media files at a constant interval of 500ms. Note that when you pause and then play again, I am re-synching the audio tracks with the video track, but not when you just let the files play through.

I have let the files play through on my rather busy Macbook and have achieved the following interesting drift over the course of about 9 minutes:

You will see that the video was the slowest, only doing roughly 540s, while the Spanish dub did 560s in the same time.

To fix such drifts, you can always include regular re-synchronisation points into the video playback. For example, you could set a timeout on the playback to re-sync every 500ms. Within such a short time, it is almost impossible to notice a drift. Don’t re-load the video, because it will lead to visual artifacts. But do use the video’s currentTime to re-set the others. (UPDATE: Actually, it depends on your situation, which track is the best choice as the main timeline. See also comments below.)

It is a workable way of associating random numbers of media tracks with videos, in particular in situations where the creation of merged files cannot easily be included in a workflow.

During last week’s LCA, Jan Gerber, Michael Dale and I gave a 3 hour tutorial on how to publish HTML5 video in an open format.

We basically taught people how to create and publish Ogg Theora video in HTML5 Web pages and how to make them work across browsers, including much of the available tools and libraries. We’re hoping that some people will have learnt enough to include modules in CMSes such as Drupal, Joomla and Wordpress, which will easily support the publishing of Ogg Theora.

I have been asked to share the material that we used. It consists of:

• HTML5_Tutorial (611KB)
• the example videos (328MB), and
• HTML5 video exercises (3.4KB).

Note that if you would like to walk through the exercises, you should install the following software beforehand:

• oggz-tools
• oggvideotools
• apache2 or a Web server of your choice
• ffmpeg2theora
• firefox3.5+
• firefogg plugin
• firebug plugin
• vlc, mplayer, totem or xine
• kino or pitivi or another video editor that exports Theora, e.g. iMovie with XiphQT

You might need to look for packages of your favourite OS (e.g. Windows or Mac, Ubuntu or Debian).

The exercises include:

• creating a Ogg video from an editor
• transcoding a video using http://firefogg.org/
• creating a poster image using OggThumb
• writing a first HTML5 video Web page with Ogg Theora
• publishing it on a Web Server, with correct MIME type & Duration hint
• writing a second HTML5 video Web page with Ogg Theora & MP4 to cover Safari/Webkit
• transcoding using ffmpeg2theora in a script
• writing a third HTML5 video Web page with Cortado fallback
• writing a fourth Web page using “Video for Everybody”
• writing a fifth Web page using “mwEmbed”
• writing a sixth Web page using firefogg for transcoding before upload
• and a seventh one with a progress bar
• encoding srt subtitles into an Ogg Kate track
• writing an eighth Web page using cortado to display the Ogg Kate track

For those that would like to see the slides here immediately, a special flash embed:

Enjoy!

You probably heard it already: Linux.conf.au is live streaming its video in a Microsoft proprietary format.

Fortunately, there is now a re-broadcast that you can get in an open format from http://stream.v2v.cc:8000/ . It comes from a server in Europe, but relies on transcoding here in New Zealand, so it may not be completely reliable.

UPDATE: A second server is now also available from the US at http://repeater.xiph.org:8000/.

Today, the down under open source / Linux conference linux.conf.au in Wellington started with the announcement that every talk and mini-conf will be live streamed to the Internet and later published online. That’s an awesome achievement!

However, minutes after the announcement, I was very disappointed to find out that the streams are actually provided in a proprietary format and through a proprietary streaming protocol: a Microsoft streaming service that provides Windows media streams.

Why stream an open source conference in a proprietary format with proprietary software? If we cannot use our own technologies for our own conferences, how will we get the rest of the world to use them?

I must say, I am personally embarrassed, because I was part of several audio/video teams of previous LCAs that have managed to record and stream content in open formats and with open media software. I would have helped get this going, but wasn’t aware of the situation.

I am also the main organiser of the FOMS Workshop (Foundations of Open Media Software) that ran the week before LCA and brought some of the core programmers in open media software into Wellington, most of which are also attending LCA. We have the brains here and should be able to get this going.

Fortunately, the published content will be made available in Ogg Theora/Vorbis. So, it’s only the publicly available stream that I am concerned about.

Speaking with the organisers, I can somewhat understand how this came to be. They took the “easy” way of delegating the video work to an external company. Even though this company is an expert in open source and networking, their media streaming customers are all using Flash or Windows media software, which are current de-facto standards and provide extra features such as DRM. It seems apart from linux.conf.au there were no requests on them for streaming Ogg Theora/Vorbis yet. Their existing infrastructure includes CDN distribution and CDN providers certainly typically don’t provide Ogg Theora/Vorbis support or Icecast streaming.

So, this is actually a problem founded in setting up streaming through a professional service rather than through the community. The way in which this was set up at other events was to get together a group of volunteers that provided streaming reflectors for free. In this way, a community-created CDN is built that can deal with the streams. That there are no professional CDN providers available yet that provide Icecast support is a sign that there is a gap in the market.

But phear not - a few of the FOMS folk got together to fix the situation.

It involved setting up Icecast streams for each room’s video stream. Since there is no access to the raw video stream, there is a need to transcode the video from proprietary codecs to the open Ogg Theora/Vorbis format.

To do this legally, a purchase of the codec libraries from Fluendo was necessary, which cost a whopping EURO 28 and covers all the necessary patent licenses. The glue to get the videos from mms to icecast streams is a GStreamer pipeline which I leave others to talk about.

Now, we have all the streams from the conference available as Ogg Theora/Video streams, we can also publish them in HTML5 video elements. Check out this Web page which has all the video streams together on a single page. Note that the connections may be a bit dodgy and some drop-outs may occur.

Further, let me recommend the Multimedia Miniconf at linux.conf.au, which will take place tomorrow, Tuesday 19th January. The Miniconf has decided to add a talk about “How to stream you conference with open codecs” to help educate any potential future conference organisers and point out the software that helps solve these issues.

UPDATE: I should have stated that I didn’t actually do any of the technical work: it was all done by Ralph Giles, Jan Gerber, and Jan Schmidt.

If you haven’t proposed a presentation yet, got ahead and register yourself for:

FOMS (Foundations of Open Media Software workshop) at http://www.foms-workshop.org/foms2010/pmwiki.php/Main/CFP

LCA Multimedia Miniconf at http://www.annodex.org/events/lca2010_mmm/pmwiki.php/Main/CallForP

It’s already November and there’s only Christmas between now and the conferences!

I’m personally hoping for many discussions about HTML5

But there are heaps of other topics to discuss and anyone doing any work with open media software will find a fruitful discussions at FOMS.

Cortado is a java applet that provides support for Ogg Theora/Vorbis to Web publishers. It’s particularly useful to publishers that want to use Ogg Theora/Vorbis in Browsers that do not yet support the HTML5 video element with Ogg.

Cortado was originally developed by Fluendo SA under a LGPL license and contains a re-implementation of Theora and Vorbis in Java (jheora and jcraft). After a few years of low maintenance, the Wikimedia Foundation took it in their hands to undust the code for their use in the Wikimedia Commons, where only unencumberd open video format are acceptable.

As Ralph states in his announcement of the new release: earlier this year, Xiph.org took over maintenance of the Cortado java applet to help concentrate interest and expertise on this important component of the free media codec infrastructure. Therefore, the official website for Cortado is as now part of the Xiph. [If somebody could update the Wikipedia article - that would be awesome!]

So, I am very happy to point to the first Cortado release in three years. Source and sample builds are available from the Xiph.org download site.

Ralph writes further:

The new version is tagged 0.5.0 to indicate both the change in hosting and the significant new support for files from the new libtheora encoder implementation and Kate embedded subtitles.

In particular, 0.5.0 has:

• Support for files encoded with Theora 1.1
• Faster YUV to RGB conversion with better results
• Basic support for embedded Ogg Kate streams
• Seeking fixed for files with an Ogg Skeleton track
• Maintained compatibility with the Microsoft VM

This is an awesome example of the power of open source and what a group of people can achieve. Congratulations to everyone at Xiph, Wikipedia, and anyone else who contributed to the release!

I got a shiny new MacBook Pro on the weekend, yay! After months of complaining about the slowness and the heat evaporating from my old Macbook, I’m finally off to better grounds.

But then there was the annoying task of setting up the machine with all the software that I’m using. MySQL and ruby turned out to be particular problems. I installed MySQL for 10.5, since MySQL haven’t published one for OS 10.6 yet. I ran “gem install mysql”. And then the pain started.

I got all the errors that were reported elsewhere: “uninitialized constant MysqlCompat::MysqlRes” and “undefined method `real_connect’ for Mysql:Class (NoMethodError)”. I tried all the suggestions - including: "sudo env ARCHFLAGS="-arch x86" gem install mysql -- --with-mysql-config=/usr/local/mysql-5.1.39-osx10.5-x86/bin/mysql_config -V --debug, but just couldn’t get there.

My laptop reports in the System Software Overview: “64-bit Kernel and Extensions: No”, so I assumed I had to use the 32 bit versions. However, that was a wrong assumption. Even though my kernel seems to be 32 bit, applications seem to be 64 bit.

So, eventually I re-installed MySQL for Mac OS X 10.5 (x86_64) and ran the correct gem install command: sudo env ARCHFLAGS="-arch x86_64" gem install mysql -- --with-mysql-config=/usr/local/mysql-5.1.39-osx10.5-x86 and things were fine.

Additionally, there was some fighting with the PrefPane and re-starting mysql. I had to kill it manually and I had to install the updated PrefPane of Swoon dot net to make it work.

Hope this helps somebody avoid the same pain!

Yesterday, I gave a talk on the HTML5 video element at Web Directions South.

The title was “Taking HTML5

_This talk focuses on the efforts engaged by W3C to improve the new HTML 5 media elements with mechanisms to allow people to access multimedia content, including audio and video. Such developments are also useful beyond accessibility needs and will lead to a general improvement of the usability of media, making media discoverable and generally a prime citizen on the Web.

Silvia will discuss what is currently technically possible with the HTML5 media elements, and what is still missing. She will describe a general framework of accessibility for HTML5 media elements and present her work for the Mozilla Corporation that includes captions, subtitles, textual audio annotations, timed metadata, and other time-aligned text with the HTML5 media elements. Silvia will also discuss work of the W3C Media Fragments group to further enhance video usability and accessibility by making it possible to directly address temporal offsets in video, as well as spatial areas and tracks._

Here are my slides:

Download the pdf from here.

There was also a video recording and I will add that here as soon as it is published.

UPDATE: The video is available on Tinyvid:

I’m not going to try and upload this 50min long video to YouTube - with it’s 10 min limit, I won’t get very far.

On Wednesday evening I gave a 3 min presentation on video accessibility in HTML5 at the WebJam in Sydney. I used a video as my presentation means and explained things while playing it back. Here is the video, without my oral descriptions, but probably still useful to some. Note in particular how you can experience the issues of deaf (HoH), blind (VI) and foreign language users:

The Ogg version is here.

Just a brief note to let everyone know about a new wikipage I created for my Mozilla work about video accessibility, where I want to track the status and outcomes of my work. You can find it at https://wiki.mozilla.org/Accessibility/Video_a11y_Aug09. It lists the following sections: Test File Collection, Specifications, Demo implementations using JavaScript, Related open bugs in Mozilla, and Publications.

As part of my experiments in video accessibility I am also looking at the audio element. I have just finished a proof of concept for parsing Lyrics files for music in lrc format.

The demo uses Tay Zonday’s “Chocolate Rain” song both as a video with subtitles and as an audio file with lyrics. Fortunately, he published these all under a creative commons license, so I was able to use this music file. BTW: I found it really difficult to find a openly licensed music file with lyrics.

While I was at it, I also cleaned up all the old demos and now have a nice list of all demos in a central file.

Looking at accessibility for video includes sign language. It is a most fascinating area to get into and an area that still leaves a lot to formalise and standardise. A lot has happened in recent years and a lot still needs to be done.

Sign languages are different languages to spoken languages: they emerged in parallel to spoken languages in communities whose boundaries may not overlap with the boundaries of spoken languages. However, most developed means to translate spoken language artifacts (i.e. letters) into sign language artifacts (i.e. signs). So, a typical signer will speak/write at least 3-4 “languages”: the spoken language of their hearing peers, lip reading of that spoken language, letter signs of the spoken language, and finally the native sign language of the community they live in.

Encoding sign language in the computer is a real challenge. Firstly, there is the problem of enumerating all available languages. Then there is the challenge to find an alphabet to represent all “characters” that can be used in sign across many (preferably all) sign languages. Then there is the need to encode these characters in a way that computers can deal with. And finally, there is the need to find a screen representation of the characters. In this blog post, I want to describe the status for all of these.

Currently, sign language can only be represented as a video track by recording sign speakers. Once a sign character list together with an encoding and representation means for them and a specification of the different sign languages is available, it is possible to encode sign sentences in computer-readable form. Further, programs can be written that can present sign sentences on screen, that translate between different sign languages, and between sign and spoken languages. Also, avatars can be programmed that actually present animated sign sentences.

Imagine a computer that instead of presenting letters in your spoken language uses sign language characters and has keys with signs on them instead of letters. To a sign speaker this would be a lot more natural, since for most sign is their mother tongue.

Listing all existing sign languages It was a challenge to create codes for all existing spoken languages - the current list of language codes has only been finalised in 1998.

Until the 1980s, scientists assumed that it is impossible to develop as rich a language with signs as with writing and speaking. Thus, the native languages of deaf people were often regarded as inferior to spoken languages. In many countries it was even prohibited to teach the language in schools for the deaf and instead they were taught to speak an oral language and read lips. In France this prohibition was only lifted in 1991! Only in about 1985 was it proven that sign languages are indeed as rich as spoken languages and deserve the right to be called a “language” and be treated as a fully capable means of communication.

So, there hasn’t actually been much time to map out a list of all sign languages. The best list I was able to find is in Wikipedia. It lists 28 N/S American, 38 European, 34 Asia-Pacific-AU/NZ, 30 African, and 13 Middle Eastern sign languages - in summary 143 sign languages. This list contains 177 sign languages.

Interestingly, there is also a new International Sign Language in development called Gestuno which is in use in international events (Olympics, conferences etc.) but has only a limited vocabulary.

In 1999 the Irish National Body, Deaf Action Committee for SignWriting, proposed the addition of sign language codes to ISO-639-2. Instead, a single code entered the list: sgn for sign language. In 2001, this led to the development of IETF language extension codes in RFC 3066 for 22 sign languages. In September 2006, this standard was replaced by RFC 4646, which defines 135 subtags for sign languages, including one for the International Sign Language and a generic “sgn” one.

While not complete, the current IANA subtag language registry now regards sign languages as valid derivatives of a country’s languages and therefore handles them identically to spoken languages. It’s also extensible such that any sign language not yet registered can still be specified.

Characters for sign languages The written word is very powerful for preserving and sharing information. For a very long time there has been no written representation of sign languages. This is not surprising considering that there are still indigenous spoken languages that have no written representation. Also, the written representation of the spoken language around the community of a sign language would have served the sign community sufficiently for most purposes - except for the accurate capture of their thoughts and sign communications. It would always be a foreign language.

To move sign languages into the 20th century, the invention of characters for signs was necessary.

It is relatively easy to map the alphabets of spoken languages to signs (e.g. American (ASL) manual alphabet, British, Australian and NZ (AUSLAN) manual alphabet, or German manual finger alphabet, also see fingerspelling). Interesting the AUSLAN manual alphabet is a two-handed one while the ASL one is single-handed.

Fonts are available for these alphabets, too, e.g. British Sign Font, American Sign Font, French Sign Font and more.

The real challenge lies in capturing the proper signs deaf people use to communicate amongst themselves.

This is rather challenging, since sign languages uses the hands, head and body, with constantly changing movements and orientations for communication. Thus, while spoken language only has one dimension (sound) over time, sign languages have “three dimensions” and capturing this in characters is difficult. Many sign languages to this date don’t have a widely used written form, e.g. AUSLAN. Mostly in use nowadays are sequences of photos or videos - which of course cannot be computer processed easily.

Two main writing systems have been developed: the phonemic Stokoe notation and the iconic SignWriting.

Stokoe notation was created by William Stokoe for ASL in 1960, with Latin letters and numbers used for the shapes they have in fingerspelling, and iconic glyphs to transcribe the position, movement, and orientation of the hands. Adaptations were made to other sign languages to include further phonemes not found in ASL. Stokoe notation is written left-to-right on a page and can be typed with the proper font installed. It has a Unicode/ASCII mapping, but does not easily apply to other sign languages than ASL since it does not capture all possible signs. It has no representation for facial and body expressions and is therefore a relatively poor representation for sign.

SignWriting was created by Valerie Sutton in 1974, a dancer who had two years earlier developed DanceWriting and later developed MimeWriting, SportsWriting, and ScienceWriting. SignWriting is a writing system which uses visual symbols to represent the handshapes, movements, and facial expressions of sign languages. It is a generic sign alphabet with a list of symbols that can be used to write any sign language in the world.

SignWriting can be easily learnt by signers and is more popular now than Stokoe. Signers compose the symbols together in a spatial way to represent their signs. They then write the composed symbols from top to bottom on a page, similar to other iconic character sets. SignWriting currently supports 73 different sign languages, whose dictionaries and encyclopedias are captured in SignPuddle. This will eventually allow the creation of complete corpora for all sign languages.

Unicode encoding of SignWriting and visual representation Because of its unique challenges of having to cover the spatial combination of symbols as a new symbol rather than just the sequential combination of symbols, it took a while to get a Unicode representation of SignWriting.

About a year ago, on 19th September 2008, Valerie Sutton released the International SignWriting Alphabet (ISWA 2008).

A binary representation of SignWriting is defined in ISWA 2008. It is based on a representing 639 base symbols and their potential 6 fill and 16 rotation variants in 61,343 code points, that completely cover the subset of 35023 valid symbol codes. The spatial aspect of SignWriting are encoded in a 2-dimensional coordinate system. The dimensions go from -1919 through 1919 to place the top left corner of the symbol.

SignWriting base symbols are encoded in plane 4 of Unicode, which provides 65,536 code points, easily covering the defined 61,343 Binary SignWriting code points. Further special control and number characters are used to encode the spatial layout.

Visual Representation of SignWriting Valerie Sutton created over 35k individual PNG images for ISWA 2008, which have been reformatted for standard color & reduced file size, and renamed to the character code. They are a font used to represent the signs. The images can be accessed on Valerie’s server.

Closing After learning all this today, I have to say that Valerie Sutton has just turned into a new idol of mine. The achievements with SignWriting and the possibilities it will enable are massive.

Now I just have to figure out what to do when we hit on a sign language track that has been encoded in SignWriting and it represents captions. Maybe it is possible to display sign as overlay but on the left side of the video. This would be similar to some other languages that go from top to bottom rather than left to right.

Just a brief note to share that I have updated the video accessibility demo at http://www.annodex.net/~silvia/itext/elephant_no_skin.html.

It should now support ARIA and tab access to the menu, which I have simply put next to the video. I implemented the menu by learning from YUI. My Firefox 3.5.3 actually doesn’t tab through it, but then it also doesn’t tab through the YUI example, which I think is correct. Go figure.

Also, the textual audio descriptions are improved and should now work better with screenreaders.

I have also just prepared a recorded audio description of “Elephants Dreams” (German accent warning).

You can also download the multitrack Ogg Theora video file that contains the original audio and video track plus the audio description as an extra track, created using oggz-merge.

As soon as some kind soul donates a sign language track for “Elephants Dream”, I will have a pretty complete set of video accessibility tracks for that video. This will certainly become the basis for more video a11y work!

In the W3C Media Fragment Working Group (MFWG) we have had long discussions about the use of the URI query (”?”) or the URI fragment (”#”) addressing approach for addressing directly into media fragments, and the diverse new HTTP headers required to serve such URI requests, considering such side conditions as the stripping-off of fragment parameters from a URI by Web browsers, or the existence of caching Web proxies.

As explained earlier, URI queries request (primary) resources, while URI fragments address secondary resources, which have a relationship to their primary resource. So, in the strictest sense of their specifications, to address segments in media resources without losing the context of the primary resource, we can only use URI fragments.

Browser-supported Media Fragment URIs

For this reason, URI fragments are also the way in which my last media fragment addressing demo has been implemented. For example, I would address

In an effort to give a demo of some of the W3C Media Fragment WG specification capabilities, I implemented a HTML5 page with a video element that reacts to fragment offset changes to the URL bar and the

Demo Features

The demo can be found on the Annodex Web server. It has the following features:

If you simply load that Web page, you will see the video jump to an offset because it is referred to as “elephants_dream/elephant.ogv#t=20”.

If you change or add a temporal fragment in the URL bar, the video jumps to this time offset and overrules the video’s fragment addressing. (This only works in Firefox 3.6, see below - in older Firefoxes you actually have to reload the page for this to happen.) This functionality is similar to a time linking functionality that YouTube also provides.

When you hit the “play” button on the video and let it play a bit before hitting “pause” again - the second at which you hit “pause” is displayed in the page’s URL bar . In Firefox, this even leads to an addition to the browser’s history, so you can jump back to the previous pause position.

Three input boxes allow for experimentation with different functionality.

• The first one contains a link to the current Web page with the media fragment for the current video playback position. This text is displayed for cut-and-paste purposes, e.g. to send it in an email to friends.

• The second one is an entry box which accepts float values as time offsets. Once entered, the video will jump to the given time offset. The URL of the video and the page URL will be updated.

• The third one is an entry box which accepts a video URL that replaces the . It is meant for experimentation with different temporal media fragment URLs as they get loaded into the

Javascript Hacks

You can look at the source code of the page - all the javascript in use is actually at the bottom of the page. Here are some of the juicy bits of what I’ve done:

Since Web browsers do not support the parsing and reaction to media fragment URIs, I implemented this in javascript. Once the video is loaded, i.e. the “loadedmetadata” event is called on the video, I parse the video’s @currentSrc attribute and jump to a time offset if given. I use the @currentSrc, because it will be the URL that the video element is using after having parsed the @src attribute and all the containing elements (if they exist). This function is also called when the video’s @src attribute is changed through javascript.

This is the only bit from the demo that the browsers should do natively. The remaining functionality hooks up the temporal addressing for the video with the browser’s URL bar.

To display a URL in the URL bar that people can cut and paste to send to their friends, I hooked up the video’s “pause” event with an update to the URL bar. If you are jumping around through javascript calls to video.currentTime, you will also have to make these changes to the URL bar.

Finally, I am capturing the window’s “hashchange” event, which is new in HTML5 and only implemented in Firefox 3.6. This means that if you change the temporal offset on the page’s URL, the browser will parse it and jump the video to the offset time.

Optimisation

Doing these kinds of jumps around on video can be very slow when the seeking is happening on the remote server. Firefox actually implements seeking over the network, which in the case of Ogg can require multiple jumps back and forth on the remote video file with byte range requests to locate the correct offset location.

To reduce as much as possible the effort that Firefox has to make with seeking, I referred to Mozilla’s very useful help page to speed up video. It is recommended to deliver the X-Content-Duration HTTP header from your Web server. For Ogg media, this can be provided through the oggz-chop CGI. Since I didn’t want to install it on my Apache server, I hard coded X-Content-Duration in a .htaccess file in the directory that serves the media file. The .htaccess file looks as follows:

<Files "elephant.ogv"> Header set X-Content-Duration "653.791" </Files>

This should now help Firefox to avoid the extra seek necessary to determine the video’s duration and display the transport bar faster.

I also added the @autobuffer attribute to the

ToDos

This is only a first and very simple demo of media fragments and video. I have not made an effort to capture any errors or to parse a URL that is more complicated than simply containing “#t=”. Feel free to report any bugs to me in the comments or send me patches.

Also, I have not made an effort to use time ranges, which is part of the W3C Media Fragment spec. This should be simple to add, since it just requires to stop the video playback at the given end time.

Also, I have only implemented parsing of the most simple default time spec in seconds and fragments. None of the more complicated npt, smpte, or clock specifications have been implemented yet.

The possibilities for deeper access to video and for improved video accessibility with these URLs are vast. Just imagine hooking up the caption elements of e.g. an srt file with temporal hyperlinks and you can provide deep interaction between the video content and the captions. You could even drive this to the extreme and jump between single words if you mark up each with its time relationship. Happy experimenting!

UPDATE: I forgot to mention that it is really annoying that the video has to be re-loaded when the @src attribute is changed, even if only the hash changes. As support for media fragments is implemented in

Thanks go to Chris Double and Chris Pearce from Mozilla for their feedback and suggestions for improvement on an early version of this.

A few months back, Thomas reported on a cool flumotion experiment that he hacked together which allows jumping back in time on a live video stream.

Thomas used a URI scheme with a negative offset to do the jumping back on the http stream: http://localhost:8800?offset=-120

John left a comment pointing to current work being done in the W3C on Media Fragment addressing, but had to notice that despite Annodex’s temporal URIs having a live stream addressing feature, the new W3C draft didn’t accommodate such a use case.

We got to work in the working group and I am very happy to announce that as of today there is now a draft specification for addressing time offsets by wall-clock time.

Say, you are watching Thomas’ live stream from above at http://localhost:8800 and you want to jump back by 2 min. Your player would grab the current streaming time, e.g. 2009-08-26T12:34:04Z and subtract the two minutes, giving 2009-08-26T12:32:04Z. Then the player would use this to tell your streaming server to jump back by two minutes using this URL: http://localhost:8800#t=clock:2009-08-26T12:32:04Z.

Or another example would be: you had a stream running all day from a conference and you want to go back to a particular session. You know that it was between 10am and 11am German time (UTC+2 right now). Then your URL would be as follows: http://conference:8800#t=clock:2009-08-26T10:00+02:00,2009-08-26T11:00+02:00

Now if only there was an implementation… :-)

Since working on video accessibility, I have felt rather inadequate not knowing exactly how general Web accessibility works, in particular ARIA. I have been pointed at the W3C WAI-ARIA primer, best practices, and WD specification, but found them almost impossible to read.

If you are looking for a document that gets right to the point, I can recommend Opera’s Introduction to WAI ARIA. It tells you what attributes there are and how to use them. More in-depth information is available in the W3C WAI-ARIA best practices. Here’s my little summary of what I learnt.

Getting straight to the point: ARIA mostly cares about giving screen control to the keyboard (away from the mouse) and about exposing semantic information, such that vision-impaired people have a way to interact with Web content and screen readers can read out useful information.

Basic keys The basic keys in use for accessibility are the tab/shift+tab, arrow, enter, space and escape keys.

Keyboard Focus: tabbing Normal tabbing includes form controls and anchors. This can be overruled with the tabindex attribute.

Adding a tabindex=0 to an element adds the element to the tab order in which it appears in the document. Adding a tabindex out of [1;32767] you can place any element into a desired order - lowest numbers first.

Adding a tabindex=-1 to an element removes it from tabbing order, but you can still get keyboard focus onto it through javascript, e.g. for the subelements of a menu. The aria-activedescendant attribute can tell which is active in a list of descendants.

Navigation Landmarks: roles Screenreaders have a problem with expressing what the functionality of elements is - normally they can only read out the name of the element.

This is where the role attribute comes in. It provides semantic meaning, e.g. “slider” instead of “input” element.

ARIA has a large number of pre-defined roles. They are listed in the spec - each role has additional attributes to provide more assistive information - mostly state information on the particular element.

Live updated content: aria-live When data is updated somewhere on screen, often assistive technology doesn’t get to know about it.

Regions that are marked with the aria-live attribute will be read out even if the user is focused on another part of the screen at that point.

Form input: aria-reqired For screen readers it is not obvious if a form element’s entry is a required or optional entry. Add an aria-required attribute to the form entry element and your screen reader will tell you.

Labels and descriptions: aria-labelledby / aria-describedby Most often the description or label for a page area sits already elsewhere on screen, but with no obivous relationship to an element other than visible neighbourship.

A screenreader can be told about the relationship by using the aria-labelledby / aria-describedby attributes, which allow to link to such an area through that area’s id attribute.

Is that all? Yes, I think that’s essentially all. It’s not particularly difficult, but it has a high impact on accessibility. I hope your take-away is as big as mine!

BTW: WAI ARIA is written for good old HTML4, not HTML5. However, there are synchronisation activities under way and WAI ARIA attributes will still be relevant to HTML5. Some of the roles will become unnecessary with the new elements available in HTML5 - see a draft mapping of HTML5 elements to ARIA implicit roles in Henry’s excellent document, but it seems the tabbing order, live regions, and the role attribute are here to stay.

For many years now I have been progressing a deeper view of video on the Web than just as a binary blob. We need direct access to time offsets and sections of videos.

Such direct access can be achieved either by providing a javascript interface through which a video’s playback position can be controlled, or by using URLs that directly communicate with the Web server about controlling the playback position. I will explain the approaches that can be applied on the HTML5

Controlling a video’s playback with javascript

currentTime

Right now, you can use the video element’s “currentTime” property to read and set the current playback position of a video resource. This is very useful to directly jump between different sections in the video, such as exemplified in the BBC’s recent R&D TV demo. To jump to a time offset in a video, all you have to do in javascript is:

var video = document.getElementsByTagName("video")[0]; video.currentTime = starttimeoffset;

timeupdate

Further, if you want to stop playback at a certain time point, you can use another functionality of the HTML5

video.addEventListener("timeupdate", function() { if (video.currentTime >= endtimeoffset) { video.pause(); }}, false);

When the “timeupdate” event fires, which is supposed to happen at a min resolution of 250ms, you can catch the end of your desired interval fairly accurately.

setTimeout / setInterval

Alternatively to using the “timeupdate” event that is provided by the

setTimeout(video.pause(), (endtimeoffset - starttimeoffset)*1000);

The “setTimeout” function is used to call a function or evaluate an expression after a specified number of milliseconds. So, you’d have to call this straight after starting the playback at the given starttimeoffset.

If instead you wanted something to happen at a frequent rate in parallel to the video playback (such as check if you need to display a new ad or a new subtitle), you could use the javascript setInterval function:

setInterval( function() {displaySubtitle(video.currentTime);}, 100);

The “setInterval” function is used to call a function or evaluate an expression at the specified intervall. So, in the given example, every 100ms it is tested whether a new subtitle needs to be displayed for the video current playback time.

Note that for subtitles it makes a lot more sense to use the existing “timeupdate” event of the video rather than creating a frequenty setInterval interrupt, since this will continue calling the function until clearInterval() is called or the window is closed. Also, the BBC found in experiments with Firefox that “timeupdate” is more accurate than polling the “currentTime” regularly.

Controlling a video’s playback through a URL

There are some existing example implementations that control a video’s playback time through a URL.

In 2001, in the Annodex project we proposed temporal URIs and implemented the spec for Ogg content. This is now successfully in use at Metavid.org, where it is very useful since Metavid handles very long videos where direct access to subsections is critical. A URL such as http://metavid.org/wiki/Stream:Senate_proceeding_02-13-09/0:05:40/0:47:29 work well to directly view that segment.

More recently, YouTube rolled out a URI scheme to directly jump to an offset in a YouTube video, e.g. http://www.youtube.com/watch?v=PjDw3azfZWI#t=31m09s. While most YouTube content is short form, and such direct access may not make much sense for a video of less than 2 min duration, some YouTube content is long enough to make this a very useful feature.

You may have noticed that the YouTube use of URIs for jumping to offsets is slightly different to the one used by Metavid. The YouTube video will be displayed as always, but the playback position in the video player changes based on the time offset. The Metavid video in contrast will not display a transport bar for the full video, but instead only present the requested part of the video with an appropriate localised keyframe.

Having realised the need for such URLs, the W3C created a Media Fragments working group.

Proposed Time schemes

For temporal addressing, it currently proposes the following schemes:

t=10,20 t=npt:10,20 . t=120s,121.5s t=npt:120,0:02:01.5 . t=smpte-30:0:02:00,0:02:01:15 t=smpte-25:0:02:00:00,0:02:01:12.1 . t=clock:20090726T111901Z,20090726T121901Z

If there is no time scheme given, it defaults to “npt”, which stands for “normal playback time”. It is basically a time offset given in seconds, but can be provided in a few different formats.

If a “smpte” scheme is given, the time code is provided in the way in which DVRs display time codes, namely according to the SMPTE timecode standard.

Finally, a “clock” time scheme can be given. This is relevant in particular to live streaming applications, which would like to provide a URL under which a live video is provided, but also allow the user to jump back in time to previously streamed data.

Fragments and Queries

Further, the W3C Media Fragment Working Group is discussing the use of both URI addressing schemes for time offsets: fragments (”#”) and queries (”?”).

The important difference is that queries produce a new resource, while fragments provide a sub-resource.

This means that if you load a URI such as http://www.example.org/video.ogv?t=60,100 , the resulting resource is a video of duration 40s. Since relates to the full resource, it is possible to expect from the user agent (i.e. web browser) to display a timeline of 60-100 rather than 0-40 - after all, the browser could just get this out of the URL. However, it is essentially a new resource and could therefore just be regarded as a different video.

If instead you load a URI such as http://www.example.org/video.ogv#t=60,100, the user agent recognizes http://www.example.org/video.ogv as the resource and knows that it is supposed to display the 40s extract of that resource. Using no special server support, the browser could just implement this using the currentTime and timeUpdate javascript functionality.

An optimisation should, however, be made on this latter fragment delivery such that a user does not have to wait until the full beginning of the resource is downloaded before playback starts: Web servers should be expected to implement a server extension that can deal with such offsets and then deliver from the time offset rather than the beginning of the file.

How this is communicated to the server - what extra headers or http communication mechanisms should be used - is currently under discussion at the W3C Media Fragments working group.

In the last week, I have received many emails replying to my request for feedback on the video accessibility demo. Thanks very much to everyone who took the time.

Interestingly, I got very little feedback on the subtitles and textual audio annotation aspects of my demo, actually, even though that was the key aspect of my analysis. It’s my own fault, however, because I chose a good looking video player skin over an accessible one.

This is where I need to take a step back and explain about the status of HTML5 video and its general accessibility aspects. Some of this is a repetition of an email that I sent to the W3C WAI-XTECH mailing list.

Browser support of HTML5 video

The HTML5 video tag is still a rather new tag that has not been implemented in all browsers yet - and not all browsers support the Ogg Theora/Video codec that my demo uses. Only the latest Firefox 3.5 release will support my demo out of the box. For Chrome and Opera you will have to use the latest nightly build (which I am not even sure are publicly available). IE does not support it at all. For Safari/Webkit you will need the latest release and install the XiphQT quicktime component to provide support for the codec.

My recommendation is clearly to use Firefox 3.5 to try this demo.

Standardisation status of HTML5 video

The standardisation of the HTML5 video tag is still in process. Some of the attributes have not been validated through implementations, some of the use cases have not been turned into specifications, and most importantly to the topic of interest here, there have been very little experiments with accessibility around the HTML5 video tag.

Accessibility of video controls

Most of the comments that I received on my demo were concerned with the accessibility of the video controls.

In HTML5 video, there is a attribute called @controls. If it is available, the browser is expected to display default controls on top of the video. Here is what the current specification says:

“This user interface should include features to begin playback, pause playback, seek to an arbitrary position in the content (if the content supports arbitrary seeking), change the volume, and show the media content in manners more suitable to the user (e.g. full-screen video or in an independent resizable window).”

In Firefox 3.5, the controls attribute currently creates the following controls:

• play/pause button (toggles between the two)
• slider for current playback position and seeking (also displays how much of the video has currently been downloaded)
• duration display
• roll-over button for volume on/off and to display slider for volume
• FAIK fullscreen is not currently implemented

Further, the HTML5 specification prescribes that if the @controls attribute is not available, “user agents may provide controls to affect playback of the media resource (e.g. play, pause, seeking, and volume controls), but such features should not interfere with the page’s normal rendering. For example, such features could be exposed in the media element’s context menu.”

In Firefox 3.5, this has been implemented with a right-click context menu, which contains:

• play/pause toggle
• mute/unmute toggle
• show/hide controls toggle

When the controls are being displayed, there are keyboard shortcuts to control them:

• space bar toggles between play and pause
• left/right arrow winds video forward/back by 5 sec
• CTRL+left/right arrow winds video forward/back by 60sec
• HOME+left/right jumps to beginning/end of video
• when focused on the volume button, up/down arrow increases/decreases volume

As for exposure of these controls to screen readers, Mozilla implemented this in June, see Marco Zehe’s blog post on it. It implies having to use focus mode for now, so if you haven’t been able to use keyboard for controlling the video element yet, that may be the reason.

New video accessibility work

My work is actually meant to take video accessibility a step further and explore how to deal with what I call time-aligned text files for video and audio. For the purposes of accessibility, I am mainly concerned with subtitles, captions, and audio descriptions that come in textual form and should be read out by a screen reader or made available to braille devices.

I am exploring both, time-aligned text that comes within a video file, but also those that are available as external Web resources and are just associated to the video through HTML. It is this latter use case that my demo explored.

To create a nice looking demo, I used a skin for the video player that was developed by somebody else. Now, I didn’t pay attention to whether that skin was actually accessible and this is the source of most of the problems that have been mentioned to me thus far.

A new, simpler demo I have now developed a new demo that uses the default player controls which should be accessible as described above. I hope that the extra button that I implemented for the menu with all the text tracks is now accessible through a screen reader, too.

UPDATE: Note that there is currently a bug in Firefox that prevents tabbing to the video element from working. This will be possible in future.

My accessibility work for Mozilla is showing first results.

I have now implemented a demo for the previously proposed element. During the development process, the specification became more concrete.

I’m sure you’re keen to check out the demo.

Please note the following features of the demo:

• It experiments with four different types of time-aligned text: subtitles, captions, chapters, and textual audio annotations.
• It extends the video controls by a menu button for the time-aligned text tracks. This enables the user to switch between different languages for the different tracks.
• The textual audio annotations are mapped into an aria-live activated div element, such that they are indeed read out by screen-readers; this div sits behind the video, invisible to everyone else.
• The chapters are displayed as text on top of the video.
• The subtitles and captions are displayed as overlays at the bottom of the video.
• The display styles and positions are supposed to be default display mechanisms for these kinds of tracks, that could be overwritten by the stylesheet of a Web developer, who intends to place the text elsewhere on screen.

In order to “hear” the textual audio annotations work, you will need to install a screen reader such as JAWS, NVDA, or the firevox plugin on the Mac.

As far as I am aware, this is the first demo of HTML5 video accessibility that includes support for the vision-impaired, hearing-impaired, and also for foreign language speakers.

There have been initial discussions about this proposal, the results of which are captured in the wiki page. I expect a lot more heated discussion will happen on the WHATWG mailing list when I post it soon. I am well aware that probably most of the javascript API will need to be changed, and also some of the HTML.

Also please note that there are some bugs still left on the software, which should not inhibit the discussion at this stage. We will definitely develop a newer and better version.

I am particularly proud that I was able to make this work in the experimental builds of Opera and Chrome, as well as in Safari with XiphQT installed, and of course in Firefox 3.5.

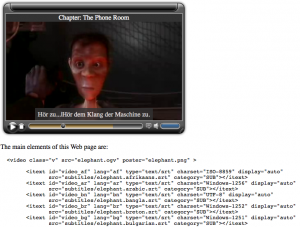

Screenshot of first itext video player experiment

It’s already old news, but I am really excited about having started a new part-time contract with Mozilla to continue pushing the HTML5 video and audio elements towards accessibility.

My aim is two-fold: firstly to improve the HTML5 audio and video tags with textual representations, and secondly to hook up the Ogg file format with these accessibility features through an Ogg-internal text codec.

The textual representation that I am after is closely based on the itext elements I have been proposing for a while. They are meant to be a simple way to associate external subtitle/caption files with the HTML5 video and audio tags. I am initially looking at srt and DFXP formats, because I think they are extremes of a spectrum of time-aligned text formats from simple to complex. I am preparing a specification and javascript demonstration of the itext feature and will then be looking for constructive criticism from accessibility, captioning, Web, video and any other expert who cares to provide input. My hope is to move the caption discussion forward on the WHATWG and ultimately achieve a cross-browser standard means for associating time-aligned text with media streams.

The Ogg-internal solution for subtitles - and more generally for time-aligned text - is then a logical next step towards solving accessibility. From the many discussions I have had on the topic of how best to associate subtitles with video I have learnt that there is a need for both: external text files with subtitles, as well as subtitles that are multiplexed with the media into a single binary fie. Here, I am particularly looking at the Kate codec as a means of multiplexing srt and DFXP into Ogg.

Eventually, the idea is to have a seamless interface in the Web Browser for dealing with subtitles, captions, karaoke, timed metadata, and similar time-aligned text. The user interaction should be identical no matter whether the text comes from within a binary media file or from a secondary Web resource. Once this seamless interface exists, hooking up accessibility tools such as screen readers or braille devices to the data should in theory be simple.

Now that Firefox 3.5 is released with native HTML5

This blog post collects the javascript libraries that I have found thus far and that are for different purposes, so you can pick the one most appropriate for you. Be aware that the list is probably already outdated when I post the article, so if you could help me keeping it up-to-date with comments, that would be great. :-)

Before I dig into the libraries, let me explain how fallback works with

Generally, if you’re using the HTML5

<video src="video.ogv" controls> Your browser does not support the HTML5 video element. </video>

To do more than just text, you could provide a video fallback option. There are basically two options: you can fall back to a Flash solution:

<video src="video.ogv" controls> <object width="320" height="240"> <param name="movie" value="video.swf"> <embed src="video.swf" width="320" height="240"> </embed> </object> </video>

or if you are using Ogg Theora and don’t want to create a video in a different format, you can fall back to using the java player called cortado:

<video src="video.ogv" controls width="320" height="240"> <applet code="com.fluendo.player.Cortado.class" archive="http://theora.org/cortado.jar" width="320" height="240"> <param name="url" value="video.ogv"/> </applet> </video>

Now, even if your browser support’s the

<video controls width="320" height="240"> <source src="video.ogv" type="video/ogg" /> <source src="video.mp4" type="video/mp4" /> </video>

You can of course combine all the methods above to optimise the experience for your users, which is what has been done in this and this (Video For Everybody) example without the use of javascript. I actually like these approaches best and you may want to check them out before you consider using a javascript library.

But now, let’s look at the promised list of javascript libraries.

Firstly, let’s look at some libraries that let you support more than just one codec format. These allow you to provide video in the format most preferable by the given browser-mediaframework-OS combination. Note that you will need to encode and provide your videos in multiple formats for these to work.

• mv_embed: this is probably the library that has been around the longest to provide &let;video> fallback mechanisms. It has evolved heaps over the last years and now supports Ogg Theora and Flash fallbacks.
• several posts that demonstrate how to play flv files in a
• html5flash: provides on top of the Ogg Theora and MPEG4 codec support also Flash support in the HTML5 video element through a chromeless Flash video player. It also exposes the
• foxyvideo: provides a fallback flash player and a JavaScript library for HTML5 video controls that also includes a nearly identical ActionScript implementation.

Finally, let’s look at some libraries that are only focused around Ogg Theora support in browsers:

• Celt’s javascript: a minimal javascript that checks for native Ogg Theora
• stealthisfilm’s javascript: checks for native support, VLC, liboggplay, Totem, any other Ogg Theora player, and cortado as fallback.
• Wikimedia’s javascript: checks for QuickTime, VLC, native, Totem, KMPlayer, Kaffeine and Mplayer support before falling back to Cortado support.

At the recent Open Video Conference, I was asked to chair a working group on HTML5 and the

The biggest topic around the

Unfortunately, the panel was cut short at the conference to only 30 min, so we ended up doing mostly demos of HTML5 video working in different browsers and doing cool things such as working with SVG.

The challenges that we identified and that are still ahead to solve are:

• annotation support: closed captions, subtitles, time-aligned metadata, and their DOM exposure
• track selection: how to select between alternate audio tracks, alternate annotation tracks, based on e.g. language, or accessibility requirements; what would the content negotiation protocol look like
• how to support live streaming
• how to support in-browser a/v capture
• how to support live video communication (skype-style)
• how to support video playlists
• how to support basic video editing functionality
• what would a decent media server for html5 video look like; what capabilities would it have

Here are the slides we made for the working group.

Open Video Conference: HTML and the video tag

View more presentations from Silvia Pfeiffer.

Download PDF: Open Video Conference: HML5 and video Panel

Video: Video of the session at archive.org

In the year 2000, while working at CSIRO as a research scientist, I had the idea that video (and audio) should be hyperlinked content on the Web just like any Web page. Conrad Parker and I developed the vision of a “Continuous Media Web” and called the technology that was necessary to develop “Annodex” for “annotated and indexed media”.

Not many people now know that this was really the beginning of Ogg on the Web. Until then, Ogg Vorbis and the emerging Ogg Theora were only targeted at desktop applications in competition to MP3 and MPEG-2.

Within a few years, we developed the specifications for a markup language for video called CMML that would provide the annotations, anchor points, and hyperlinks for video to make it possible to search and index video, hyperlink into video section, and hyperlink out of video sections.

We further developed the specification of temporal URIs to actually address to temporal offsets or segments in video.

And finally, we developed extensions to the Xiph Ogg framework to allow it to carry CMML, and more generally multi-track codecs. The resulting files were originally called “Annodex files”, but through increasing collaboration with Xiph, the specifications were simplified and included natively into Ogg and are now known as “Ogg Skeleton”.

Apart from specifications, we also developed lots of software to make the vision actually come true. Conrad, in particular, developed many libraries that helped develop software on top of the raw Xiph codecs, which include liboggz and libfishsound. Libraries were developed to deal with CMML and with embedding CMML into Ogg. Apache modules were developed to deal with segmenting sections from Ogg files and deliver them as a reply to a temporal URI request. And finally we actually developed a Firefox extension that would allow us to display the Ogg Theora/Vorbis videos inside a Web Browser.

Over time, a lot more sofware was developed, amongst them: php, perl and python bindings for Annodex, DirectShow filters to have Ogg Theora/Vorbis support on Windows, an ActiveX control for Windows, an authoring tool for CMML on Windows, Ogg format validation software, mobile phone support for Ogg Theora/Vorbis, and a video wiki for CMML and Ogg Theora called cmmlwiki. Several students and Annodex team members at CSIRO helped develop these, including Andre Pang (who now works for Pixar), Zen Kavanagh (who now works for Microsoft), and Colin Ward (who now works for Symbian). Most of the software was released as open source software by CSIRO and is available now either in the Annodex repository or the Xiph repositories.

Annodex technology became increasingly part of Xiph technology as team members also became increasingly part of the Xiph community, such as by now it’s rather difficult to separate out the Annodex people from the Xiph people.

Over time, other projects picked up on the Annodex technology. The first were in fact ethnographic researchers, who wanted their audio-visual ethnographic recordings usable in deeply. Also, other multimedia scientists experimented with Annodex. The first actual content site to publish a large collection of Ogg Theora video with annotations was OpenRoadTrip by Scott Shawcroft and Brandon Hines in 2006. Soon after, Michael Dale and Aphid from Metavid started really using the Annodex set of technologies and contributing to harden the technology. Michael was also a big advocate for helping Wikimedia and Archive.org move to using Ogg Theora.

By 2006, the team at CSIRO decided that it was necessary to develop a simple, cross-platform Ogg decoding and playback library that would allow easy development of applications that need deep control of Ogg audio and video content. Shane Stephens was the key developer of that. By the time that Chris Double from Firefox picked up liboggplay to include Ogg support into Firefox natively, CSIRO had stopped working on Annodex, Shane had left the project to work for Google on Wave, and we eventually found Viktor Gal as the new maintainer for liboggplay. We also found Cristian Adam as the new maintainer for the DirectShow filters (oggcodecs).

Now that the basic Ogg Theora/Vorbis support for the HTML5

I spent this week at the Open Video Conference in New York and was amazed about the 800 and more people that understand the value of open video and the need for open video technologies to allow free innovation and sharing. I can feel that the ball has got rolling - the vision developed almost 10 years ago is starting to take shape. Sometimes, in very very rare moments, you can feel that history has just been made. The Open Video Conference was exactly one such point in time. Things have changed. Forever. For the better. I am stunned.

On Jun 13th 2009 Chris DiBona of Google claimed on the WhatWG mailing list:

“If [youtube] were to switch to theora and maintain even a semblance of the current youtube quality it would take up most available bandwidth across the Internet.”

Everyone who has ever encoded a Ogg Theora/Vorbis file and in parallel encoded one with another codec will have to immediately protest. It is sad that even the best people fall for FUD spread by the un-enlightened or the ones who have their own agenda.

Fortunately, Gregory Maxwell from Wikipedia came to the rescue and did an actual “YouTube / Ogg/Theora comparison”. It’s a good read and a comparison on one video. He has put his instructions there, so anyone can repeat it for themselves. You will have to start with a pretty good quality video though to see such differences.

I’ve always thought that the most compelling reason to go with HTML5 Ogg video over Flash are the cool things it enables you to do with video within the webpage.

I’ve previously collected the following videos and demos:

First there was a demo of a potential javascript interface to playing Ogg video inside the Web browser, which was developed by CSIRO. The library in use later became the library that Mozilla used in Firefox 3.5:

Then there were Michael Dale’s demos of Metavidwiki with its direct search, access and reuse of video segments, even a little web-based video editor:

Then there was Chris Double’s video SVG demo with cool moving, resizing and reshaping of video:

and Chris kept them coming:

Then Chris Blizzard also made a cool demo for showing synchronised video and graph updates as well as a motion detector:

And now we have Firefox Director Mike Belitzer show off the latest and coolest to TechCrunch, the dynamic content injection bit of which you can try out yourself here:

It just keeps getting better!

UPDATE: Here are some more I’ve come across:

• Live ambient video frame background colour
• Piano Demo for audio tag
• BBC R&D TV
• Interactive sports results with video

Yesterday, somebody mentioned that the HTML5 video tag with Ogg Theora/Vorbis can be played back in Safari if you have XiphQT installed (btw: the 0.1.9 release of XiphQT is upcoming). So, today I thought I should give it a quick test. It indeed works straight through the QuickTime framework, so the player looks like a QuickTime player. So, by now, Firefox 3.5, Chrome, Safari with XiphQT, and experimental builds of Opera support Ogg Theora/Vorbis inside the HTML5 video tag. Now we just need somebody to write some ActiveX controls for the Xiph DirectShow Filters and it might even work in IE.

While doing my testing, I needed to go to some sites that actually use Ogg Theora/Vorbis in HTML5 video tags. Here is a list that I came up with in no particular order:

• Chris Double’s Tinyvid
• Dailymotion’s Open Video Demo (restricted to Firefox 3.5)
• Michael Dale and Aphid’s Metavid
• Archive.org’s videos
• Wikipedia’s videos
• the FOMS workshop videos

I’m sure there’s a lot more out there - feel free to post links in the comments.

Michael Dale just posted this to theora-dev. Go to one of the given URLs to install the Firefox plugin that lets you transcode video to Ogg using your Web browser.

Firefogg is developed by Jan Gerber and lives at http://www.firefogg.org/. There is a javascript API available so you can make use of Firefogg in your own Website project to allow people to upload any video and transcode it to Ogg on the fly.

Enjoy!

On Fri, Jun 5, 2009 at 7:08 AM, Michael Dale wrote: > I mentioned it in the #theora channel a few days ago but here it is with > a more permanent url: > > http://www.firefogg.org/make/advanced.html > & > http://www.firefogg.org/make/ > > These will be simple links you can send people so that they can encode > source footage to a local ogg video file with the latest and greatest > ogg encoders (presently thusnelda and vorbis). Updates to thusnelda and > possible other free codecs will be pushed out via firefogg updates ;) > > Pass along any feedback if things break or what not. > > I am also doing testing with “embed” these encoder interface. For those > familiar with jQuery: an example to rewrite all your file inputs with > firefogg enhanced inputs: $(“input:[type=‘file’]“).firefogg() … Feel > free to expeirment based on those examples. The form rewrite has mostly > only been tested in the mediaWiki context: > http://sandbox.kaltura.com/testwiki/index.php/Special:Upload > but with minor hacking should work elsewhere :) > > enjoy > —michael > > _______________________________________________ > theora mailing list > theora@xiph.org > http://lists.xiph.org/mailman/listinfo/theora >

This past week was amazing, not because of Google Wave, which everybody seems to be talking about now, and not because of Microsoft’s launch of the bing search engine, but amazing for the world of open video.

1. YouTube are experimenting with the HTML5 video tag. The demo only works in HTML5 video capable browsers, such as Firefox 3.5, Safari, Opera, and the new Chrome, which leads me straight to the next news.
2. The Google Chrome 3 browser now supports the HTML5 video tag. The linked release only supports MPEG encoded video, but that’s a big step forward.
3. More importantly even, recently committed code adds Ogg Theora/Vorbis support to Google Chrome 3’s video tag! This is based on using ffmpeg at this stage, which needs some further work to e.g. gain Ogg Kate support. But this is great news for open media!
4. And then the biggest news: Dailymotion, one of the largest social video networks, has re-encoded all their videos to Ogg Theora/Vorbis and have launched an openvideo platform. The blog post is slightly negative about video quality - probably because they used an older encoder. The Xiph community has already recommended use of recommends experimenting with the new Thusnelda encoder and the latest ffmpeg2theora release that supports it, since they provide higher compression ratios and better quality.
5. That latest ffmpeg2theora release is really awesome news by itself, but I’d also like to mention two other encoding tools that were released last week: the updated XiphQT QuickTime components, that now allow export to Ogg Theora/Vorbis directly from iMovie (I tested it and it’s awesome) and the new GStreamer command-line based python encoder gst2ogg which works mostly like ffmpeg2theora.

Overall a really exciting week for open media and HTML5 video! I think things are only going to heat up more in this space as more content publishers and more browsers will join the video tag implementations and the Ogg Theora/Vorbis support.

In January this year we had the third Foundations of Open Media software workshop for developers. The focus this year was on legal issues around codecs, Xiph and Web video (HTML5 video and video servers), authoring/editing software, and accessibility. Check out the complete set of areas of concern and community goals that we decided upon.

As every year, at the beginning of the workshop every participant provided a 5 min introduction about their field of speciality and the current challenges. These are video recorded and shared with the community.

The videos and accompanying slides have been available for about 2 months now, but I haven’t gotten around to blogging about it - apologies everyone! So, here are your star videos in reverse alphabetic order published using open source video software only:

• Viktor Gal, Xiph / Annodex liboggplay
• Timothy Terriberry, Xiph - Theora codec
• Silvia Pfeiffer, Annodex/Xiph - video a11y
• Shane Stephens, Google - liboggplaya - Robin Gareus, linuxaudio.org
• Rob Savoye, Gnash
• Peter Ross, Xvid & FFMpeg
• Michael Dale, Wikipedia & Metavid
• Jan Gerber, Xiph hacker
• Edward Hervey, Collabora - PiTiVi
• Conrad Parker, Annodex/Xiph hacker
• Charles McCathieNevile, Opera
• Benjamin Otte, swfdec
• Anuradha Suraparaju, BBC - Dirac codec

Enjoy!

Last week, I gave a brief statement on the importance of video as an enabler for broadband applications at the Public Sphere event of Senator Kate Lundy.

I found it really difficult to summarize all the things that I find important about video technology in a modern distributed online world in a 10 min speech. Therefore, I’d like to extend on some of the key points that I was trying to make in this blog post.

Video provides presence

One of the biggest problems we have with the online world is that it mostly still evolves around text. To exchange information with others, to publish, to chat (email, irc or twitter) or do our work, we mostly still rely on the written word as a communication means. However, we all know how restrictive this is - everyone who has ever seen a flame war develop on a mailing list, a friendship break over a badly formulated email, a host of negative comments posted on a mis-formulated blog post, or a twitter storm explode over a misunderstanding knows that text is very hard to get right. Lacking any sort of personal expression supporting the expressed words (other than the occasional emoticon), sentences can be read or interpreted in the wrong way.

A phone call (or skype call) is better than text: how often have you exchanged 10 or even 20 emails with a friend to e.g. arrange to meet for a beer, when a simple phone call would have solved it within seconds. But even a phone call provides a reduced set of communication channels in comparison to a personal meeting: gesture, posture, mime and motion are there to enrich communication channels and help us understand the other better. Just think about the cognitive challenges in a phone conference in comparison to the ease of speaking to people when you see them.

With communication that uses video, we have a much higher communication “bandwidth” between people, i.e. a lot less has to be actually said in words so we can understand each other, because gesture, posture, mime and motion speak for us, too. While we cannot touch each other in a video communication, e.g. for shaking hands or kissing cheeks, video provides for all these other channels of communication providing a much higher perceived feeling of “presence” to the remote person or people. When my son speaks over skype with my family in Germany, and we cannot turn on the web cam because the bandwidth and latency are too poor, he loses interest very quickly in speaking to these “soul-less” voices.

The availability of bandwidth will make it possible for humans to communicate with each other at a more natural level, feeling more engaged and involved. This has implications not just on immediate communications, such as person-to-person calls or video conferences, but on any application that requires the interaction of people.

Video requirements are the block to create new applications

Bandwidth requirements for most online applications are pretty low. Consider for example a remote surgery where a surgical expert on one end operates on a patient at a remote location with surgical staff and operating equipment. The actual data that needs to be exchanged between the surgeon and the operating machines is fairly low - they are mostly command-control data that has to be delivered at high accuracy and low delay, but does not require high bandwidth. What turns such a remote surgery scenario into a challenge with existing networks are the requirements for multiple video channels - the surgeon needs to be visible to the staff and probably to the patient - in turn, the surgeon needs to see the staff, needs to see the patient from multiple angles to gain the full picture, needs to see the supporting documents such as X-rays, schedules, blood analysis etc, and of course he needs to see the video coming from the operating equipment possibly from within the patient that gives him feedback on the actual operation.

As you can see, it is video that creates the need for high bandwidth.

This is not restricted to medical applications. Almost all new remote applications that we create end up having a huge visual requirement with multiple video streams. This is natural, since almost all remote applications involve more than one person and each person has the capability to look into different directions. Thus, the presence of each person has to be replicated and the representation of the environment has to be replicated.

Even in a simple scenario such as a video conference, a single camera and microphone are very restrictive and do not provide the ability to every participant to interact with any of the other people present, but restrict them to the person/group that the camera is currently focused on. Back channels such as affirmative side chats or mimic exchanges of opinion are lost. Multiple video channels can make up for this.

In my experience from the many projects I have been somewhat involved with over the years that tried to develop new remote applications - teleteaching at Mannheim University or the CeNTIE project at CSIRO - video is the bandwidth-needy channel, but video is not the main purpose of the application. Rather, the needs for information for the involved people are what drives the setup of the data and communication channels for a particular application.

Immediately, applications in the following areas come to mind that will be enabled through broadband:

• education: remote lectures, remote seminars, remote tutoring, remote access to research text/data
• health: remote surgery, remote expert visits, remote patient monitoring
• business: remote workplace, remote person-to-person collaboration with data sharing and visualisation, remote water-cooler conversations, remote team presence
• entertainment: remote theatre/concert/opera visit, home cinema, high-quality video-on-demand

But ultimately, there is impact into all aspects of our lives: consider e.g. the new possibilities for citizen involvement in politics with remote video technology, or collaborative remote video editing in video production, or in sports for data collection. Simply ask yourself “what would I do differently if I had unlimited bandwidth?” and I’m sure you will come up with at least another 2 or 3 new applications in your field of expertise that have not been mentioned before.

Technical challenges

Video (with audio) is an inherently volatile data stream that is highly sensitive to specific kinds of networking issues.

End-to-end delays such as are typical with satellite-based connections destroy the feeling of presence and create at best awkward communications, at worst destructive feedback-loops in live operations. Unfortunately, there is a natural limit to the speed in which data can flow between two points. Given that the largest distance between two points on earth is approx 20,000 km and the speed of light is approx 300,000 km/s, a roundtrip must take at least 133ms. Considering that humans can detect a delay as small as 10ms in a remote communication and are really put off by a delay of 100ms, this is a technical challenge that we will find hard to overcome. It shows, however, that it is a technical requirement to minimize end-to-end dealys as much as possible.

Packet jitter is another challenge that video deals with badly. In networks, packets cannot easily be guaranteed to arrive at a certain required rate. For example, video needs to play back at a fixed picture rate (typically 25 frames per second) for humans to be able to view it as smooth motion. Whether video is transferred live or from a file, video packets are required to arrive at a certain rate such that the pictures can be decoded and displayed at the expected rate. The variance in delay of packets arriving because of network congestion is called packet jitter. If packet jitter is high, the video will either have to stop and buffer packets until enough video frames have arrived for it to display again, or it will have to drop packets and therefore video frames to keep in sync with a live stream. Typically the biggest problem of dropping packets is the drop-out of audio - while we can tolerate some drop-outs in video, audio drop-outs are unacceptable to maintain a conversation.

In most of the application scenarios, there is a varying need for video quality.

For example, a head shot of a person that is required for communication doesn’t need high-quality video - it is sufficient if the person can be seen and the communication can be held. The audio resolution can be telephone quality (i.e. 8kHz audio sampling rate) and the video can be highly compressed and at a smallish resolution (e.g. 320x240 px) giving standard skype quality video which requires about 400Kbps in bandwidth.

At the other end of the scale are e.g. medical and large-screen applications where a high sound quality is required e.g. to hear heart beats properly (i.e. 48-96kHz audio sampling rate) and the video can’t be compressed (much) so as not to introduce artifacts, which gives at a high HDTV resolution of e.g. 1920x1080px bandwidth requirements of 30Mbps compressed - uncompressed would be about triple that.

So, depending on the tolerance of the application to picture size, compression artifacts, and the number of parallel video streams required, bandwidth requirements for video can be relatively low or really high.

Further technical issues around video are that online video can be handled differently to analog video. The video can have all sorts of metadata associated with it - it can have hyperlinks to other content - it can be accompanied by advertising in more flexible ways - and it can be automatically personalised towards the needs of the individual viewers, just to name a few rich functions of online video. It is here where a lot of new ideas for monetisation will evolve.

Non-technical challenges

Apart from technical challenges, the use of video also creates issues in other dimensions.

People are worried about their behaviour as it is always potentially recorded and thus may not perform their duties with the same focus and concentration as is necessary.

People are worried about video connections always being potentially enabled and thus having potentially a remote listener/viewer that is unwanted.

On top of such privacy issues come issues in data security as increasingly data is distributed remotely.

We should also not forget that there are people that have varying requirements for their communication. A large challenge for such new applications will be to make them accessible. For example the automated creation of captions for remote video communication may well turn out to be a major challenge, but also an opportunity for later archiving and search.

When looking at the expected move of professional video content from TV to online, there are more issues about copyrighted content and usage rights - mostly this has to do with legacy content where online use was not considered in licensing agreements. This is a large inhibitor e.g. for Australia in creating a Hulu-like service.

In fact, monetisation is a huge issue, since video is not cheap: there is a cost in the development of applications, there is a cost in bandwidth, in storage, and a cost in content production that has to be covered somewhere. Simply expecting the user to pay for being online and then to pay again for each separate application, potentially subscribing to a multitude of services, may not be the best way to cope with the cost. Advertising will certainly play a big role in the monetisation mix and new forms of advertising will emerge, such as personalised permission-based advertising based on the information available about a person e.g. through their Google searches.

In this context, the measurement of the use of video in bandwidth, storage and as part of an application will be a big enabler towards figuring out how to pay for all the involved expenditure and what new monetisation models to come up with.

Further in the context of cost and monetisation it should be added that the use of open source software, in particular open source video technology such as open codecs can help bring down cost while at the same time create more interoperability. For example, if Skype used an open codec and open protocols rather than their proprietary technology, other applications could be built using the skype infrastructure and user base.

Approach to developing good new applications

These are just the challenges for video streams themselves. However, in new applications, video streams will just be a tool for creating an integral application, ultimately driven by the processes and data needs of the application. The creation of all the other parts of the application - the machinery, control panels, the data pools, the processes, the human interface, security and privacy measures etc - are what make up the product challenge. A product ultimately has to function in a way that makes it a usable tool in achieving a certain outcome. Unless the use of the product becomes natural and the distance disappears from the minds of the people involved, a remote application does not succeed.

The CeNTIE project, the approach towards the development of new remote applications was to assume no limits on available bandwidth. Then a challenge would be identified in an application area, e.g. in the medical space, and a prototype would be built with lots of input from the domain experts. Then the prototype would actually be deployed into a real working situation and tested. The feedback from the domain experts would be used to improve the application with further technology and improved processes. Ultimately, a usable setup would emerge, which was then ready to be turned into a product for commercialisation.

We have the capabilities here in Australia to develop world-class new applications on high-bandwidth networks. We need to support this further with bandwidth - hopefully the NBN will achieve this. But we also need to support this further with commercialisation support - unfortunately most of the applications that I saw being developed at the CSIRO never made it past the successful prototype. But this is fodder for another blog post at a different time.

Finally, I’d like to point out that we also have a large challenge in overcoming tradition. Most of us would be challenged to trust a doctor and his equipment for doing a surgical operation on our body from a remote location. There are issues of trust and culture involved that may take us a while to deal with and accept.

UPDATE (11/6/09): It seems that CISCO’s latest report, which predicts global IP traffic to increase 5-fold over the next 3 years, agrees with the analysis that most of this increase will be caused by video.

After posting only a month ago about the new Thusnelda release, there continues to be good news from the open codec front.

Monty posted last week about further improvements and this time there are actual statistics thanks to Greg Maxwell. Looking at the PSNR (peak signal-to-noise ratio) measure, the further improved Thusdnelda outstrips even the X.264 implementation of H.264.

Don’t get me wrong: PSNR is only one measure, it is an objective measure and the statistics were only calculated on one particular piece. Further analysis are needed, though these are very encouraging statistics.

This is important not just because it shows that open codecs can be as good in quality as proprietary ones. What is more important though is that Ogg Theora is royalty free and implementable in both proprietary and free software browsers.

H.264’s licensing terms, however, will really kick in in 2010, so that may well encourage more people to actually use Ogg Theora/Vorbis (or another open codec like Ogg Dirac/Vorbis) with the new HTML5 video element.

Those who know me well know that a few years ago (in fact, almost 10 years now) we developed the Annodex set of technologies at the CSIRO in a project called “Continuous Media Web”.

The idea was to make time-continuous data (read: audio and video) a integral part of the Web. It would be possible to search for media through standard search engines. It would be possible to link into and out of media as we link into and out of Web pages. It would be possible to mash up video from different Web servers into a single media stream just like we are able to mash up images, text and other Web resources from different Web servers.

As you are all aware, we have made huge steps towards this vision in the last 10 years. We now have what is called “universal search” - search engines like Google and Yahoo don’t return only links to HTML pages any longer, but return links to videos and images just as well.

But it doesn’t go far enough yet - even now we still cannot link into a long-form video to the right fragment that has the exact context of what we have been searching for.

In the Annodex project we implemented a working version of such a deep universal search engine in the year 2003 on top of the Panoptic search engine (a enterprise search engine developed by CSIRO, later spun out and now sold as Funnelback).

The basis for our implementation was the combination of specifications that we developed around Ogg:

• An extension on Ogg that allows to create valid Ogg streams from subparts of Ogg streams - this is now part of Ogg as Skeleton.
• A means of annotating Ogg streams with time-aligned text that could be interleaved with the Ogg media stream to produce streams that knew more about themselves - the format was called CMML for Continuous Media Markup Language.
• And an extension to the URI addressing of Ogg streams using temporal URIs.

I am very proud that in the last 2 years, the development of a generic media fragment URI addressing approach has been taken up by the W3C and Conrad Parker and I are invited experts on the Working Group.

I am even more proud that the Working Group has just published a First Public Working Draft of a document called “Use cases and requirements for Media Fragments”. It contains a large collection of examples for situations in which users will want to make use of media fragments. It defines that the key dimensions of fragmentation that need to be specified are:

1. Temporal fragmentation
2. Spatial fragmentation
3. Track fragmentation
4. Name fragmentation

Beyond mere use cases and requirements, the document also contains a survey of technologies that address multimedia fragments.

In a first step towards the development of a Media Fragments W3C Recommendation, this document also discusses a proposed syntax for media fragment URI addressing and proposes different processing approaches. These sections will eventually be moved into the recommendation and are the most incomplete sections at this point.

To explain some of the approaches that are being proposed in more detail, here are some examples of media fragment URIs that are proposed through this WD:

• http://www.example.com/example.ogv#t=10s,20s - addresses the fragment of example.ogv that lies between the 10s and the 20s offset
• http://www.example.com/example.ogv#track='audio' - addresses the track called “audio” in the example.ogv file
• http://www.example.com/example.ogv#track='audio'&t=10s,20s - addresses the track called “audio” on the subpart between the 10s and 20s offset in the example.ogv file
• http://www.example.com/example.ogv#xywh=pixel:160,120,320,240 - addresses the example.ogv file but with a video track cut to a region of the size 320x240px positioned at 160x120px offset
• http://www.example.com/example.ogv#id='chapter-1' - addresses the named fragment called “chapter-1” which is specified through some mechanism, e.g. Kate or CMML in Ogg

Note that the latter example works only if the encapsulation format provides a means of specifying a name for a fragment. Such a means is e.g. available in QuickTime through chapter tracks, or in Flash through cuepoints.

We know from our experience with Ogg that temporal fragmentation can be realized. For track addressing it is possible to use the recently developed ROE specification. The id tags used there could be included into Skeleton and then be used to address tracks by name. What concerns spatial fragmentation on Ogg Theora - I don’t think it can be achieved for an arbitrary rectangular selection without transcoding.

The next tasks of the Working Group are in creating implementations for these specifications on diverse formats and thus finding out which processes work the best.

On Thursday, Ralph Giles announced the alpha release of Thusnelda, the next generation implementation of the Theora encoder.

The primary change in comparison to the first generation Theora implementation is a completely rewritten encoder with vastly improved quality vs. bitrate in the default vbr/constant-quality mode, and better tracking of the target bitrate in cbr mode.

Jan Schmidt made some experiments to compare the two versions and found a 20% compression improvement for no loss in quality while at the same time also achieving a 14% improvement in speed.

In 2007 there was a huge (and mostly uninformed) discussion about the lack of quality of Theora on slashdot and Monty wrote a reply clarifying some of the misinformation and explaining the shortcomings that the Xiph team wants to work on to improve the codec. A lot of these issues are now being attacked through the community and through the financial support of the Mozilla grant.

Theora is now much closer to H.264, if not even having overtaken it in some dimensions. Congratulations to the Theora team, in particular Tim Terriberry, Monty, and Ralph Giles. Once this Theora generation is released, it will be a competitive modern video codec.

Quick Press: the awesome guys from FFmpeg have made an official release this week. The days of pain for compiling and packaging FFmpeg have come to an end. FFmpeg is being used in many Web video sites to provide backend transcoding - FAIK that includes YouTube. I use FFmpeg for all my transcoding needs and it has never let me down. Open media software to the win!

Paul Rouget this week published another example implementation for using srt with HTML5 video with a javascript library. This is at least the fourth javascript implementation that I know of for attaching srt subtitles to the video element.

It is great to see such a huge need for this. At the same time I am also worried about the amount of incompatible implementations of this feature. It will inhibit search engines from realising which text relates to and describes a particular video. It will also inhibit accessibility technology such as screen readers or braille devices from realising there is text that would be necessary to be rendered.

A standard means of associating srt (or other format) subtitle files with the video tag is really necessary. So, where are we at with this?

Recently, Greg Millam from Google posted a proposal to WHATWG, that shares a lot of elements with the proposal that has been previously discussed between Mozilla, Xiph, and Opera, the current state of which is summarised in the Mozilla wiki. No implementation into a Browser has been made yet, but initial implementations in javascript exist. I think that we will ultimately come out with a harmonised solution between the browser vendors. It just needs implementation work and continuous improvement.

At the same time, in-band captions that come multiplexed within the Ogg file are also being progressed. At Xiph we are now focusing on using Ogg Kate for these purposes - it really don’t make much sense to invent another codec when Ogg Kate is already so close to solving most problems. So, between the developer of Ogg Kate and myself, we are preparing a Google Summer of Code project that should see a implementation for Firefox 3.1 that is capable of extracting the text from an Ogg file that has a Kate track and displaying that track as though it was a srt file. If you are interested, shoot me an email!

UPDATE: Firefox 3.1 is apparently now called Firefox 3.5 - sorry guys. :-)

ANOTHER UPDATE: My post seemed to imply that Firefox 3.5 will have Ogg Kate support. This is not the case. There is a patch for Firefox and liboggplay to provide Ogg Kate support into Firefox and this patch will be the basis of the Summer of Code project. The student will then work mostly on implementing a comprehensive javascript library to display Ogg Kate encoded time-aligned text (read: captions, Karaoke etc) in the Web browser. This is a proof-of-concept and a first step towards standardising the handling of time-aligned text in Web browsers that suppor the HTML5 video tag.

Michael Dale from Metavid has posted an article on why we are about to hit the tipping point for professional video producers to move to open media codecs. His statement is that it’s not just because the H.264 licensing grace period is about to end, but has a lot to do with the support that open media codecs are increasingly seeing on the Web, where the next big professional video market will happen. I totally agree.

The increasing amount of open tools on the Web for open codecs was all stimulated by the HTML5

Native editing of Ogg Theora/Vorbis video is still a challenge, but any professional video producer will not want to move away from their favorite tool for editing video anyway, so it is a matter of having an export function included into these professional editors. While such export functions will take some time to emerge in these proprietary editors, the use of ffmpeg2theora and similar transcoding tools will be perfectly sufficient to fulfill these needs.

If you want to see why open source codecs and open video technology make such a difference, just go and check out Metavid, the best software around for wiki-style editing of time-aligned annotations for long-form video. I look forward to all the cool new applications that will emerge with open media software on the Web - applications that are not possible with proprietary video technology because of their lack of flexibility, interoperability, and adaptability.

I am a slacker, I know - sorry. FOMS happened almost 4 weeks ago and I have neither blogged about it nor uploaded the videos.

So, you will have to take my word for it for the moment: it was a totally awesome and effective workshop that led to a lot of work being started during LCA and having an impact far beyond FOMS.

Every year, the discussions we are having at FOMS are captured in so-called community goals. These are activities that we see as top priorities for open media software to be addressed to improve its use and uptake.

You can read up on our 2009 community goals here in detail. They fall into the following 10 sections:

1. Patent and legal issues around codecs
2. Ogg in Firefox: liboggplay
3. Authoring tools for open media codecs
4. Server Technology for open media
5. Time-aligned text and accessibility challenges
6. FFmpeg challenges
7. GStreamer challenges
8. Dirac challenges
9. Jack challenges
10. OpenMAX challenges

In this post, I’d just like to point out some cool activities that have already emerged since FOMS.

I’ve already written on the patents issue and how OpenMediaNow will hopefully be able to make a difference here.

Liboggplay provides a simple API to decoding and playback of Ogg codecs and is therefore in use for baseline Ogg Theora support in Firefox 3.1. A bunch of bugs were found around it and the opportunity of having Shane Stephens, its original developer, together with Viktor Gal, its new maintainer, in the same room made for a whole lot of bug fixes. The $100K Mozilla grant towards the work of Xiph developers that was announced at FOMS will further help to mature this and other Xiph software. Conrad Parker, Viktor Gal, and Timothy Terriberry, the Xiph developers that will cut code under this grant, were incidentally all present at FOMS.

The discussion about the need for authoring software support for open media codecs is always a difficult one. We all know that it is important to have usable and graphically attractive authoring tools in order to get adoption. However, looking at reality, it is really difficult to design and implement a GUI authoring tool such as a video editor to a competitive quality. In other areas, it has also taken quite some time to gain good authoring software such as e.g. the Gimp or Inkscape. Plus there is the additional need to make it cross-platform. With video, often the underlying editing functionality is missing from media frameworks. Ed Hervey explained how he extended gstreamer with the required subroutines and included them into the gstreamer python plugin, so now he will be able to focus on user interface work in PiTiVi rather than the underlying video editing functionality.

The authoring discussion smoothly led over to the server technology discussion. Robin Garvin explained how he implemented a server-side video editor through EDLs. Michael Dale showed us the latest version of his video editor in the Mediawiki Metavid plugin. And Jan Gerber showed us the Firefogg Firefox plugin for transcoding to Ogg. Web-based tools are certainly the future of video authoring and will make a huge difference in favor of Ogg.

Then there was the accessibility discussions. During FOMS I was in the process of writing up my final report on the Mozilla video accessibility project and it was really important to get input from the FOMS community - in particular from Charles McCathyNevile from Opera, Michael Dale from Metavid/Wikipedia/Archive.org and Jan Gerber. In the end we basically agreed that a lot of work still needs to be done and that a standard way of providing srt support into HTML5 through Ogg, but also out-of-band will be a great step forward, though by far not the final one.

The remaining topics were focused discussions on how to improve support, uptake or functionality of specific tools. Peter Ross took FOMS concerns about ffmpeg to the ffmpeg community and it seems there will be some changes, in particular an upcoming ffmpeg release. Ed Hervey took home a request for new API functions for gstreamer. Anuradha Suraparaju talked with Jan Gerber about support of Dirac in firefogg and with Viktor Gal about support in liboggplay. Further, the idea of libfisheye was born to have a similar abstraction library for Ogg video codecs as libfishsound is for Ogg audio codecs.

As can be seen, there are already some awesome outcomes from FOMS 2009. We are looking forward to a FOMS 2010 in Wellington, New Zealand!

In support of spreadfirefox.com, OZprod (no, they are not Australian, but French) this week released a video on Dailymotion that shows the cool stuff you can do with a video tag and Theora support in Firefox. It’s super-cool!

You will have to install Firefox 3.1 to try it our for yourself here.

Today, Wikimedia and Mozilla announced a grant provided by the Mozilla Corporation towards maturing the support of Ogg in the Firefox Web browser. I’m happy to have helped in making the proposal become concrete and now we have the following three Xiph developers working on it:

• Viktor Gal - the maintainer of liboggplay
• Conrad Parker - the key developer of multiple Ogg support libraries, in particular liboggz
• Tim Terriberry - the key developer of Ogg Theora

Viktor will work towards stabilising the current Ogg Theora support in Firefox, Conrad will work towards Ogg network seeking, language selection and improved library support, and Tim will include the new Thusnelda Theora encoder improvements into Theora mainstream.

Looking forward to awesome Firefox video technology!

UPDATE - Other posts on this topic:

• Chris Blizzard, Mozilla
• Mike Shaver, Mozilla
• Mozilla blog
• Michael Dale, Wikimedia
• wired article
• Ajaxian

During the LCA 2009 Multimedia Miniconf, I gave a talk on video accessibility. Videos have been recorded, but haven’t been published yet. But here are the talk slides:

Lca2009 Video A11y

View more presentations or upload your own. (tags: deaf captions)

I basically gave a very brief summary of my analysis of the state of video accessibility online and what should be done. More information can be found on the Mozilla wiki.

The recommendation is to support the most basic and possibly the most widely online used of all subtitle/captioning formats first: srt. This will help us explore how to relate to out-of-band subtitles for a HTML5 video tag - a proposal of which has been made to the WHATWG and is presented in the slides. It will also help us create Ogg files with embedded subtitles - a means of encapsulation has been proposed in the Xiph wiki.

Once we have experience with these, we should move to a richer format that will also allow the creation of other time-aligned text formats, such as ticker text, annotations, karaoke, or lyrics.

Further, there is non-text accessibility data for videos, e.g. sign language recordings or audio annotations. These can also be multiplexed into Ogg through creating secondary video and audio tracks.

Overall, we aim to handle all such accessibility data in a standard way in the Web browser to achieve a uniform experience with text for video and a uniform approach to automating the handling of text for video. The aim is:

• to have a default styling of time-aligned text categories,
• to allow styling override of time-aligned through CSS,
• to allow the author of a Web page with video to serve a multitude of time-aligned text categories and turn on ones of his/her choice,
• to automatically use the default language and accessibility settings of a Web browser to request appropriate time-aligned text tracks,
• to allow the consumer of a Web page with video to manually select time-aligned text tracks of his/her choice, and
• to do all of this in the same way for out-of-band and in-line time-aligned text.

At the moment, none of this is properly implemented. But we are working on a liboggtext library and are furher discussing how to include out-of-band text with the video in the Webpage - e.g. should it go into the Webpage DOM or in a separate browsing context.

If you feel strongly about video a11y, get involved at http://lists.xiph.org/mailman/listinfo/accessibility.

The “Open Source Developer Conference” 2008 took place in Sydney between 2nd-5th December. I gave two talks at it:

• Metavidwiki: when you need a Web video solution
• An Open Source “YouTube”

As requested by the organisers, I just uploaded the slides to Slideshare, which incidentally can now also synchronise audio recordings of your talk to your slides. Here are my slides - even if they don’t actually give you much without the demo:

SlideShare | Get your Presentation Pack

I had lots of fun giving the talks. The “YouTube” one talks about the Fedora Commons document repository and how we turned it into a video transcoding, keyframing, publication and sharing system. The one on Metavidwiki shows off the Annodex-technology using video wiki that is in use by Wikipedia. Most certainly, I also mentioned that open source CMS systems now have video extensions. However, they are not video-centric sites in general.

Of all the open source Web video technology, I find Fedora Commons and MetaVidWiki the most exciting ones. The former is exciting for its ability to archive and publish video and their metadata in a way that integrates with document management. The latter is even more exciting for using Ogg and the open Annodex technologies to create a completely open source system using open codecs, and for being the world’s second video wiki (just after CMMLwiki), but the first one to achieve wide uptake.

During the last week, I made a proposal to the HTML5 working group about how to support out-of-band time-aligned text in HTML5. What I mean by that is basically: how to link a subtitle file to a video tag in HTML5. This would mirror the way in which in desktop-players you can load separate subtitle files by hand to go alongside a video.

My suggestion is best explained by an example:

<video src="http://example.com/video.ogv" controls> <text category="CC" lang="en" type="text/x-srt" src="caption.srt"></text> <text category="SUB" lang="de" type="application/ttaf+xml" src="german.dfxp"></text> <text category="SUB" lang="jp" type="application/smil" src="japanese.smil"></text> <text category="SUB" lang="fr" type="text/x-srt" src="translation_webservice/fr/caption.srt"></text> </video>

• “text” elements are subelements of the “video” element and therefore clearly related to one video (even if it comes in different formats).
• the “category” tag allows us to specify what text category we are dealing with and allows the web browser to determine how to display it. The idea is that there would be default display for the different categories and css would allow to override these.
• the “lang” tag allows the specification of alternative resources based on language, which allows the browser to select one by default based on browser preferences, and also to turn those tracks on by default that a particular user requires (e.g. because they are blind and have preset the browser accordingly).
• the “type” tag allows specification of what actual time-aligned text format is being used in this instance; again, it will allow the browser to determine whether it is able to decode the file and thus make it available through an interface or not.
• the “src” attribute obviously points to the time-aligned text resource. This could be a file, a script that extracts data from a database, or even a web service that dynamically creates the data based on some input.

This proposal provides for a lot of flexibility and is somewhat independent of the media file format, while still enabling the Web browser to deal with the text (as long as it can decode it). Also note that this is not meant as the only way in which time-aligned text would be delivered to the Web browser - we are continuing to investigate how to embed text inside Ogg as a more persistent means of keeping your text with your media.

Of course you are now aching to see this in action - and this is where the awesomeness starts. There are already three implementations.

First, Jan Gerber independently thought out a way to provide support for srt files that would be conformant with the existing HTML5 tags. His solution is at http://v2v.cc/~j/jquery.srt/. He is using javascript to load and parse the srt file and map it into HTML and thus onto the screen. Jan’s syntax looks like this:

<script type="text/javascript" src="jquery.js"></script> <script type="text/javascript" src="jquery.srt.js"></script> <video src="http://example.com/video.ogv" id="video" controls> <div class="srt" data-video="video" data-srt="http://example.com/video.srt" />

Then, Michael Dale decided to use my suggested HTML5 syntax and add it to mv_embed. The example can be seen here - it’s the bottom of the two videos. You will need to click on the “CC” button on the player and click on “select transcripts” to see the different subtitles in English and Spanish. If you click onto a text element, the video will play from that offset. Michael’s syntax looks like this:

<video src="sample_fish.ogg" poster="sample_fish.jpg" duration="26"> <text category="SUB" lang="en" type="text/x-srt" default="true" title="english SRT subtitles" src="sample_fish_text_en.srt"> </text> <text category="SUB" lang="es" type="text/x-srt" title="spanish SRT subtitles" src="sample_fish_text_es.srt"> </text> </video>

Then, after a little conversation with the W3C Timed Text working group, Philippe Le Hegaret extended the current DFXP test suite to demonstrate use of the proposed syntax with DFXP and Ogg video inside the browser. To see the result, you’ll need Firefox 3.1. If you select the “HTML5 DFXP player prototype” as test player, you can click on the tests on the left and it will load the DFXP content. Philippe actually adapted Jan’s javascript file for this. And his syntax looks like this:

<video src="example.ogv" id="video" controls> <text lang='en' type="application/ttaf+xml" src="testsuite/Content/Br001.xml"></text> </video>

The cool thing about these implementations is that they all work by mapping the time-aligned text to HTML - and for DFXP the styling attributes are mapped to CSS. In this way, the data can be made part of the browser window and displayed through traditional means.

For time-aligned text that is multiplexed into a media file, we just have to do the same and we will be able to achieve the same functionality. Video accessibility in HTML5 - we’re getting there!

Pia posted details about a OLPC rollout to PNG for February 2009. If you are interested in volunteering for this and other OLPC rollout projects you should hop on over to OLPC Friends wiki page and leave your details. It’s an amazing opportunity to make a difference.

As part of my accessibility work for Mozilla and Xiph, it is necessary to define how time-aligned text such as subtitles, captions, or annotations, are encapsulated into Ogg. In the fansubber community this is called “hard subtitles” as opposed to “soft subtitles” which are subtitles that stay in a text file and are loaded separately to the video file into a media player and synchronised with the video by the media player. (as per comment below, all text annotations are “soft” - or also “closed”.)

I can hear you ask: so how do I do subtitles/captions with Ogg now? Well, it would have been possible to simply choose one subtitling format and map that into Ogg, then ask everyone to just use that one format and be done. But which one to choose? And why prefer a simpler one over a more complex one? And why just do subtitles and not any other time-aligned text?

So, instead, I analysed what types of time-aligned text “codecs” I have come across. Each one would have a multitude of text formats to capture the text data, because it is easy to invent a new format and standardisation hasn’t really happened in this space yet.

I have come up with the following list of typical time-aligned text codecs:

• CC: closed captions (for the deaf)
• SUB: subtitles
• TAD: textual audio descriptions (for the blind - to be transferred to braille or TTS)
• KTV: karaoke
• TIK: ticker text
• AR: active regions
• NB: metadata & semantic annotations
• TRX: transcripts / scripts
• LRC: lyrics
• LIN: linguistic markup
• CUE: cue points, DVD style chapter markers and similar navigational landmarks

Let me know if you can think of any other classes of video/audio-related time-aligned text.

All of these texts can be represented in text files with some kind of time marker, and possibly some header information to set up the interpretation environment. So, the simplest way of creating a representation of these inside Ogg was to define a generic mapping for time-aligned text into Ogg.

The Xiph wiki holds the current draft specification for mapping text codecs into Ogg. For anyone wanting to map a text codec into Ogg, this should provide the framework. The idea is to separate the text codec’s data into header data and into timed text segments (which can have all sorts of styling and other information with it). Then, the mapping is simple. An example for srt is described on the wiki page.

The specification is still in draft status, because we’re still expecting feedback. In fact, what we now need is people trying an implementation and providing fixes to the specification.

To map your text codec of choice into Ogg, you will probably requrie further mapping specifications. Dependent on how complex your text codec of choice is, these additional mapping specifications may be rather simple or quite complicated. In the case of srt, it should be trivial. Considering the massive amount of srt already freely available online, the srt mapping may well have a really large impact. Enough hits. Let me know if you’re coding up something!

My next duty is to look for a representation that is generic enough to provide representations for any of the above listed text codecs. This representation is what will need to be available to a Web Browser when working with a Web video that has related text. Current contenders are OggKate and W3C TimedText, but I am not sure if either are too restrictive. I am indeed looking for the next generation of captioning technology that will be able to provide any type of time-aligned text that relates to audio/video.

Today, there were so many news that I can only summarise them in a short post.

The guys from Collabora have announced that they are going to support the development of PiTiVi - one of the best open source video editors around. They are even looking to hire people to help Christian Schaller, the author of PiTiVi. The plan is to have a feature-rich video editor ready by April next year that is comparable in quality to basic proprietary video editors.

The BBC Dirac team have today announced a ffmpeg2dirac software package, which is built along the same lines as the commonly used ffmpeg2theora and of course transcodes any media stream to Ogg Dirac/Vorbis. With Ogg Dirac/Vorbis playback already available in vlc and mplayer, this covers the much needed creation side of Ogg Dirac/Vorbis files. Dirac is an open source, non-patent-encumbered video codec developed by the BBC. It creates higher quality video than Theora at comparable bitrates.

The FOMS - Foundations of Open Media Software hacker workshop for open media software announced today the current list of confirmed participants for the January Workshop. It seems that this year we have a big focus on open video codecs, on browser support of media, on open Flash software, and on media frameworks. It is still possible to take part in the workshop - check out the CFP page.

Finally an important security message: Mozilla has decided to put a security measure around the HTML5 audio and video elements that will stop them from being exploited by cross-site scripting exploits. Chris Double explains the changes that are necessary to your setup to enable your published audio or video to be displayed on domains that are different to the domain on which these files are hosted.

While the open source codec “Theora” has been available since 2004 in a stable format, the open source community is very careful about giving any piece of software the “1.0” stamp of quality and libtheora has been put under scrutiny for years.

Today, libtheora 1.0 was finally released - rejoice and go ahead using it in production!

More hard-core improvements to libtheora are also in the pipeline under a version nick-named “Thusnelda”, improving mostly on quality and bit-rate.

I spent last week in France, near Cannes, at the W3C TPAC meeting. This is the one big meeting that the W3C has every year to bring together all (or most) of the technical working groups and other active groups at the W3C.

It was not my first time at a standards body meeting - I have been part of ISO/MPEG before and also of IETF, and spoken with people at IEEE and SMPTE. However, this time was different. I felt like I was with people that spoke my language. I also felt like my experience was valued and will help solving some of the future challenges for the Web. I am very excited to be an invited expert on the Media Fragments and Media Annotations working groups and be able to provide input into HTML5.

In the Media Fragments working group we are developing a URI addressing scheme that enables direct linking to media fragments, in particular temporal and spatial segments. Experience from our earlier temporal URI scheme is one of the inputs to the scheme. Currently it looks likely that we will choose a scheme that has ”#” in it and then require changes to browsers, Web proxys, and servers to enable delivery of media fragments.

In the Media Annotations working group we are deciding upon an ontology to generically describe media resources - something based on Dublin Core but more extended and more appropriate for audio and video. We are currently looking at Adobe’s XMP specification.

As for HTML5 - there was not much of a discussion at the TPAC meeting about the audio and video elements (unless I missed it by attending the other groups). However, from some of the discussions it became clear to me that they are still in very early stage of specification and much can be done to help define the general architecture of how to publish video on the Web and its metadata, help define javascript APIs and DOM models, and help define accessibility.

I actually gave a lightning talk about the next challenges of HTML5 video at TPAC (see my “video slides”) which points out the need for standard definitions of video structure and annotations together with an API to reach them. I had lots of discussions with people afterwards and also learnt a lot more about how to do accessibility for Web video. I should really write it up in an article…

Of course, I also met a lot of cool people at TPAC, amongst them Larry Masinter, Ian Hickson, and Tim Berners-Lee - past and new heros of Web standards. :-) It was totally awesome and I am very grateful to Mozilla for sending me there and enabling me to learn more about the greater picture of video accessibility and the role it plays on the Web.

Nathan Willis wrote a very comprehensive article on our accessibility work for Ogg. A good read!

Ian Hickson, the main editor of the new HTML5 specification, gave a talk about some of the cool new features in HTML5 and some of the early implementations of these features in different browsers.

It’s pretty long demo with 1:25 hrs but he types in all the code manually, so you can re-do all of the demos yourself. The script of the talk with code examples is here.

The first 5 minutes are about the new video element and really worth watching.

Also, at 1:11 hrs Ian is asked about the choice of baseline codecs, in case you want to hear him speak what he has publicly written elsewhere.

I can’t wait to marry the video features with:

1. the new media fragment addressing schemes in development at the W3C
2. captions, subtitles and other timed text annotations for videos.

These will allow us search for specific topics directly inside the video (such as “form controls” in Ian’s video) and to hyperlink straight into these time offsets. A completely new world is coming!

Ogg has struggled for the last few years to recommend the best format to provide caption and subtitle support for Ogg Theora. The OGM fork had a firm focus on using subtitles in SRT, SSA or VobSub format. However, in Ogg we have always found these too simplistic and wanted a more comprehensive solution. The main aim was to have timed text included into the video stream in a time-aligned fashion. Writ, CMML, and now Kate all do this. And yet, we have still not defined which is the one format that we want everybody to support as the caption/subtitle format.

With Ogg Theora having been chosen by Mozilla as the baseline video codec for Firefox and the HTML5

As a first step in this direction, Mozilla have contracted me to analyse the situation and propose a way forward.

The contract goes beyond simple captions and subtitles though: it analyses all accessibility requirements for video, which includes audio annotations for the blind, sign language video tracks, and also transcripts, karaoke, and metadata tracks as more generic timed text example tracks. The analysis will thus be about how to enable a framework for creating a timed text track in Ogg and which concrete formats should be supported for each of the required functionalities.

While I can do much of the analysis myself, a decision on how to move forward can only be made with lots of community input. The whole process of this analysis will therefore be an open one with information being collected on the Mozilla Wiki, see https://wiki.mozilla.org/Accessibility/Video_Accessibility .

An open mailing list is also set up at Xiph to create a discussion forum for video accessibility: accessibility@lists.xiph.org. Join there if you’d like to provide input. I am particularly keen for people with disabilities to join because we need to get it right for them!

I am very excited about this project and feel honoured for being supported to help solve accessibility issues for Ogg and Firefox! Let’s get it right!

Yesterday was a long and fascinating day of discussions about innovation in Australia.

At this year’s Pearcey Medal and NSW Pearcey State Award event, the focus was on the recently released innovation report from Terry Cutler with a focus on the effects on ICT (Information and Communication Technology).

If you only look at the summary report, you will miss the structure of the full report, which is why I have outlined it here:

• Chapter 1 stalling not sprinting
• Chapter 2 the national innovation system
• Chapter 3 innovation in business
• Chapter 4 the case for a public role in innovation
• Chapter 5 strengthening people and skills
• Chapter 6 building excellence in national research
• Chapter 7 information and market design
• Chapter 8 tax and innovation
• Chapter 9 market facing programs
• Chapter 10 innovation in government
• Chapter 11 national priorities for innovation
• Chapter 12 governance of the innovation system

I took home a few very interesting observations from reading the reports and from the discussions at the Pearcey event.

But before I can comment, I have to state which organisations I see as ICT innovators in Australia.

• The government-funded ones are the Universities, NICTA and CSIRO (CRCs fall in the same general class).
• The big drivers of transforming new research outcomes into business are start-ups and the SMEs.
• Further innovation happens in large companies and multi-nationals with a stronger focus on incremental innovation rather than disruptive innovation.
• In ICT, we need to add another big driver of innovation: open source software. I’ll explain this later in more depth.

**The following observations on VenturousAustralia and what I took away from the Pearcey awards are on these topics:

1. Support of fundamental R&D in ICT
2. Commercialisation of ICT innovation
3. Enabling SMEs to succeed
4. Regard for the contribution of Open Source

**

TOPIC: ICT and innovation

At the Pearcey awards, we had long discussions about whether ICT was appropriately represented in the report and whether the recommendations are pushing ICT further into a supportive role while missing our opportunities to innovate and lead in core ICT.

It is generally accepted that ICT has a major effect on the productivity increase of almost all Australian industries. DCITA reports show that in service industries, between 35 and 65 per cent of productivity growth is estimated to have been driven by technological factors

Today, three of the worlds that I am really engaged in and that tend to not have much in-common with each other seemed to come to a sudden overlap.

The three worlds I am talking about are:

• Social video publishing (through my company Vquence)
• One Laptop Per Child (I am really keen to see more OLPC work in the Pacific)
• Open media software and technology (through Xiph and Annodex work, as well as FOMS)

I was positively surprised to read in this blog message that Dailymotion and the OLPC foundation have partnered to set up a video publishing channel for videos that can be viewed on the OLPC. The channel is available at olpc.dailymotion.com. You can view it on your computer if you have the appropriate codec libraries for Windows and the Mac installed. Your Linux computer should just support it.

To understand the full impact of this message, you have to understand that the XO (the OLPC laptop) does not support the playback of Flash video by default. OLPC cannot ship the official Adobe Flash plugin on the XOs because it is legally restricted and doesn’t meet the OLPC’s standards for open software. Thus, children that receive an XO are somewhat cut off from social video sites like YouTube, Dailymotion, Blip.tv, MySpace.tv, video.google.com and others, even though there are lots of education-relevant videos published there.

The XO however ships with video technology that IS open: namely the Ogg Theora/Vorbis video codec and software. This is incidentally also the codec that the next version of Firefox will be supporting out of the box without need of installation of a further plugin.

Unfortunately, most video content nowadays available on the Internet is not available in the Ogg Theora/Vorbis format. Therefore, Dailymotion and the OLPC Foundation launching this channel that is automatically republishing all the videos uploaded to the Dailymotion OLPC group is a really big thing: It’s a major social video site republishing video in an open format to enable it to be viewed on open systems.

The IETF has just ratified RFC 5334 “Ogg Media Types”, which I have co-authored.

The new Ogg MIME types are as follows:

• audio/ogg for all Ogg files that contain predominantly audio, such as Ogg Vorbis files (.ogg or .oga), Ogg Speex files (.spx) or Ogg FLAC files. The file extension recommended to be used is .oga, but .ogg will continue to be used for Ogg Vorbis I files for backwards compatibility.
• video/ogg for all Ogg files that contain predominantly video, such as Ogg Theora or Ogg Dirac files. The file extension recommended to be used is .ogv. Please stop using .ogg for Ogg Theora files, since that causes havoc for any application trying to determine which application to use for opening such a file.
• application/ogg used to be the MIME type recommended for any Ogg encapsulated file. This is obsoleted by the new RFC. Instead, application/ogg is a generic MIME type that can be used for Ogg files containing custom content tracks. This may e.g. be a Ogg file with 5 vorbis, 2 speex, 2 theora, 5 CMML, 2 Kate, and a custom image tracks. Such files have to use the Skeleton extension to Ogg to be able to describe the content of the file. The file extension recommended to be used is .ogx.

The RFC also specifies the possibility of using codec parameters to the MIME types to specify directly within the MIME type what codecs are contained inside the files. This may for example be “video/ogg; codecs=‘dirac,speex,CMML’”.

More details on these decisions and on further considered MIME types are in the Xiph wiki.

Disclaimer: I had no influence on the funny number game that happened between the obsoleted rfc3534 and the new rfc5334. :-)

Happy MIME-typing!!

Have you ever been haunted by an old open source package that you wrote once, published, and then forgot about?

The BSD community has just reminded me of the MPEG audio analysis toolkit Maaate that I wrote at CSIRO when I first came to Australia and that was then published through the CSIRO Mathematical and Information Sciences division.

The BSD guys were going to remove it from their repositories, because since I left CSIRO more than 2 years ago, CSIRO has taken down the project pages and the code, so there were no active project pages available any longer. I’m glad they contacted me before they did so.

Since it is an open source project, I have now resurrected the old pages at Sourceforge. They are available from http://maaate.sourceforge.net/. I have re-instated the relevant weg pages and documentation and updated all the links. I discovered that we did some cool things then and that it may indeed be worth preservation for the future. I expect Sourceforge is up to the task.

Thanks very much, BSD community and welcome back, MPEG Maaate!

The Foundations of Open Media Software workshop has just extended its deadline for submission of registrations requests with travel sponsorship.

FOMS addresses hot topics - such as the new

In previous years, FOMS has stimulated heated technical discussions and amazing new developments in open media software, such as the creation of libsydneyaudio, the uptake of liboggplay, the creation of Xiph ROE, or the creation of the new Ogg CELT codec.

Video proceedings of last years’ workshops are here. There are also community goals that were set in 2008 and 2007 and provide ongoing challenges.

You should definitely attend, if you are an open media software hacker. This is a chance to get to know others in the community personally and clear up those long-standing issues that need a face-to-face to get solved. Also, it’s a great social event not to be missed. As a bonus, you can spend the week after FOMS at LCA, the world-famous Australian Linux hackers conference, and deepen your relationships in the community. Come and join in the fun in January 2009, Summer in Hobart, Tasmania.

liboggplay is a library that vastly simplifies the decoding and playback of Ogg encapsulated audio-visual content for programmers. It abstracts away from the complexity of libogg’s encapsulation pages, codec packets, and encoded data, giving the programmer the freedom to work with audio-visual streams, video frames, and audio samples. It does everything apart from the actual display of audio and video and has thus been selected as the thinnest library to provide support for Ogg Theora/Vorbis in Firefox’s new HTML5 .

Shane Stephens, now with Google, implemented most of liboggplay while working at CSIRO on the Annodex project. Chris Double picked up liboggplay for Mozilla/Firefox, where it got committed to trunk only this week. Many others have and continue to provide patches. And finally, yesterday, I made an actual first tarball release of liboggplay.

There is only one little hick-up: liboggplay doesn’t actually have a maintainer. So, we are now looking to find somebody who is highly enthusiastic about open media codecs, has experience in C programming, can compile and test liboggplay on all major operating systems (probably set it up on a build farm) and has enough time to react swiftly to the need of bug fixes. We don’t want people’s Firefoxes to choke on Ogg content, but rather amaze them about how easy to handle and nicely integrated Ogg works on the Web.

One of the big next challenges for liboggplay is the implementation of support for Ogg Dirac - the BBC’s wavelet-based video codec. Mozilla, would be very keen to get Dirac support into liboggplay and thus diversify the open codecs supported in Firefox.

If you want to become the new maintainer for liboggplay, or want to implement Ogg Dirac support into liboggplay, or do both, get in touch with me and we’ll get you set up.

Mozilla have just published a brief statement that they have taken legal advice before they chose to support Ogg Theora/Vorbis natively in the Firefox codebase. Seems like the risk of submarine patents was not large enough to hold back.

Apple and Microsoft should follow this example, undertake their own patent risk assessment (rather than hiding behind Nokia), and make an informed decision on whether or not to support Ogg Theora in their browsers.

The old excuse that there hasn’t been a large player in the market yet that supports the codec is now not true any longer. The ball is in your court to show us better arguments for not supporting the codec!

What a day for great news!

Chris Blizzard and Chris Double of Mozilla have just announced that native Ogg Theora and Vorbis support is now available in the trunk of Firefox’s codebase. Compiles of that codebase have the support enabled by default, which means that very soon now any Firefox that gets installed on any platform will come with built-in Ogg Theora/Vorbis support out of the box.

This is exciting in more than one way.

First of all: it is a browser implementation of the new HTML5 video tag currently in the process of standardisation. Opera is the only other browser that has support for the video tag also using Ogg Theora as the baseline codec, but Opera’s support is in an experimental branch, while Firefox will be the first to have native support.

The choice to include Ogg Theora natively is a huge step forward on Mozilla’s behalf considering the submarine patent debate that has been raging around this codec ever since it was removed from the HTML5 specification as baseline codec. So, maybe the Mozilla lawyers believe the risk of this threat is negligible and if they have, other browser vendors may follow.

This is a big day for open media technology and a big day for the future of video on the Web.

It is important because the availability of free and unencumbered video and audio codecs that are natively supported on the Web will make a huge difference in progressing the capabilities of video on the Web. As an example, look at the efforts of Annodex, where we are creating video webs through a video format with embedded hyperlinks and annotations. To make this feasible, you need a standard and open format for the time-aligned hyperlinks and annotations, which will only work with a flexible open video format. This is just an example: open captioning and karaoke formats, open overlay formats and many other extensions to video formats will now be feasible. The golden age of online video is starting.

Michael Dale’s metavid project is giving us a taste of this future. Video can be searched on time-aligned annotations and only the relevant video segment will be retrieved. Video segments can be addressed by temporal hyperlinks and recombined easily into new mash-ups simply through the creation of a list of temporal hyperlinks. How powerful this will be when we do it across sites! This takes video into a completely new dimension.

Now, let’s step back again from the future to the current exciting news. I am particularly proud of the input that Annodex people have made to this development - code from people like Conrad Parker, Andre Pang, Zen Kavanagh, Shane Stephens, and many others.

Chris Double from Mozilla has been implementing the Firefox Ogg Theora support for more than a year and is using Shane Stephens’ liboggplay library, which was originally developed by CSIRO and is in the code repository of the Annodex Association. liboggplay requires libraries from Xiph.org (libogg, libvorbis, libtheora) and from Annodex (liboggz and libfishsound) to work. All of this has to work across operating system platforms.

It is an enormous achievement and I congratulate the open media technology community on this big success.

…because of your outstanding contributions to Australia’s computing sector, but haven’t had the chance to put yourself out there? Or you have a friend who really deserves an award for his excellent work? Here’s your chance.

This year’s NSW State Pearcey Award is open for applications and nominations. It is one of the only Australian awards that singles out individuals and their contribution to the Australian ICT profession early in their career (where “early” is used rather flexibly to mean anyone who has not yet reached the end of their career).

If you have made any outstanding technical innovations or created novel commercial businesses in IT in NSW, you should consider sending in your CV.

Previous award winners can be seen here. There are some excellent people - even some from the open source community. In 2006, James Dalziel of MELCOE won the award. Jeff and Pia Waugh won last year. And I was myself highly commended in 2006 for the Annodex work we did at CSIRO.

You’ll need to send in the completed nomination form and your CV before the end of August. Good luck! :-)

I just tried comparing the different date & time selection plugins that are available for Rails and because the wiki page at rubyonrails.org is dated and I cannot edit it, I decided to write this brief blog post to save you the 20 min it took me to locate the currently available plugins and their demos:

• CalendarDateSelect plugin (20k JS): demo - has different colours, small, time selection
• Unobtrusive JavaScript date-picker plugin (80k JS): demo - keyboard control, flexible date selection, i18n
• Datetime Toolbooks engine (85k JS): demo - uses engines plugin, not very pretty, nice built-in drop-down menus, introduces date grammar
• DHTML Calendar plugin (76k JS): demo - flexible parameters to make it popup or selectable

So now you can compare and pick the one that suits you best. Enjoy! :-)

UPDATE: John just told me that there is a list of other plugins at the bottom of the CalendarDateSelect plugin page - doh!

The W3C has just released a set of proposed charters for a new W3C Video in the Web activity with a request for feedback.

The following working groups are proposed:

1. Timed Text Working Group
2. Media Fragments Working Group
3. Media Annotations Working Group

Two further ones under investigation are:

1. Codecs and containers
2. Best practices for video and audio content

It is worth checking out the site and the three different working groups they are planning to create. Sure - the codec discussion is a big one. But it’s not as big as some of the other activities as to new functionality for video on the Web.

In our rail application we do a lot of string conversions to other data types, including Boolean. Unfortunately, ruby does not provide a conversion method to_bool (which I find rather strange, to be honest).

Based a blog post by Chris Roos in October 2006, we developed a rails plugin that enables the “to_bool” conversion.

“to_bool” works on the strings “true” and “false” and any capitalisation of these, and on numbers, as well as on nil. Other strings raise an ArgumentError.

Examples are as follows:

'true'.to_bool #-> true 'TrUe'.to_bool #-> true true.to_bool #-> true 1.to_bool #-> true 5.to_bool #-> true -9.to_bool #-> true nil.to_bool #-> false 'false'.to_bool #-> false 'FaLsE'.to_bool #-> false false.to_bool #-> false 0.to_bool #-> false You can find the plugin here as a tarball. To install it, simply decompress the to_bool directory into your vendor/plugins directory.

The Foundations for Open Media Software workshop will take place in January 2009 for the third time before LCA. Yay!! This year in beautiful Tasmania!

At 17:33pm on Wed 11th June on irc #foms, the Call for Participation was declared open.

If you have any engagement with the development of open standards and open source software in the digital media space, consider attending. To attend, all we ask for is an email to the committee. Really simple!

We will have travel sponsorship for some key people and if the last two years are anything to go by, we will see some serious improvements to open media technology coming out of FOMS - an event that always stretches over the whole duration of LCA.

I can’t wait till Christmas is over…

Yesterday, I gave a talk at SLUG (the Sydney Linux Users Group) about the open source software that we’re using in Vquence. The talk was basically structured into three areas: open source software in business operations, in software development, and in system operations. John joined in for the harder questions on the systems operations. We also explained how we’ve set our systems up so we are scalable on data (in particular on video slices, images and video use statistics) at a minimum cost - which includes the use of Amazon’s EC2 and S3 services. We also use reverse proxies to be scalable with bandwidth cost. Here are the talk slides.

This is not my typical blog post, but if it helps achieve the goal, so be it.

Zen Kavanaugh, who used to develop the Ogg DirectShow filters is not able to continue maintaining these. Therefore, the DirectShow filters are now searching for a new maintainer.

If you develop in Windows and are able to compile, test and package the DirectShow filters that are available from http://www.illiminable.com/ogg/, please consider becoming the maintainer.

At this point in time, there is not much actual development required - just the occasional application of a patch, compilation, packaging and then publication.

This is really important, so if you can help you should really consider stepping forward.

We’re using Joomla on Vquence’s corporate site and wanted to display RSS icons and provide proper feeds for the blogs and news posted there.

The new Joomla 1.5 provides the ability to add to every Menu item that is a Blog List an RSS feed by introducing an rss and atom link tag in the html head tag. However, we wanted to have the RSS icon for subscriptions displayed on the page, too, and that turned out to be not so simple.

Here is the piece of code that we eventually added to our body tag: <div id="rss" style="float: right;" > <?php $headData = $this->getHeadData() ?> <?php if(count($headData['links']) != 0) : ?> <a href="<?php echo JRoute::_('index.php?format=feed&type=atom', false) ?>"><img src="/images/rss.gif" alt="rss icon"/></a> <?php endif; ?> </div>

Fortunately, this also worked for the aggregated planet blog feed we are displaying in Joomla as an article under Team Blog and for which we had to install the CustomHeadTag plugin to add the link tags to the html page head.

Counting the number of links in the Joomla HeadData seemed to be the best way to find out whether or not to add the RSS feed icon. This is in no way or shape optimal or the best solution, but we were unable to find a way to get directly to the parameters of the menu items and query that show_feed_link parameter of the menu item. Online documentation for this type of template work is non-existent as yet.

If anyone has a better solution, leave a comment!

This lecture is impressive. Larry talks about the war that we (well: the US congress) are inadvertently raging against “our kids”. How we are criminalising a whole generation that express their creativity through mash-up as they use copyrighted content. How these crimes are based on congress decisions that make no logical sense and are only influenced by money. And how this corruption is not just reflected in the problems we have with copyright, but also in e.g. our late reactions to global warming, or in the way in which academia, the medical profession, medical research, and other areas work.

I know it’s a long lecture, so if you just want to watch the main message, download the file and just watch the last quarter. A highly intellectual voice for humanity.

If you’re a student and keen to get more open media technology to the Web, apply for a Google summer of code project with Xiph. There are also a few Annodex-style projects in the mix, which bring annotations and metadata to Ogg.

Your interest could be with javascript, ruby, php, XML, or C no matter - you will find a project at Xiph to suit your favorite programming language.

Of the list of proposed projects, my personal favorite is OggPusher - a browser plugin for transcoding video to Theora. Imagine an online service for transcoding video to Ogg Theora without having to worry about having all the libraries installed.

You also have the chance to propose your own project to the Xiph/Annodex guys - you just need to find somebody who is willing to mentor you, so hop on irc channel #xiph at freenode.net and start discussing.

Incidentally, Google is providing a financial reward for successful conclusion of a project - but don’t let that be your only motivation. If you’re not in it with your passion, don’t do a GSoC project. This is about interacting with an open source community whose goals you can identify with. Become involved!

At Vquence, until now we have used the Thumbstacks chart library for our graphs. TSChartlib is a simple open source charting library that uses the HTML canvas and an IE hack to create its graphs.

Vquence is now getting real serious with charts and graphs and we were thus looking for a more visually compelling and more flexible alternative. If you do a google search for “online charting library”, you get a massive amount of links to proprietary systems (admittedly, some of them offer the source code if you pay a premium). I will not be listing them here - go find them for yourself. However, the world of decent open source charting libraries is relatively small, so I want to share the outcome of my search.

There is the Open Flash Chart libary, which provides charting functionality for flash or flex programmers. The charts look rather nice and have overlays on the data points, which is something I missed thoroughly from TSChartlib.

There is a open source flex component called FlexLib which only does line charts, IIUC.

There is PlotKit, a Chart and Graph Plotting Library for Javascript. It has support for HTML Canvas and also SVG via Adobe SVG Viewer and native browser support and looks quite sexy.

Then there is JFreeChart, a 100% Java chart library that makes it easy for developers to display professional quality charts in their applications. Another Java charting library is JOpenChart. Incidentally, there’s a whole swag of further Java libraries that do charts and graphing. However, we are not too keen on Java for Web technologies.

Outside our area of interest, there are also open source chart libraries in C#, but C#/.NET is not a platform we intend to support, so these were out of the question.

Our choice came down to the “Open Flash Chart” library vs “Plotkit”. Of the two, the Flash library and technology seems more mature, easier to use, and creates sexier charts. Also, we can sensibly expect all Vquence users to have Flash installed, while we cannot expect the same to be true for SVG. However, I was fascinated by the flexible use of SVG and HTML Canvas and will certainly get back to it later, when I expect it to have matured a bit more.

Our choice of the Open Flash Chart was further facilitated by a rails plugin for it. Score!

Of course: I might have totally missed some obvious or better alternatives. So, leave me a reply if you think I did!

Late last year at Xiph we worked over our mime types and file extensions for Xiph content. The new set avoids using .ogg for everything and gives the different Xiph audio files a .oga (audio/ogg) and the Xiph video files a .ogv (video/ogg) extension, while using .ogx for more generic multiplexed content in Ogg. It’s important to separate between audio-only and video files - the codecs inside don’t really matter as much to select the appropriate application to start for using the file.

Today I read Fabian’s blog entry - one up for Ubuntu for getting behind it: https://bugs.edge.launchpad.net/ubuntu/+bug/201291 rock!

The revolution is here and now! If you thought you’ve seen it all with video web technology, think again.

Michael Dale and Aphid (Abram Stern) have published a plugin for Mediawiki called Metavidwiki which is simply breathtaking.

It provides all of the following features:

• wiki-style timed annotations including links to other resources
• a cool navigation interface for video to annotated clips
• plain text search for keywords in the annotations
• search result display of video segments related to the keywords with inline video playback
• semantic search using speaker and other structured information
• embedding of full video or select clips out of videos into e.g. blogs
• web authoring of mashups of select clips from diverse videos
• embedding of these mashups (represented as xspf playlists)
• works with Miro through providing media RSS feeds

Try it out and be amazed! It should work in any browser - provide feedback to Michael if you discover any issues.

All of Metavidwiki is built using open standards, open APIs, and open source software. This give us a taste of how far we can take open media technology and how much of a difference it will make to Web Video in comparison to today’s mostly proprietary and non-interoperable Web video applications.

The open source software that Metavidwiki uses is very diverse. It builds on Wikipedia’s Mediawiki, the Xiph Ogg Theora and Vorbis codecs, a standard LAMP stack and AJAX, the Annodex apache server extension mod_annodex, and is capable of providing the annotations as CMML, ROE, or RSS. Client-side it uses the capabilities of your specific Web browser: should you run the latest Firefox with Ogg Theora/Vorbis support compiled in, it will make use of this special capability. Should you have a vlc browser plugin installed, it will make use of that to decode Ogg Theora/Vorbis. The fallback is the java cortado player for Ogg Theora/Vorbis.

Now just imagine for a minute the type of applications that we will be able to build with open video APIs and interchangable video annotation formats, as well as direct addressing of temporal and spatial fragments of media across sites. Finally, video and audio will be able to become a key part in the picture of a semantic Web that Tim Berners-Lee is painting - a picture of open and machine-readable information about any and all information on the Web. We certainly live in exciting times!!!

Today, for the millionth time I had to listen to a statement that goes along the following lines: “CMML technology is not ideal for media annotations, because the metadata is embedded with the object rather than separate”.

For once and all let me shout it out: THIS IS UTTER BULLSHIT!

I am so sick of hearing this statement from people who criticise CMML from a position of complete lack of understanding. So, let me put it straight.

While it is true that CMML has the potential to be multiplexed as a form of timed text inside a media file, the true nature of CMML is that it is versatile and by no means restricted to this representation.

In fact, the specification document for CMML is quite clearly a specification of a XML document. CMML is in that respect more like RSS than a timed text format.

Further, I’ll let you in on a little secret: CMML can be stored in databases. Yes!! In fact, CMMLWiki, one of the first online media applications that were implemented using Annodex, uses a mysql database to store CMML data. The format in which it can be extracted depends on your needs: you can get out single field content, you can put it in an interchangeable XML file (called CMML), or you can multiplex it with the media data into an Annodex file.

The flexibility of CMML is it’s beauty! It was carefully designed to allow it to easily transform between these different representations. It’s powerful because it can easily appear in all these different formats. By no means is this “not ideal”.

Vquence was today presented on the “Australian Startup Carnival” site - go, check it out.

There are 28 participants to the startup carnival and each one of them is being introduced through an interview that was taken electronically. Questions for this interview were rather varied and detailed. They included technical and system backgrounds as well as asking for your use of open source software.

All the questions you have always wanted to ask about Vquence, and a few more. ;-)

UPDATE: The Startup Carnival has announced the prizes and they are amazing - first prize being an exhibition package at CeBIT. Good luck to us all!!

I am really excited about the huge progress we made at FOMS with metadata and Ogg. The metadata specifications are actually not Ogg-specific - only their mapping into Ogg is. Here are the things that I expect will make for a very structured and sensible distributed handling of metadata on the Web.

At FOMS, we started improving CMML and are now specifying the next version of CMML. CMML is a timed text description language that can easily be multiplexed alongside audio or video data. It is very flexible with its fields and satisfies needs for hypermedia, captions, annotations and other time-aligned text. We took out the Ogg dependencies and it can now be used in any media container format. The specification is now also in an XML schema rather than a DTD, which enables us to reuse modules from XHTML and make it generally more extensible.

We introduced ROE, a description language (or a “manifest”) for multitrack media files. It describes media tracks and their dependencies and thus goes much further than the old stream and import elements in CMML, that now have been deprecated.

ROE can be used to author multitrack media files - in the Ogg case to author Ogg files with a Skeleton track and multiple media tracks. We are in the process of extending Skeleton to incorporate the description of dependencies between logical bitstreams. To complete this, we will be creating a description of how to map ROE into Ogg/Skeleton and vice versa.

ROE can also be used to negotiate with a Web client what media streams to send from the complete manifest that is available on the server. For example, a Web client could request the German sound track with a movie rather than the default English one, and to add English subtitles. This requires a small protocol for negotiation, which can easily be build using Web infrastructure. We are introducing some new HTTP request/response parameters and specific URLs, such as e.g. http://example.com/movie.ogg?track=V1,A2,TT2.

The set of ROE, Skeleton, CMML, and the HTTP and URI specifications will enable a very structured means of interacting with metadata-rich video on the Web. It will be distributed and integrated into the Web infrastructure, much like the Annodex set of technologies already is today.

Since I am also a business owner aside of being an open media enthusiast, let me add that I expect it to have a huge impact on online business around audio and video, enabling business processes and business models that are not possible today. Watch this space!

When I started organising the first FOMS (Foundations of open media software developers workshop) in 2007, I did it because I saw a need to have media hackers get together in a room and discuss stuff in person. Email, irc, svn, bugzilla and wikis only get you a certain distance for collaboration. But no distance communication tool can replace the energy and creative spirit that is created through an in-person meeting and the ability to have a beer together in the evening. Discussions are more intense, impossibilities are identified faster, progress is amazing - and the energy will last and have an impact on the community for months to come after the event.

FOMS 2007 was great in that respect, because some 25 hackers got to know each other for the first time, friendships were formed, trust was built and new ideas (speaking: new code) was created. It was awesome and gave me the motivation to go and organise FOMS 2008. At this point let me express my gratitude to the organising committees of both FOMS 2007 and FOMS 2008 for the support they have given me to organise both workshops and hope they will help again next year in Tasmania.

So then FOMS 2008 took place and what can I say!? It totally blew me away. For me it was a much better experience than the year before because I didn’t also organise the video recordings at LCA. I was therefore more relaxed, got involved in design discussions, and was able to sit down during the week after FOMS at LCA and actually interact with people. On a side note here: Thanks so much to Donna Benjamin, the main organiser of LCA 2008, for getting the FOMS participants a room to ourselves where we were able to gather and get an awesome whole lot of work done.

Nearly the whole Xiph community was at FOMS and issues that have been brewing for years were tabled and discussed. A large number of audio hackers were there, too, and the issue of a standard sound APIs got some heated discussion. There’s a press release and the proceedings of the FOMS discussions up on the FOMS 2008 website, where you can make yourself a complete picture of all the issues that were discussed.

In addition to FOMS, Conrad Parker and I had also organised a Multimedia Miniconf at LCA. It was a great place to communicate some of the outcomes of FOMS and to present some of the latest developments in open media software in the Linux community. Video proceedings are available on the site.

Overall I must say that January has become the highlight of my year in open media software.

Many people wonder what the future of video on the Web should be and want a more integrated and simpler video solution than what flash provides right now.

The W3C and WHATWG’s move towards a video element in HTML5 is a good first step.

However, it is not enough.

At the recent W3C’s video workshop, I realised that people’s requirements and expectations go far beyond what the HTML5 spec is currently providing. And most of those requirements can be satisfied with the Annodex technologies. But it will need a lot of explaining, documenting and demonstrating to show that Annodex provides these solutions in a simple, yet comprehensive manner. And what’s more: any technology developed to satisify the requirements will need to take on board many of the design decisions that we made for Annodex, so I hope, whatever will be the next Video Web technology, we can provide our input.

The most fundamental point to understand is that you cannot create a solution for video webs without considering all aspects of handling video on the Web in an integrated fashion. This includes topics such as the URI addressing scheme, seeking and indexing of video, the metadata and annotation scheme, and how all of this fits together with the binary video data and Web servers. Let me repeat: these topics have to be addressed together and not as separate projects, because they influence each other!

Apart from Annodex, no other existing or suggested video technology for the Web brings together all the required facets to really solve the big picture - and that includes video metadata specifications, hyperlinking approaches, codecs etc.

Having said all of this, let me demonstrate to you what I mean by full integration.

Shane Stephens has been coding on a library that brings native Annodex support into Web browsers (called liboggplay) and has provided me with a video that demonstrates what you can do as a programmer once your Web browser understands Annodex. Take note of the integrated use of annotations. And also of the simplicity of URI addressing. And the use of an adapted Web server.

The video is available in Ogg Theora format and on YouTube.

Michael Dale: Metavid & Free Online Video (University Of California at Santa Cruz)

Chris Double: Position Paper for the W3C Video On The Web Workshop (Mozilla Corporation)

Håkon Wium Lie: Opera Software’s position paper for Video on the Web (Opera Software)

Silvia Pfeiffer: Architecture of a Video Web - Experience with Annodex (Annodex Association)

Silvia Pfeiffer: Hyperlinking to time offsets: The temporal URI specification (Annodex Association)

[I wrote this more than 8 months ago, but didn’t want to publish it at the time because I want us to solve the issues around video in HTML5 and not fight each other. But I’ve made some changes and I’m now ready to have it published.]

There’s a clash of ecosystems happening at the WHATWG mailing list around the need for the specification of a baseline codec for a future

The clash is mostly between the open community which want Ogg Theora as a recommended baseline codec and big vendors (Apple & Nokia), which wanted that recommendation taken out. They claim that such a recommendation has nothing to do in a HTML standard, which should specify tags but not recommend external file formats. From one perspective, I agree - some things are better left to the software engineers to decide and left open to the market. However, in this particular instance, I think it would be a big mistake not to specify a baseline video codec. In fact, it would in my mind make the whole move to a new HTML5 standard an irrelevant exercise.

Let’s look at history and play a mind game on the consequences of such a decision.

Around the turn of the century we had a wonderfully diverse situation: we had RealMedia, QuickTime and WindowsMedia all being video formats that people expected to find on the Internet and to stream video. It most certainly made business sense to the involved companies! However, it made no business sense to Web developers and media content producers. They had to set up a transcoding and streaming infrastructure for all these three formats in parallel if they were wanting to reach all their potential clientele. I have actually seen this happening here in Australia at the ABC, which has a mandate to serve all the Australian people and therefore had to provide video in all potential formats. I remember the pain that was written across the faces of the infrastructure people.

A few years fast forward and the ABC can now give sighs of relief: supporting Adobe Flash, they can do away with all this expensive and support-intensive infrastructure and just support one codec.

Another story from the past to keep in mind is the story of PNG and GIF http://www.libpng.org/pub/png/pnghist.html where the collecting of royalties on the GIF codec started the creation of the open and free PNG format, which became a W3C recommendation in 1996 (see http://www.w3.org/Press/PNG-PR.en.html). TBL states in there “We are seeing more of our Members adopt the format and are helping make it the industry standard.”

With these in mind, let’s try and project into the future.

Assuming we do not provide a baseline codec in the spec, what will happen is that we will see each browser adopt support for the codec that “makes business sense”, i.e. Microsoft will support WindowsMedia, and Apple will support QuickTime, while the rest will be looking for a “cheaper” codec which could e.g. be MPEG-1 or Ogg Theora. Or stated differently: we will end up with the same situation that we had around 2001 with streaming codecs, except that Web developers and content owners still have the choice of Flash through the object/embed tag. Who will we confuse? The consumers who will be wanting to create their own content and publish it online. They will want a free and interoperable option. Since that’s not to be had, they will choose what makes most sense on their OS platform - i.e. QuickTime on Macs (comes for “free”), WindowsMedia on Windows, and Ogg Theora on Linux. Yes, this makes business sense to some of us. It will certainly make Adobe happy because - as before - Flash will come out as the winner.

Assuming we do provide a baseline codec in the spec, a very similar situation will actually happen and the browsers will support different codecs initially, since Ogg Theora is just a recommendation, which will probably not be implemented in Apple or MS Web browsers. However, now, Web developer and content owners have a focus on what format they should be providing through the recommendation in the standard. And they will request support for the recommended baseline format from the vendors. So, there may actually be a chance that the confusing mess of codec formats may be sorted after a while. This is the chance we have to make things easier for Web developers and online businesses - and this is why a baseline codec is imperative.

What we now need is to address the issues of Apple, Nokia and MS with Ogg Theora. These are mostly around submarine patents. My suggestion is that the W3C pay an independent patent attorney to perform a patent research on Ogg Theora to address the perceived risks of the big vendors. If the patent search is as comprehensive as possible, we may reach a situation where the big vendors do not perceive the risk any longer. However, there is also a risk that Theora is found to infringe specific patents. I guess we will then either correct the codebase or just have put all our development efforts into Dirac. :-) In any case - all the FUD that is currently being sent both ways can then be addressed more easily with some decent data behind it.

A few years ago when I was still at CSIRO, I was contacted by Linda Barwick from PARADISEC to research into the use of Annodex for linguists. The main problem was that ethnographic researchers are publishing research outcomes on paper or even HTML, which are essentially discussions about small sections of field recordings of exotic languages - however, they had no means to do citations of these sections through hyperlinks or any other simple interactive means. In the time of online media, that should be a trivial task, right? But it wasn’t. Annodex and the timed URIs provided the right basis for a solution.

Fast forward lots of months of work in the EthnoER project and you get a solution for ethnographic researchers which is unique and completely based on open formats and open source software. Check out Linda’s blog entry of today!

Congratulations to everybody who has put all that effort into the project - Nick Thieberger, Linda Barwick, Shane Stephens, Stuart Hungerford, Jonathan McCabe, and all the others whom I forgot. EthnoER and Annodex might have changed the way in which linguistic research online can be published - not a small feat at all!

In the last few weeks, I’ve created an Internet-Draft (I-D - a draft specification of an IETF RFC) for the Ogg Skeleton meta track, and updated the CMML I-D to include a new element called “caption” (CMML DTD). All of this is work that should have been done a long time ago, but I only got the motivation for it through the WHATWG work on HTML5 which will take Ogg Theora and Ogg Vorbis as baseline codecs. Since liboggplay is the key open source library that implements this baseline codec support, and liboggplay supports Annodex, it seems plausible that Annodex (which adds essentially Skeleton + CMML) will be available in Web browsers of the future. So, now is the time to fix up the few open issues that remain and cast the specifications into readable I-Ds.

If you haven’t seen the great functionality that will be available with liboggplay, you should check out the liboggplay javascript API. I’ve seen Shane make a demo web page through which you can toy with the javascript API, but haven’t got the link available right now.

Or .. why does password-protection suck in Wordpress.

I wrote this entry and wanted to get feedback from the people that it was about, before publicly posting it. So I thought - wordpress has this great feature of password-protecting posts. Let me use that! But then the problems started: the post was actually added to my RSS feed and sucked in by a few planets and people started complaining that they were not able to read it. Well, it’s great to get feedback from the community that my posts are actually being read. But it sucks that wordpress handles password-protected post in such a bad manner. Is it something I did wrong or is that indeed a bug in wordpress? Leave me a comment!

It is awesome to see FOMS - the Open Media Software developer workshop we ran for the first time this year - turning into a major audio and video developer event for Linux. FOMS 2008 will be in Mel8ourne in January and will focus on audio on Linux (in particular libsydneyaudio) and on native Firefox support for Ogg Theora (in particular liboggplay). Because of the latter, FOMS has attracted sponsorship by the Mozilla Foundation. This sponsorship is very welcome since most of the relevant developers come from overseas and are not part of large organisations that could afford to pay the expense. Check out the current list of participants on the site - it will be another milestone event for open media! And … thanks Mozilla Foundation!

The organisers of LCA have found another slot for a miniconf and ours is it! Yay!! We shall have an audio/video miniconf at LCA! This is particularly important since we will bring to Australia a large number of key open media application developers for FOMS. These guys will also be able to provide deep insight and understanding during talks provided to the more general LCA audience. Expect some awesome media talks at LCA!!

Good news, everybody: We are repeating the successful open audio/video developer workshop in 2008 - the CFP for FOMS 2008 is now public!

FOMS (Foundations of Open Media Software) will again take place in the week ahead of LCA (Australian’s Annual Conference for Linux and Open Source Developers) - whose CFP is also out. Get started submitting abstracts because LCA’s published deadline for submissions is 20th July.

To complete the pack, LCA MultiMedia is an a/v miniconf for LCA in planning, such that LCA attendees will also have a chance to hear the latest and most exciting news from the developer bench.

FOMS 2007 was a huge success. It brought face-to-face some of the core Linux audio and video developers, which promptly started attacking some of the key obstacles for an improved audio/video experience on Linux and with open media software in general.

Jean-Marc Valin (author of speex), Lennart Poettering (author of PulseAudio) a group of programmers from Nokia and a few others started designing libsydneyaudio - a library which is deemed to solve the mess of audio on Linux in a means that is also cross-platform compatible.

Also, a community started building around liboggplay, a library designed to allow drop-in playback of Xiph.Org media in an application. libogg is currently being prepared for a submission to Mozilla to provide native Ogg (and Annodex) support inside Firefox as part of the new HTML5 . Then, Ogg Theora, Vorbis & Speex will play out of the box on a newly installed Firefox without requiring to install any further helpers software.

These are just the highlights from FOMS 2007 - expect more exiting news from FOMS 2008!

Today we nailed down a policy for Xiph on what file extensions and mime types we recommend using for Xiph technology.

Basically, we have introduced some new file extensions to allow applications to more easily identify whether they are dealing with audio (.oga) or video (.ogv) files, or some random multiplexed codecs inside Ogg (.ogx).

We recognized the fact that existing Ogg Vorbis hardware players will need to continue to work with whatever scheme we come up and therefore decided to dedicate the extension .ogg to Ogg Vorbis I files - and deprecate all other use of it. That includes the deprecation of the use of Ogg Theora and Ogg Flac with this extension. In future, Ogg Theora files should have a .ogv extension and Ogg Flac a .oga extension. (For further details, check out the wiki page.)

MIME types will be changed accordingly and the RFCs required to register them will start to be authored now.

None of this has been written in stone yet though and there is still time to change this policy if it doesn’t make sense. So if you have any strong objections, speak up now!

As I was playing with Ogg Theora lots for LCA, I needed to script the extraction of keyframes from Ogg Theora files.

There’s a manual way to achieve this through totem: you just use ctrl-s to capture a frame. However, I didn’t want to do this for every one of the hundreds of videos that we captured.

Here’s a script that I found somewhere and might work for you, but it didn’t work for me: dumpvideo foo.ogg | yuv2ppm | pnmsplit - image-%d.ppm; for file in image-*.ppm; do convert $file `basename $file .ppm`.jpeg; done

What worked for me in the end was a nice and simple call to mplayer: mplayer -ss 120 -frames 1 -vo jpeg $file

I’ve come to really love working with Ruby on Rails - it forces a structured approach of Web development upon you which helps enough to get you organised, but doesn’t get in the way of being productive.

I’ve also learnt to search for plugins or gems whenever I need a specific functionality because more often than not somebody has already solved the problem that I am trying to address.

Today I played with Andy Singleton’s GUID plugin (global unique identifier) and found a bug. I haven’t found a way to publish the solution through the rails wiki (I’m really new to the community), so I’m posting it here. I’ve also sent Andy an email, so hopefully the issue will get addressed.

Here is what happend.

I got the plugin working on my development computer and wanted to test it on another machine. However, the plugin gave me the following error message: #{RAILS_ROOT}/vendor/plugins/guid/lib/uuidtools.rb:235:in `timestamp_create' #{RAILS_ROOT}/vendor/plugins/guid/lib/uuidtools.rb:225:in `timestamp_create' #{RAILS_ROOT}/vendor/plugins/guid/lib/usesguid.rb:25:in `after_initialize'

After some digging I found that it uses the MAC address of the computer for seeding the GUID. To query the MAC address, it calls ifconfig (or ipconfig on a Windows machine) - which is fair enough. It has several cases that it goes through. However, the case of my machine was missing and the code did not address a nil return from the get_mac_address function.

My case was simple to solve: my MAC address comes in upper case characters, while the code only tested for lower-case characters. So, I added another parsing condition for my case: if mac_addresses.size == 0 ifconfig_output = `/sbin/ifconfig | grep HWaddr | cut -c39-` mac_addresses = ifconfig_output.scan( Regexp.new("(#{(["[0-9A-F]{2}"] * 6).join(":")})")) end

The generic problem is harder to solve - and maybe it should not be solved, but fail on the programmer, since he/she is trying to roll out GUID calculation on a machine where the program is unable to calculate a MAC address…

Hmmm…

With a court ruling of $1.5bn (see http://news.com.com/2100-1027_3-6161760.html), the Alcatel-Lucent vs Microsoft case is rather amazing.

It is particularly amazing since to everyone who has licensed from the MP3 licensing consortium was held under the impression that with that license they are off the hook for all patents related to MP3.

Well, now that MP3 is coming of age and any related patents will be running out fairly soon, Alcatel-Lucent has decided to take a share of the cake - and a rather large one.

What is worrying is that through this step, all companies that are licensing “standardized” codecs and thought that getting a license through the standards body would cover all possible infringement, now have to fear that there is always another hidden patent somewhere, which somebody can pull out of the hat at any time to sue them.

Doesn’t that put the aim of standardization on its head?

To me it just confirms that standardized technology should be technology that is not covered by patents and that the standards body has to make sure that such patents don’t exist.

Unfortunately, ISO/MPEG - and other standardisation bodies - have worked in the exact opposite direction until now: everyone who participated in MPEG made sure to get as many patents registered with MPEG as possible so as to get as large a share of the licensing payments as possible.

The only solution out of this mess is to create media codecs that are not infringing patents. Luckily, Xiphophorus is doing exactly that. So, this should encourage media companies to use Ogg Vorbis and Ogg Theora.

And if these codecs are too “old” for you, expect the new Dirac codec from the BBC to shake up things a lot! Open source, open standard, and the latest wavelet technology - should be un-beatable!

The first FOMS (Foundations of Open Media Software) workshop is over and it was an overwhelming success - more than ever expected! And wow - we have videos of it, too - thanks to Ralph Giles and Thomas Vander Stichele.

The goal of FOMS was to bring a diverse group of people from all around the planet who are all working on open media software together for the first time so they could get to know each other, exchange ideas, and generally address the things that annoy us all with open media technologies.

Strategically placing FOMS in the week before LCA was a great idea: not only would some of the developers attend LCA anyway and thus would not need to use up extra travel time, but also would LCA provide opportunities for the newly forged relationships to flourish and create code.

A new forum for discussion was created and since the community has committed to achieving a set of community goals, we expect it will have some basic effect on the usability of open media software over time.

And yes … all participants are up for a repetition of FOMS - possibly as a precursor to other FLOSS conferences overseas, but at a minimum again at next year’s LCA in Melbourne. Let’s rock it!

I keep getting asked how we did the technical setup, so let me share it here.

With Video at LCA, this year, we did not want a repetition of the more experimental setups of previous years. We set out with only one goal: to publish good quality video during LCA to increase the number of talks that people will be able to look at and discuss. Our only aim is the Ogg Theora format since it is the only open video codec and what would a conference on FLOSS be if we didn’t stick to our ideals even with codecs!

One consequence of our narrow goal is that you will not find any live video streaming at LCA in 2007. The reasoning behind this is that we reach maybe a few hundred people with streaming, but that publishing reaches millions. Another reason is that previous years of video recordings at LCA have mostly had problems with one particular part in this picture: computers. So, we decided to take the computer out of the recording process and only use it in the transcoding, uploading and publishing part of the conference.

We are therefore recording from the DV cameras straight to DVD, which provides us with a physical backup as well as a quick way to get the data into the computer (in comparison to using DV tapes). Though this means that we use a non-free compression format in the middle of our process, it makes it a lot less error-prone. We’re waiting for the day when we can replace our camera - DVD recorder setup with Ogg Theora recording hard-disk cameras!

But the technical part of the video recordings is only one part of the picture. If you want good quality footage, you have to put people behind the cameras at all times. Speakers do weird things and a recording of slides with voice-over is not a very sensible video recording of conference talks. You really require a minimum of 2 people per lecture hall to cover the semi-professional setup that was required for the Mathews theatres: one looking after the audio and the other after the video, with a bit of slack time to give each other a break.

In parallel to the camera crews, we have a transcoding and upload team, which constantly receives the DVDs (and the DV tape backups) from the recording rooms. You also need stand-by people for relief. The upload process involves editing of the start and end points of videos, then a transcode to Ogg Theora and an upload to a local file server at the conference. This video gets mirrored to a Linux Australia Server and published into the conference Wiki through an automatic script.

We are very lucky to have a competent and reliable A/V team of volunteers at LCA 2007 who give up their opportunities to attend the conference for the greater good of all of us. Each team member covers all the days and it takes a lot of dedication to be up in the morning before everyone else (and possible after a hard night’s partying) and working a full day behind the camera or the computer. One of the team members even spent his birthday behind the camera!

I’d like to thank everyone on the A/V Team (in no particular order):

• Timothy Terriberry,
• James Courtier-Dutton,
• Michael Dale,
• Holger Levsen,
• Nick Seow,
• Sridhar Dhanapalan,
• Chris Deigan,
• Jeremy Apthorp,
• Andrew Sinclair,
• Andreas Fischer,
• Adam Nelson,
• Ryan Vernon, and
• Ken Wilson.

In addition, the networking people have worked hard to make the uploading and publishing process as smooth as possible - I’d like to thank in particular John Ferlito and Matt Moor for their hard work.

It was a great experience to work with such a large team in such a professional setup where we managed to overcome many technical and human challenges and get the first video published even during LCA!

I’ve just finished writing a small script that will help us edit and transcode video recorded at LCA 2007. Since we will record directly to DVD, we will need a simple laptop with a DVD drive and the installed software gmplayer and ffmpeg2theora to do the editing and transcoding, before uploading to a Web server. Which means that just about all LCA participants are potential helpers for making sure the video material gets published on the same day.

If you happen to be a LCA participant and want to help ascertain video publishing happens, please walk up to the video guys and offer your editing & transcoding help.

Ah yes, and here is the script - in case anyone is interested:

#!/bin/sh # usage function function func_usage () { echo "Usage: VOB2Theora.sh " echo " starttime/endtime given as HH:MM:SS" echo " filename input file for conversion" } # convert from SMPTE to seconds function func_convert2sec () { tspec=$1; tlen=${#tspec} #strlen # parse seconds out of string tsecstart=$[ ${tlen} - 2 ] tsec=${tspec:$tsecstart:2} #substr # parse minutes tminstart=$[ ${tlen} - 5 ] if test $tminstart -ge 0; then tmin=${tspec:$tminstart:2} #substr else tmin=0 fi # parse hours thrsstart=$[ ${tlen} - 8 ] if test $thrsstart -ge 0; then thrs=${tspec:$thrsstart:2} #substr else thrs=0 fi # calculate number of seconds from hrs, min, sec tseconds=$[ $tsec + (($tmin + ($thrs * 60)) * 60) ] } # test number of parameters of script if test $# -lt 3; then func_usage exit 0 fi # convert start time func_convert2sec $1 tstart=$tseconds # convert end time func_convert2sec $2 tstop=$tseconds # input file inputfile=$3 if test -e $inputfile; then echo "Converting $3 from $tstart sec to $tstop sec ..." echo "" else echo "File $inputfile does not exist" exit 1; fi # convert using ffmpeg2theora strdate=`date`; strorga="LCA"; strcopy="LCA 2007"; strlicense="Creative Commons BY SA 2.5"; strcommand="ffmpeg2theora -s $tstart -e $tstop --date '$strdate' --organization '$strorga' --copyright '$strcopy' --license '$strlicense' --sync $inputfile" echo $strcommand; sh -c "$strcommand";

---

Ralph Giles made an improved version of the VOB2Theora script. It can be found at http://mirror.linux.org.au/linux.conf.au/2007/video/VOB2Theora_v2.sh.

Have you ever been stuck with a video file that does not play in any of your video players or the Web Browser? It happens frequently because the media technology landscape is still a very fragmented one where a lot of energy is put into the creation of proprietary compression technologies. But the consumer is unwilling to follow every new encoding format and to pay for codecs which he/she may only need for this one file.

Just as the use of free and unencumbered text encoding formats (ASCII, UTF-8) is a prerequisite to the development of novel applications and an enabler of email, the Web, and many other common applications, free video and audio formats enable the creation of novel applications with media.

Free and unencumbered codecs are starting to become mature. The codecs from Xiph.org cover audio (Vorbis, Speex, FLAC) and video (Theora) are readily available and supported on many platforms. The BBC’s next-generation video codec called Dirac is still in the labs, but is one of the few cutting-edge codecs built on Wevelets, a novel transform that promises higher compression rates with less artefacts - and it is free and unencumbered.

However, the availability of codecs is not all that matters. Audio-visual applications that make use of these codecs need to be developed, too. Applications such as video editors, desktop audio/video players, Webbrowser embedded players, and streaming technology are fundamental to enable the full production-to-publishing chain. And then there are the higher-level applications such as playlist and collections manager (iTunes-like), video Web hosting, video search, or Internet video conferencing applications which provide the real value to people.

Foundations of Open Media Software is the first conference ever to bring together the architects of open media software systems from around the world to address technical issues and further the development of a open media ecology where the focus is on the development of new high-value applications rather than a tiring and unproductive competition of formats.

FOMS furthers the development of media technology on Linux, addresses support of open media codecs across platforms, and works towards the creation of an ecosystem of rich media applications.

The principles of creative commons content around a free exchange of ideas through digital media requires adequate licenses to be attached to media files, which in turn will only work in an environment where the media formats of such content is unrestricted and unencumbered, too.

Foundations of Open Media Software takes place in Sydney, Australia 11th-12th January 2007. Since it is a conference organised by developers for developers, donations are highly welcome. There are also some spaces for professional delegates available still. Details are at http://www.annodex.org/events/foms2007/ .

From Thursday 11 - Friday 12 January 2007 we will have some of the world’s top open media software developers gather in Sydney at a workshop titled “Foundations of Open Media Software” (FOMS).

The workshop takes place in the week before linux.conf.au (LCA), thus enabling developers to cross-pollinate with the developers and attendants of LCA. FOMS is supported by LCA with venue and other logistics.

I’m happy to be one of the core organisers of this workshop and very excited about the vibe that this will bring to the open media software developer community. FOMS creates a venue for a community that has thus far not had its own gathering place.

In January: Sydney will rock the FOSS world doubly!!

I’ve spent a lot of time recently analysing video on the Web.

YouTube and Google Video introduced what seems to be the standard now: videos get published on what I like to call a “host page”. This is one webpage completely dedicated to this video.

Why are there still so many videos out there that get published through a hyperlink behind two words of text instead of giving them proper recognition?

Think about it: the creation of a video usually costs a lot of effort and when it’s done, it needs a proper presentation. Hiding it behind a hyperlink is like putting your blog up on an ftp server in pdf format.

So, what information has to be on a video host page?

Best practice is to have an embeddable video player on the host page that displays a keyframe.

Other information that typically resides on a host page is a short textual description of the video, its duration, who published it, who created it, license rights (check out Creative Commons for this), tags & category attributions, comments from viewers, number of page views, and a description of how to use this thing in other environments, such as how to embed it in blogs or how to download it to the iPod or PSP.

We don’t need Google or YouTube to do this for us. We can publish video in that way ourselves. Well, maybe apart from the bit about transcoding to the iPod or PSP. Incidentally, is there any open source SW around to do that?

We can transcode our videos to Ogg Theora using ffmpeg2theora and then publish it with the embedded java theora player Cortado. Then we just need to create our own host page in html.

All we need now are a few more plugins for common Web content management systems like WordPress or drupal to simplify this process even more. Here’s your Friday afternoon challenge. :-)

Videos will be everywhere on the web! Yes, cope with it: soon the majority of videos won’t be with some hosting site like youtube, but it will reside on our private servers, on company servers, actually on any and all web servers. And there will be interesting stuff, but it will be hard to find.

Yes, history will repeat itself again and finding those videos on the Web that satisfy our need - be it for information or entertainment - will be a nightmare. Why? Because google’s pagerank (and many other ranking algorithms) rely on Web pages pointing to the videos to give them a higher rank. However, the way in which videos are currently published is through embedding them into Web pages (let’s call such a page the “embedding page”). Thus, the link analysis will actually return the pagerank for the embedding page - but not for the video itself!

Now, if the embedding page can actually be seen as representative for the video because the only reason that the webpage exists is to publish the video and its annotations, then the pagerank for the embedding page is actually the same as the pagerank for the video. This is the case for google video and for youtube and for many other hosting sites.

However, you and I mostly publish our videos in blogs or on Web pages that describe more than just the video - some will even have several videos embedded. This is where the chaos for a Web search engine for videos begins. And this is where the discoverability of your videos through video search engines ends.

Here is the solution.

Just as we do with normal Web pages, we have to introduce SEO (search engine optimisation) for videos. That means, we have to make it easier for the search engines to find out information about our videos, i.e. to index and rank them.

Because videos are binary data, a common Web search engine cannot extract information about this Web resource directly from it (let’s ignore signal analysis and automatic content analysis approaches for the moment). We have to help the search engine.

The solution is to have a text file sitting “next” to the actual video file which contains indexable text about the video. It will have all the annotations, meta data, tags, copyright information and other textual meta information that search engines require to index and rank it better. This text file is an indexable textual representation of the video.

So, whenever a video search engine reaches a video in a crawl, it will check out this text file for its indexing work. If this text file is HTML, then people may link directly to it and it will be included in the pagerank calculations again. If it is a XML file, there should be a simple way to transcode it to HTML, e.g. via a xslt script, so links can go there directly again.

So much for the theory: here comes the practice.

For every video file (and incidentally it would work for audio, too), you should start writing a CMML file and publish it on your Web server together with the original. Here is a xslt script that you can use to transcode CMML to HTML. If you actually use Ogg Theora as your Video publishing format, you can even publish Annodex videos and make direct access to the clips that you defined in CMML and to time offsets possible by using the Apache Annodex module. Try using it in your blog with the external embedding of the Annodex Firefox extension.

When we’ve done this, all that remains is to encourage the video search engines to exploit the CMML data in their crawls. :)

Flumotion is a streaming server product developed by Fluendo. Flumotion runs in a distributed environment, where the video capture, encoding, and transmission can be run on different computers, so the load can be better balanced.

I have found it rather difficult to find an introductory help on how to get flumotion set up and running, so I’ll share my insights with you here.

Imagine a setup where you want machine A to capture and encode the video from a DV camera, machine B relaying the stream onto the Internet to several clients, and machine C getting the stream off machine B and writing it to disk. The software that you’d need to run on each of these machines is the following:

1. Run flumotion-manager on machine B. flumotion-manager is the central component of a flumotion streaming setup, which connects up all the components and makes sure that everything works. It has to run before anything else can happen.
2. Run flumotion-worker on every machine where you want work to be done, i.e. on machine A, B, and C. The workers are demons that connect to the manager and wait for commands to do something.
3. Run flumotion-admin on any machine to set up the details of the flumotion streaming setup.

So, here are the commands, that I use to get it running using the default setup:

1. flumotion start (which will run flumotion-manager -D -n default /etc/flumotion/managers/default/planet.xml for you).
2. flumotion-worker -u pants -p off & (yes, these are the default user name and password :).
3. flumotion-admin (and go through the GUI setup wizard).

… and you should be up and going with either your DV camera, your Webcam or your TV tuner card. Watch the cute smileys go happy! And connect to the stream using your favorite media player that can decode Ogg Theora/Vorbis, e.g. totem, vlc, xine.

I’ve found online man pages of flumotion-manager, flumotion-worker, and flumotion-admin helpful, because the flumotion package that my Ubuntu dapper installation installed did not have them. You might actually be better off using Jeff Waugh’s packages for each of the flumotion commands if you are setting up on Ubuntu Dapper. Another hint: use the library theora-mmx to get better performance.

Flumotion is an excellent solution to setting up video streaming. I have found the following conferences have used it before:

• GUADEC, June 2006, http://guadec.org/GUADEC2006/Live
• DebConf, May 2006, http://technocrat.net/d/2006/5/12/3384
• Linux Audio Conference, May 2006, http://lac.zkm.de/2006/streaming.shtml
• Washington DC LUG, http://dclug.tux.org/webcast/
