My crazy linux.conf.au week

Digital Media, LCA, open codecs, Open Source, standards, video accessibility, , , , , ,

In January I attended the annual Australian Linux and Open Source conference (LCA). But since I was sick all of January and had a lot to catch up on, I never got around to sharing all the talks that I gave during that time.

Drupal Down Under

It started with a talk at Drupal Down Under, which happened the weekend before LCA. I gave a talk titled “HTML5 video specifications” (video, slides).

I spoke about the video and audio element in HTML5, how to provide fallback content, how to encode content, how to control them from JavaScript, and briefly about Drupal video modules, though the next presentation provided much more insight into those. I explained how to make the HTML5 media elements accessible, including accessible controls, captions, audio descriptions, and the new WebVTT file format. I ran out of time to introduce the last section of my slides which are on WebRTC.

Linux.conf.au

On the first day of LCA I gave a talk both in the Multimedia Miniconf and the Browser Miniconf.

Browser Miniconf

In the Browser Miniconf I talked about “Web Standardisation – how browser vendors collaborate, or not” (slides). Maybe the most interesting part about this was that I tried out a new slide “deck” tool called impress.js. I’m not yet sure if I like it but it worked well for this talk, in which I explained how the HTML5 spec is authored and who has input.

I also sat on a panel of browser developers in the Browser Miniconf (more as a standards than as a browser developer, but that’s close enough). We were asked about all kinds of latest developments in HTML5, CSS3, and media standards in the browser.

Multimedia Miniconf

In the Multimedia Miniconf I gave a “HTML5 media accessibility update” (slides). I talked about the accessibility problems of Flash, how native HTML5 video players will be better, about accessible video controls, captions, navigation chapters, audio descriptions, and WebVTT. I also provided a demo of how to synchronize multiple video elements using a polyfill for the multitrack API.

I also provided an update on HTTP adaptive streaming APIs as a lightning talk in the Multimedia Miniconf. I used an extract of the Drupal conference slides for it.

Main conference

Finally, and most importantly, Alice Boxhall and myself gave a talk in the main linux.conf.au titled “Developing Accessible Web Apps – how hard can it be?” (video, slides). I spoke about a process that you can follow to make your Web applications accessible. I’m writing a separate blog post to explain this in more detail. In her part, Alice dug below the surface of browsers to explain how the accessibility markup that Web developers provide is transformed into data structures that are handed to accessibility technologies.

adaptive HTTP streaming for open codecs

Digital Media, FOMS, open codecs, standards, , , , , , , , ,

At this week’s FOMS in New York we had one over-arching topic that seemed to be of interest to every single participant: how to do adaptive bitrate streaming over HTTP for open codecs. On the first day, there was a general discussion about the advantages and disadvantages of adaptive HTTP streaming, while on the second day, we moved towards designing a solution for Ogg and WebM. While I didn’t attend all the discussions, I want to summarize the insights that I took out of the days in this blog post and the alternative implementation strategies that were came up with.

Use Cases for Adaptive HTTP Streaming

Streaming using RTP/RTSP has in the past been the main protocol to provide live video streams, either for broadcast or for real-time communication. It has been purpose-built for chunked video delivery and has features that many customers want, such as the ability to encrypt the stream, to tell players not to store the data, and to monitor the performance of the stream such that its bandwidth can be adapted. It has, however, also many disadvantages, not least that it goes over ports that normal firewalls block and thus is rather difficult to deploy, but also that it requires special server software, a client that speaks the protocol, and has a signalling overhead on the transport layer for adapting the stream.

RTP/RTSP has been invented to allow for high quality of service video consumption. In the last 10 years, however, it has become the norm to consume “canned” video (i.e. non-live video) over HTTP, making use of the byte-range request functionality of HTTP for seeking. While methods have been created to estimate the size of a pre-buffer before starting to play back in order to achieve continuous playback based on the bandwidth of your pipe at the beginning of downloading, not much can be done when one runs out of pre-buffer in the middle of playback or when the CPU on the machine doesn’t manage to catch up with decoding of the sheer amount of video data: your playback stops to go into re-buffering in the first case and starts to become choppy in the latter case.

An obvious approach to improving this situation is the scale the bandwidth of the video stream down, potentially even switch to a lower resolution video, right in the middle of playback. Apple’s HTTP live streaming, Microsoft’s Smooth Streaming, and Adobe’s Dynamic Streaming are all solutions in this space. Also, ISO/MPEG is working on DASH (Dynamic Adaptive Streaming over HTTP) is an effort to standardize the approach for MPEG media. No solution yets exist for the open formats within Ogg or WebM containers.

Some features of HTTP adaptive streaming are:

  • Enables adaptation of downloading to avoid continuing buffering when network or machine cannot cope.
  • Gapless switching between streams of different bitrate.
  • No special server software is required – any existing Web Server can be used to provide the streams.
  • The adaptation comes from the media player that actually knows what quality the user experiences rather than the network layer that knows nothing about the performance of the computer, and can only tell about the performance of the network.
  • Adaptation means that several versions of different bandwidth are made available on the server and the client switches between them based on knowledge it has about the video quality that the user experiences.
  • Bandwidth is not wasted by downloading video data that is not being consumed by the user, but rather content is pulled moments just before it is required, which works both for the live and canned content case and is particularly useful for long-form content.

Viability

In discussions at FOMS it was determined that mid-stream switching between different bitrate encoded audio files is possible. Just looking at the PCM domain, it requires stitching the waveform together at the switch-over point, but that is not a complex function. To be able to do that stitching with Vorbis-encoded files, there is no need for a overlap of data, because the encoded samples of the previous window in a different bitrate page can be used as input into the decoding of the current bitrate page, as long as the resulting PCM samples are stitched.

For video, mid-stream switching to a different bitrate encoded stream is also acceptable, as long as the switch-over point adheres to a keyframe, which can be independently decoded.

Thus, the preparation of the alternative bitstream videos requires temporal synchronisation of keyframes on video – the audio can deal with the switch-over at any point. A bit of intelligent encoding is thus necessary – requiring the encoding pipeline to provide regular keyframes at a certain rate would be sufficient. Then, the switch-over points are the keyframes.

Technical Realisation

With the solutions from Adobe, Microsoft and Apple, the technology has been created such there are special tools on the server that prepare the content for adaptive HTTP streaming and provide a manifest of the prepared content. Typically, the content is encoded in versions of different bitrates and the bandwidth versions are broken into chunks that can be decoded independently. These chunks are synchronised between the different bitrate versions such that there are defined switch-over points. The switch-over points as well as the file names of the different chunks are documented inside a manifest file. It is this manifest file that the player downloads instead of the resource at the beginning of streaming. This manifest file informs the player of the available resources and enables it to orchestrate the correct URL requests to the server as it progresses through the resource.

At FOMS, we took a step back from this approach and analysed what the general possibilities are for solving adaptive HTTP streaming. For example, it would be possible to not chunk the original media data, but instead perform range requests on the different bitrate versions of the resource. The following options were identified.

Chunking

With Chunking, the original bitrate versions are chunked into smaller full resources with defined switch-over points. This implies creation of a header on each one of the chunks and thus introduces overhead. Assuming we use 10sec chunks and 6kBytes per chunk, that results in 5kBit/sec extra overhead. After chunking the files this way, we provide a manifest file (similar to Apple’s m3u8 file, or the SMIL-based manifest file of Microsoft, or Adobe’s Flash Media Manifest file). The manifest file informs the client about the chunks and the switch-over points and the client requests those different resources at the switch-over points.

Disadvantages:

  • Header overhead on the pipe.
  • Switch-over delay for decoding the header.
  • Possible problem with TCP slowstart on new files.
  • A piece of software is necessary on server to prepare the chunked files.
  • A large amount of files to manage on the server.
  • The client has to hide the switching between full resources.

Advantages:

  • Works for live streams, where increasing amounts of chunks are written.
  • Works well with CDNs, because mid-stream switching to another server is easy.
  • Chunks can be encoded such that there is no overlap in the data necessary on switch-over.
  • May work well with Web sockets.
  • Follows the way in which proprietary solutions are doing it, so may be easy to adopt.
  • If the chunks are concatenated on the client, you get chained Ogg files (similar concept in WebM?), which are planned to be supported by Web browsers and are thus legal files.

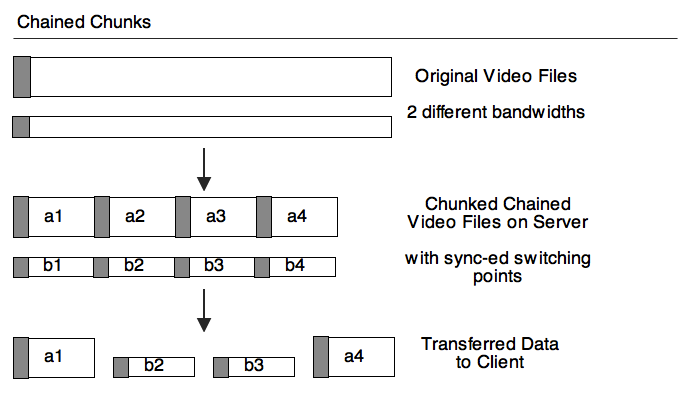

Chained Chunks

Alternatively to creating the large number of files, one could also just create the chained files. Then, the switch-over is not between different files, but between different byte ranges. The headers still have to be read and parsed. And a manifest file still has to exist, but it now points to byte ranges rather than different resources.

Advantages over Chunking:

  • No TCP-slowstart problem.
  • No large number of files on the server.

Disadvantages over Chunking:

  • Mid-stream switching to other servers is not easily possible – CDNs won’t like it.
  • Doesn’t work with Web sockets as easily.
  • New approach that vendors will have to grapple with.

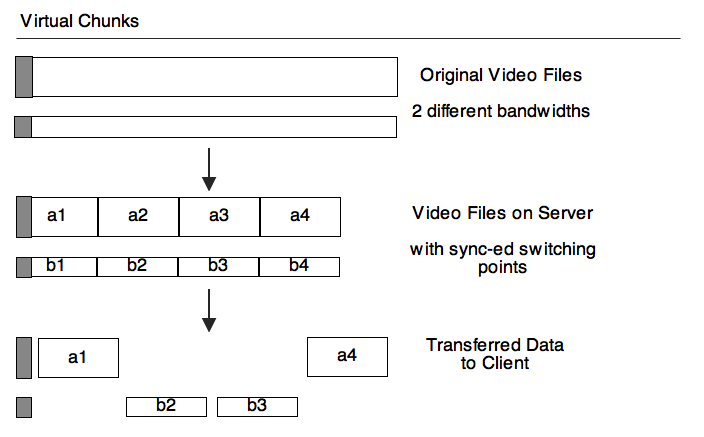

Virtual Chunks

Since in Chained Chunks we are already doing byte-range requests, it is a short step towards simply dropping the repeating headers and just downloading them once at the beginning for all possible bitrate files. Then, as we seek to different positions in “the” file, the byte range of the bitrate version that makes sense to retrieve at that stage would be requested. This could even be done with media fragment URIs, through addressing with time ranges is less accurate than explicit byte ranges.

In contrast to the previous two options, this basically requires keeping n different encoding pipelines alive – one for every bitrate version. Then, the byte ranges of the chunks will be interpreted by the appropriate pipeline. The manifest now points to keyframes as switch-over points.

Advantage over Chained Chunking:

  • No header overhead.
  • No continuous re-initialisation of decoding pipelines.

Disadvantages over Chained Chunking:

  • Multiple decoding pipelines need to be maintained and byte ranges managed for each.

Unchunked Byte Ranges

We can even consider going all the way and not preparing the alternative bitrate resources for switching, i.e. not making sure that the keyframes align. This will then require the player to do the switching itself, determine when the next keyframe comes up in its current stream then seek to that position in the next stream, always making sure to go back to the last keyframe before that position and discard all data until it arrives at the same offset.

Disadvantages:

  • There will be an overlap in the timeline for download, which has to be managed from the buffering and alignment POV.
  • Overlap poses a challenge of downloading more data than necessary at exactly the time where one doesn’t have bandwidth to spare.
  • Requires seeking.
  • Messy.

Advantages:

  • No special authoring of resources on the server is needed.
  • Requires a very simple manifest file only with a list of alternative bitrate files.

Final concerns

At FOMS we weren’t able to make a final decision on how to achieve adaptive HTTP streaming for open codecs. Most agreed that moving forward with the first case would be the right thing to do, but the sheer number of files that can create is daunting and it would be nice to avoid that for users.

Other goals are to make it work in stand-alone players, which means they will need to support loading the manifest file. And finally we want to enable experimentation in the browser through JavaScript implementation, which means there needs to be an interface to provide the quality of decoding to JavaScript. Fortunately, a proposal for such a statistics API already exists. The number of received frames, the number of dropped frames, and the size of the video are the most important statistics required.

VP8/WebM: Adobe is the key to open video on the Web

Digital Media, open codecs, Open Source, standards, , , , , , , , ,

Google have today announced the open sourcing of VP8 and the creation of a new media format WebM.

Technical Challenges

As I predicted earlier, Google had to match VP8 with an audio codec and a container format – their choice was a subpart of the Matroska format and the Vorbis codec. To complete the technical toolset, Google have:

  • developed ffmpeg patches, so an open source encoding tool for WebM will be available
  • developed GStreamer and DirectShow plugins, so players that build on these frameworks will be able to decode WebM,
  • and developed an SDK such that commercial partners can implement support for WebM in their products.

This has already been successful and several commercial software products are already providing support for WebM.

Google haven’t forgotten the mobile space either – a bunch of Hardware providers are listed as supporters on the WebM site and it can be expected that developments have started.

The speed of development of software and hardware around WebM is amazing. Google have done an amazing job at making sure the technology matures quickly – both through their own developments and by getting a substantial number of partners included. That’s just the advantage of being Google rather than a Xiph, but still an amazing achievement.

Browsers

As was to be expected, Google managed to get all the browser vendors that are keen to support open video to also support WebM: Chrome, Firefox and Opera all have come out with special builds today that support WebM. Nice work!

What is more interesting, though, is that Microsoft actually announced that they will support WebM in future builds of IE9 – not out of the box, but on systems where the codec is already installed. Technically, that is be the same situation as it will be for Theora, but the difference in tone is amazing: in this blog post, any codec apart from H.264 was condemned and rejected, but the blog post about WebM is rather positive. It signals that Microsoft recognize the patent risk, but don’t want to be perceived of standing in the way of WebM’s uptake.

Apple have not yet made an announcement, but since it is not on the list of supporters and since all their devices exclusively support H.264 it stands to expect that they will not be keen to pick up WebM.

Publishers

What is also amazing is that Google have already achieved support for WebM by several content providers. The first of these is, naturally, YouTube, which is offering a subset of its collection also in the WebM format and they are continuing to transcode their whole collection. Google also has Brightcov, Ooyala, and Kaltura on their list of supporters, so content will emerge rapidly.

Uptake

So, where do we stand with respect to a open video format on the Web that could even become the baseline codec format for HTML5? It’s all about uptake – if a substantial enough ecosystem supports WebM, it has all chances of becoming a baseline codec format – and that would be a good thing for the Web.

And this is exactly where I have the most respect for Google. The main challenge in getting uptake is in getting the codec into the hands of all people on the Internet. This, in particular, includes people working on Windows with IE, which is still the largest browser from a market share point of view. Since Google could not realistically expect Microsoft to implement WebM support into IE9 natively, they have found a much better partner that will be able to make it happen – and not just on Windows, but on many platforms.

Yes, I believe Adobe is the key to creating uptake for WebM – and this is admittedly something I have completely overlooked previously. Adobe has its Flash plugin installed on more than 90% of all browsers. Most of their users will upgrade to a new version very soon after it is released. And since Adobe Flash is still the de-facto standard in the market, it can roll out a new Flash plugin version that will bring WebM codec support to many many machines – in particular to Windows machines, which will in turn enable all IE9 users to use WebM.

Why would Adobe do this and thus cement its Flash plugin’s replacement for video use by HTML5 video? It does indeed sound ironic that the current market leader in online video technology will be the key to creating an open alternative. But it makes a lot of sense to Adobe if you think about it.

Adobe has itself no substantial standing in codec technology and has traditionally always had to license codecs. Adobe will be keen to move to a free codec of sufficient quality to replace H.264. Also, Adobe doesn’t earn anything from the Flash plugins themselves – their source of income are their authoring tools. All they will need to do to succeed in a HTML5 WebM video world is implement support for WebM and HTML5 video publishing in their tools. They will continue to be the best tools for authoring rich internet applications, even if these applications are now published in a different format.

Finally, in the current hostile space between Apple and Adobe related to the refusal of Apple to allow Flash onto its devices, this may be the most genius means of Adobe at getting back at them. Right now, it looks as though the only company that will be left standing on the H.264-only front and outside the open WebM community will be Apple. Maybe implementing support for Theora wouldn’t have been such a bad alternative for Apple. But now we are getting a new open video format and it will be of better quality and supported on hardware. This is exciting.

IP situation

I cannot, however, finish this blog post on a positive note alone. After reading the review of VP8 by a x.264 developer, it seems possible that VP8 is infringing on patents that are outside the patent collection that Google has built up in codecs. Maybe Google have calculated with the possibility of a patent suit and put money away for it, but Google certainly haven’t provided indemnification to everyone else out there. It is a tribute to Google’s achievement that given a perceived patent threat – which has been the main inhibitor of uptake of Theora – they have achieved such an uptake and industry support around VP8. Hopefully their patent analysis is sound and VP8 is indeed a safe choice.

UPDATE (22nd May): After having thought about patents and the situation for VP8 a bit more, I believe the threat is really minimal. You should also read these thoughts of a Gnome developer, these of a Debian developer and the emails on the Theora mailing list.

Google’s challenges of freeing VP8

Digital Media, open codecs, Open Source, standards, , , , , , , ,

Since On2 Technology’s stockholders have approved the merger with Google, there are now first requests to Google to open up VP8.

I am sure Google is thinking about it. But … what does “it” mean?

Freeing VP8
Simply open sourcing it and making it available under a free license doesn’t help. That just provides open source code for a codec where relevant patents are held by a commercial entity and any other entity using it would still need to be afraid of using that technology, even if it’s use is free.

So, Google has to make the patents that relate to VP8 available under an irrevocable, royalty-free license for the VP8 open source base, but also for any independent implementations of VP8. This at least guarantees to any commercial entity that Google will not pursue them over VP8 related patents.

Now, this doesn’t mean that there are no submarine or unknown patents that VP8 infringes on. So, Google needs to also undertake an intensive patent search on VP8 to be able to at least convince themselves that their technology is not infringing on anyone else’s. For others to gain that confidence, Google would then further have to indemnify anyone who is making use of VP8 for any potential patent infringement.

I believe – from what I have seen in the discussions at the W3C – it would only be that last step that will make companies such as Apple have the confidence to adopt a “free” codec.

An alternative to providing indemnification is the standardisation of VP8 through an accepted video standardisation body. That would probably need to be ISO/MPEG or SMPTE, because that’s where other video standards have emerged and there are a sufficient number of video codec patent holders involved that a royalty-free publication of the standard will hold a sufficient number of patent holders “under control”. However, such a standardisation process takes a long time. For HTML5, it may be too late.

Technology Challenges
Also, let’s not forget that VP8 is just a video codec. A video codec alone does not encode a video. There is a need for an audio codec and a encapsulation format. In the interest of staying all open, Google would need to pick Vorbis as the audio codec to go with VP8. Then there would be the need to put Vorbis and VP8 in a container together – this could be Ogg or MPEG or QuickTime’s MOOV. So, apart from all the legal challenges, there are also technology challenges that need to be mastered.

It’s not simple to introduce a “free codec” and it will take time!

Google and Theora
There is actually something that Google should do before they start on the path of making VP8 available “for free”: They should formulate a new license agreement with Xiph (and the world) over VP3 and Theora. Right now, the existing license that was provided by On2 Technologies to Theora (link is to an early version of On2’s open source license of VP3) was only for the codebase of VP3 and any modifications of it, but doesn’t in an obvious way apply to an independent re-implementations of VP3/Theora. The new agreement between Google and Xiph should be about the patents and not about the source code. (UPDATE: The actual agreement with Xiph apparently also covers re-implementations – see comments below.)

That would put Theora in a better position to be universally acceptable as a baseline codec for HTML5. It would allow, e.g. Apple to make their own implementation of Theora – which is probably what they would want for ipods and iphones. Since Firefox, Chrome, and Opera already support Ogg Theora in their browsers using the on2 licensed codebase, they must have decided that the risk of submarine patents is low. So, presumably, Apple can come to the same conclusion.

Free codecs roadmap
I see this as the easiest path towards getting a universally acceptable free codec. Over time then, as VP8 develops into a free codec, it could become the successor of Theora on a path to higher quality video. And later still, when the Internet will handle large resolution video, we can move on to the BBC’s Dirac/VC2 codec. It’s where the future is. The present is more likely here and now in Theora.


ADDITION:
Please note the comments from Monty from Xiph and from Dan, ex-On2, about the intent that VP3 was to be completely put into the hands of the community. Also, Monty notes that in order to implement VP3, you do not actually need any On2 patents. So, there is probably not a need for Google to refresh that commitment. Though it might be good to reconfirm that commitment.


ADDITION 10th April 2010:
Today, it was announced that Google put their weight behind the Theorarm implementation by helping to make it BSD and thus enabling it to be merged with Theora trunk. They also confirm on their blog post that Theora is “really, honestly, genuinely, 100% free”. Even though this is not a legal statement, it is good that Google has confirmed this.

Accessibility support in Ogg and liboggplay

code, Digital Media, FOMS, LCA, open codecs, Open Source, standards, video accessibility, , , , , , , , , ,

At the recent FOMS/LCA in Wellington, New Zealand, we talked a lot about how Ogg could support accessibility. Technically, this means support for multiple text tracks (subtitles/captions), multiple audio tracks (audio descriptions parallel to main audio track), and multiple video tracks (sign language video parallel to main video track).

Creating multitrack Ogg files
The creation of multitrack Ogg files is already possible using one of the muxing applications, e.g. oggz-merge. For example, I have my own little collection of multitrack Ogg files at http://annodex.net/~silvia/itext/elephants_dream/multitrack/. But then you are stranded with files that no player will play back.

Multitrack Ogg in Players
As Ogg is now being used in multiple Web browsers in the new HTML5 media formats, there are in particular requirements for accessibility support for the hard-of-hearing and vision-impaired. Either multitrack Ogg needs to become more of a common case, or the association of external media files that provide synchronised accessibility data (captions, audio descriptions, sign language) to the main media file needs to become a standard in HTML5.

As it turn out, both these approaches are being considered and worked on in the W3C. Accessibility data that are audio or video tracks will in the near future have to come out of the media resource itself, but captions and other text tracks will also be available from external associated elements.

The availability of internal accessibility tracks in Ogg is a new use case – something Ogg has been ready to do, but has not gone into common usage. MPEG files on the other hand have for a long time been used with internal accessibility tracks and thus frameworks and players are in place to decode such tracks and do something sensible with them. This is not so much the case for Ogg.

For example, a current VLC build installed on Windows will display captions, because Ogg Kate support is activated. A current VLC build on any other platform, however, has Ogg Kate support deactivated in the build, so captions won’t display. This will hopefully change soon, but we have to look also beyond players and into media frameworks – in particular those that are being used by the browser vendors to provide Ogg support.

Multitrack Ogg in Browsers
Hopefully gstreamer (which is what Opera uses for Ogg support) and ffmpeg (which is what Chrome uses for Ogg support) will expose all available tracks to the browser so they can expose them to the user for turning on and off. Incidentally, a multitrack media JavaScript API is in development in the W3C HTML5 Accessibility Task Force for allowing such control.

The current version of Firefox uses liboggplay for Ogg support, but liboggplay’s multitrack support has been sketchy this far. So, Viktor Gal – the liboggplay maintainer – and I sat down at FOMS/LCA to discuss this and Viktor developed some patches to make the demo player in the liboggplay package, the glut-player, support the accessibility use cases.

I applied Viktor’s patch to my local copy of liboggplay and I am very excited to show you the screencast of glut-player playing back a video file with an audio description track and an English caption track all in sync:

elephants_dream_with_audiodescriptions_and_captions

Further developments
There are still important questions open: for example, how will a player know that an audio description track is to be played together with the main audio track, but a dub track (e.g. a German dub for an English video) is to be played as an alternative. Such metadata for the tracks is something that Ogg is still missing, but that Ogg can be extended with fairly easily through the use of the Skeleton track. It is something the Xiph community is now working on.

Summary
This is great progress towards accessibility support in Ogg and therefore in Web browsers. And there is more to come soon.

Video Streaming from Linux.conf.au

Digital Media, FOMS, LCA, open codecs, Open Source, standards, , , , , , ,

You probably heard it already: Linux.conf.au is live streaming its video in a Microsoft proprietary format.

Fortunately, there is now a re-broadcast that you can get in an open format from http://stream.v2v.cc:8000/ . It comes from a server in Europe, but relies on transcoding here in New Zealand, so it may not be completely reliable.

UPDATE: A second server is now also available from the US at http://repeater.xiph.org:8000/.

Today, the down under open source / Linux conference linux.conf.au in Wellington started with the announcement that every talk and mini-conf will be live streamed to the Internet and later published online. That’s an awesome achievement!

However, minutes after the announcement, I was very disappointed to find out that the streams are actually provided in a proprietary format and through a proprietary streaming protocol: a Microsoft streaming service that provides Windows media streams.

Why stream an open source conference in a proprietary format with proprietary software? If we cannot use our own technologies for our own conferences, how will we get the rest of the world to use them?

I must say, I am personally embarrassed, because I was part of several audio/video teams of previous LCAs that have managed to record and stream content in open formats and with open media software. I would have helped get this going, but wasn’t aware of the situation.

I am also the main organiser of the FOMS Workshop (Foundations of Open Media Software) that ran the week before LCA and brought some of the core programmers in open media software into Wellington, most of which are also attending LCA. We have the brains here and should be able to get this going.

Fortunately, the published content will be made available in Ogg Theora/Vorbis. So, it’s only the publicly available stream that I am concerned about.

Speaking with the organisers, I can somewhat understand how this came to be. They took the “easy” way of delegating the video work to an external company. Even though this company is an expert in open source and networking, their media streaming customers are all using Flash or Windows media software, which are current de-facto standards and provide extra features such as DRM. It seems apart from linux.conf.au there were no requests on them for streaming Ogg Theora/Vorbis yet. Their existing infrastructure includes CDN distribution and CDN providers certainly typically don’t provide Ogg Theora/Vorbis support or Icecast streaming.

So, this is actually a problem founded in setting up streaming through a professional service rather than through the community. The way in which this was set up at other events was to get together a group of volunteers that provided streaming reflectors for free. In this way, a community-created CDN is built that can deal with the streams. That there are no professional CDN providers available yet that provide Icecast support is a sign that there is a gap in the market.

But phear not – a few of the FOMS folk got together to fix the situation.

It involved setting up Icecast streams for each room’s video stream. Since there is no access to the raw video stream, there is a need to transcode the video from proprietary codecs to the open Ogg Theora/Vorbis format.

To do this legally, a purchase of the codec libraries from Fluendo was necessary, which cost a whopping EURO 28 and covers all the necessary patent licenses. The glue to get the videos from mms to icecast streams is a GStreamer pipeline which I leave others to talk about.

Now, we have all the streams from the conference available as Ogg Theora/Video streams, we can also publish them in HTML5 video elements. Check out this Web page which has all the video streams together on a single page. Note that the connections may be a bit dodgy and some drop-outs may occur.

Further, let me recommend the Multimedia Miniconf at linux.conf.au, which will take place tomorrow, Tuesday 19th January. The Miniconf has decided to add a talk about “How to stream you conference with open codecs” to help educate any potential future conference organisers and point out the software that helps solve these issues.

UPDATE: I should have stated that I didn’t actually do any of the technical work: it was all done by Ralph Giles, Jan Gerber, and Jan Schmidt.

Video as an enabler for broadband applications

Digital Media, open codecs, Open Source, random, video accessibility, , , , , , , ,

Last week, I gave a brief statement on the importance of video as an enabler for broadband applications at the Public Sphere event of Senator Kate Lundy.

I found it really difficult to summarize all the things that I find important about video technology in a modern distributed online world in a 10 min speech. Therefore, I’d like to extend on some of the key points that I was trying to make in this blog post.

Video provides presence

One of the biggest problems we have with the online world is that it mostly still evolves around text. To exchange information with others, to publish, to chat (email, irc or twitter) or do our work, we mostly still rely on the written word as a communication means. However, we all know how restrictive this is – everyone who has ever seen a flame war develop on a mailing list, a friendship break over a badly formulated email, a host of negative comments posted on a mis-formulated blog post, or a twitter storm explode over a misunderstanding knows that text is very hard to get right. Lacking any sort of personal expression supporting the expressed words (other than the occasional emoticon), sentences can be read or interpreted in the wrong way.

A phone call (or skype call) is better than text: how often have you exchanged 10 or even 20 emails with a friend to e.g. arrange to meet for a beer, when a simple phone call would have solved it within seconds. But even a phone call provides a reduced set of communication channels in comparison to a personal meeting: gesture, posture, mime and motion are there to enrich communication channels and help us understand the other better. Just think about the cognitive challenges in a phone conference in comparison to the ease of speaking to people when you see them.

With communication that uses video, we have a much higher communication “bandwidth” between people, i.e. a lot less has to be actually said in words so we can understand each other, because gesture, posture, mime and motion speak for us, too. While we cannot touch each other in a video communication, e.g. for shaking hands or kissing cheeks, video provides for all these other channels of communication providing a much higher perceived feeling of “presence” to the remote person or people. When my son speaks over skype with my family in Germany, and we cannot turn on the web cam because the bandwidth and latency are too poor, he loses interest very quickly in speaking to these “soul-less” voices.

The availability of bandwidth will make it possible for humans to communicate with each other at a more natural level, feeling more engaged and involved. This has implications not just on immediate communications, such as person-to-person calls or video conferences, but on any application that requires the interaction of people.

Video requirements are the block to create new applications

Bandwidth requirements for most online applications are pretty low. Consider for example a remote surgery where a surgical expert on one end operates on a patient at a remote location with surgical staff and operating equipment. The actual data that needs to be exchanged between the surgeon and the operating machines is fairly low – they are mostly command-control data that has to be delivered at high accuracy and low delay, but does not require high bandwidth. What turns such a remote surgery scenario into a challenge with existing networks are the requirements for multiple video channels – the surgeon needs to be visible to the staff and probably to the patient – in turn, the surgeon needs to see the staff, needs to see the patient from multiple angles to gain the full picture, needs to see the supporting documents such as X-rays, schedules, blood analysis etc, and of course he needs to see the video coming from the operating equipment possibly from within the patient that gives him feedback on the actual operation.

As you can see, it is video that creates the need for high bandwidth.

This is not restricted to medical applications. Almost all new remote applications that we create end up having a huge visual requirement with multiple video streams. This is natural, since almost all remote applications involve more than one person and each person has the capability to look into different directions. Thus, the presence of each person has to be replicated and the representation of the environment has to be replicated.

Even in a simple scenario such as a video conference, a single camera and microphone are very restrictive and do not provide the ability to every participant to interact with any of the other people present, but restrict them to the person/group that the camera is currently focused on. Back channels such as affirmative side chats or mimic exchanges of opinion are lost. Multiple video channels can make up for this.

In my experience from the many projects I have been somewhat involved with over the years that tried to develop new remote applications – teleteaching at Mannheim University or the CeNTIE project at CSIRO – video is the bandwidth-needy channel, but video is not the main purpose of the application. Rather, the needs for information for the involved people are what drives the setup of the data and communication channels for a particular application.

Immediately, applications in the following areas come to mind that will be enabled through broadband:

  • education: remote lectures, remote seminars, remote tutoring, remote access to research text/data
  • health: remote surgery, remote expert visits, remote patient monitoring
  • business: remote workplace, remote person-to-person collaboration with data sharing and visualisation, remote water-cooler conversations, remote team presence
  • entertainment: remote theatre/concert/opera visit, home cinema, high-quality video-on-demand

But ultimately, there is impact into all aspects of our lives: consider e.g. the new possibilities for citizen involvement in politics with remote video technology, or collaborative remote video editing in video production, or in sports for data collection. Simply ask yourself “what would I do differently if I had unlimited bandwidth?” and I’m sure you will come up with at least another 2 or 3 new applications in your field of expertise that have not been mentioned before.

Technical challenges

Video (with audio) is an inherently volatile data stream that is highly sensitive to specific kinds of networking issues.

End-to-end delays such as are typical with satellite-based connections destroy the feeling of presence and create at best awkward communications, at worst destructive feedback-loops in live operations. Unfortunately, there is a natural limit to the speed in which data can flow between two points. Given that the largest distance between two points on earth is approx 20,000 km and the speed of light is approx 300,000 km/s, a roundtrip must take at least 133ms. Considering that humans can detect a delay as small as 10ms in a remote communication and are really put off by a delay of 100ms, this is a technical challenge that we will find hard to overcome. It shows, however, that it is a technical requirement to minimize end-to-end dealys as much as possible.

Packet jitter is another challenge that video deals with badly. In networks, packets cannot easily be guaranteed to arrive at a certain required rate. For example, video needs to play back at a fixed picture rate (typically 25 frames per second) for humans to be able to view it as smooth motion. Whether video is transferred live or from a file, video packets are required to arrive at a certain rate such that the pictures can be decoded and displayed at the expected rate. The variance in delay of packets arriving because of network congestion is called packet jitter. If packet jitter is high, the video will either have to stop and buffer packets until enough video frames have arrived for it to display again, or it will have to drop packets and therefore video frames to keep in sync with a live stream. Typically the biggest problem of dropping packets is the drop-out of audio – while we can tolerate some drop-outs in video, audio drop-outs are unacceptable to maintain a conversation.

In most of the application scenarios, there is a varying need for video quality.

For example, a head shot of a person that is required for communication doesn’t need high-quality video – it is sufficient if the person can be seen and the communication can be held. The audio resolution can be telephone quality (i.e. 8kHz audio sampling rate) and the video can be highly compressed and at a smallish resolution (e.g. 320×240 px) giving standard skype quality video which requires about 400Kbps in bandwidth.

At the other end of the scale are e.g. medical and large-screen applications where a high sound quality is required e.g. to hear heart beats properly (i.e. 48-96kHz audio sampling rate) and the video can’t be compressed (much) so as not to introduce artifacts, which gives at a high HDTV resolution of e.g. 1920x1080px bandwidth requirements of 30Mbps compressed – uncompressed would be about triple that.

So, depending on the tolerance of the application to picture size, compression artifacts, and the number of parallel video streams required, bandwidth requirements for video can be relatively low or really high.

Further technical issues around video are that online video can be handled differently to analog video. The video can have all sorts of metadata associated with it – it can have hyperlinks to other content – it can be accompanied by advertising in more flexible ways – and it can be automatically personalised towards the needs of the individual viewers, just to name a few rich functions of online video. It is here where a lot of new ideas for monetisation will evolve.

Non-technical challenges

Apart from technical challenges, the use of video also creates issues in other dimensions.

People are worried about their behaviour as it is always potentially recorded and thus may not perform their duties with the same focus and concentration as is necessary.

People are worried about video connections always being potentially enabled and thus having potentially a remote listener/viewer that is unwanted.

On top of such privacy issues come issues in data security as increasingly data is distributed remotely.

We should also not forget that there are people that have varying requirements for their communication. A large challenge for such new applications will be to make them accessible. For example the automated creation of captions for remote video communication may well turn out to be a major challenge, but also an opportunity for later archiving and search.

When looking at the expected move of professional video content from TV to online, there are more issues about copyrighted content and usage rights – mostly this has to do with legacy content where online use was not considered in licensing agreements. This is a large inhibitor e.g. for Australia in creating a Hulu-like service.

In fact, monetisation is a huge issue, since video is not cheap: there is a cost in the development of applications, there is a cost in bandwidth, in storage, and a cost in content production that has to be covered somewhere. Simply expecting the user to pay for being online and then to pay again for each separate application, potentially subscribing to a multitude of services, may not be the best way to cope with the cost. Advertising will certainly play a big role in the monetisation mix and new forms of advertising will emerge, such as personalised permission-based advertising based on the information available about a person e.g. through their Google searches.

In this context, the measurement of the use of video in bandwidth, storage and as part of an application will be a big enabler towards figuring out how to pay for all the involved expenditure and what new monetisation models to come up with.

Further in the context of cost and monetisation it should be added that the use of open source software, in particular open source video technology such as open codecs can help bring down cost while at the same time create more interoperability. For example, if Skype used an open codec and open protocols rather than their proprietary technology, other applications could be built using the skype infrastructure and user base.

Approach to developing good new applications

These are just the challenges for video streams themselves. However, in new applications, video streams will just be a tool for creating an integral application, ultimately driven by the processes and data needs of the application. The creation of all the other parts of the application – the machinery, control panels, the data pools, the processes, the human interface, security and privacy measures etc – are what make up the product challenge. A product ultimately has to function in a way that makes it a usable tool in achieving a certain outcome. Unless the use of the product becomes natural and the distance disappears from the minds of the people involved, a remote application does not succeed.

The CeNTIE project, the approach towards the development of new remote applications was to assume no limits on available bandwidth. Then a challenge would be identified in an application area, e.g. in the medical space, and a prototype would be built with lots of input from the domain experts. Then the prototype would actually be deployed into a real working situation and tested. The feedback from the domain experts would be used to improve the application with further technology and improved processes. Ultimately, a usable setup would emerge, which was then ready to be turned into a product for commercialisation.

We have the capabilities here in Australia to develop world-class new applications on high-bandwidth networks. We need to support this further with bandwidth – hopefully the NBN will achieve this. But we also need to support this further with commercialisation support – unfortunately most of the applications that I saw being developed at the CSIRO never made it past the successful prototype. But this is fodder for another blog post at a different time.

Finally, I’d like to point out that we also have a large challenge in overcoming tradition. Most of us would be challenged to trust a doctor and his equipment for doing a surgical operation on our body from a remote location. There are issues of trust and culture involved that may take us a while to deal with and accept.

UPDATE (11/6/09): It seems that CISCO’s latest report, which predicts global IP traffic to increase 5-fold over the next 3 years, agrees with the analysis that most of this increase will be caused by video.

Professional Tool support for open media codecs

Digital Media, Open Source, ,

Michael Dale from Metavid has posted an article on why we are about to hit the tipping point for professional video producers to move to open media codecs. His statement is that it’s not just because the H.264 licensing grace period is about to end, but has a lot to do with the support that open media codecs are increasingly seeing on the Web, where the next big professional video market will happen. I totally agree.

The increasing amount of open tools on the Web for open codecs was all stimulated by the HTML5 <video> element and is based on year-long efforts that have gone into Annodex and applications using Annodex technology such as Metavid. There is now Firefox 3.1’s native support for Ogg Theora/Vorbis through liboggplay, there is the mod_annodex Apache plugin and the oggzchop CGI tool to serve time ranges of Ogg media over HTTP from Web Servers, there is the new firefogg Firefox Ogg Theora/Vorbis encoding plugin, and this all closes the tool-chain from encoding to publishing to viewing.

Native editing of Ogg Theora/Vorbis video is still a challenge, but any professional video producer will not want to move away from their favorite tool for editing video anyway, so it is a matter of having an export function included into these professional editors. While such export functions will take some time to emerge in these proprietary editors, the use of ffmpeg2theora and similar transcoding tools will be perfectly sufficient to fulfill these needs.

If you want to see why open source codecs and open video technology make such a difference, just go and check out Metavid, the best software around for wiki-style editing of time-aligned annotations for long-form video. I look forward to all the cool new applications that will emerge with open media software on the Web – applications that are not possible with proprietary video technology because of their lack of flexibility, interoperability, and adaptability.
